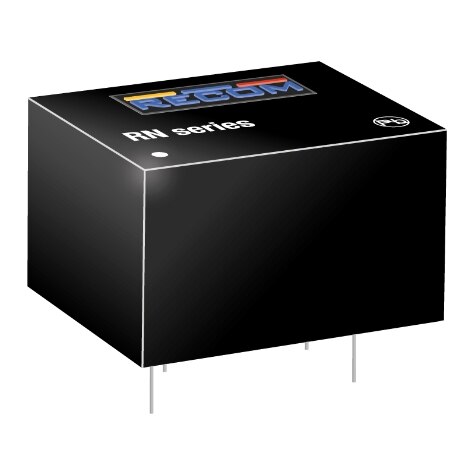

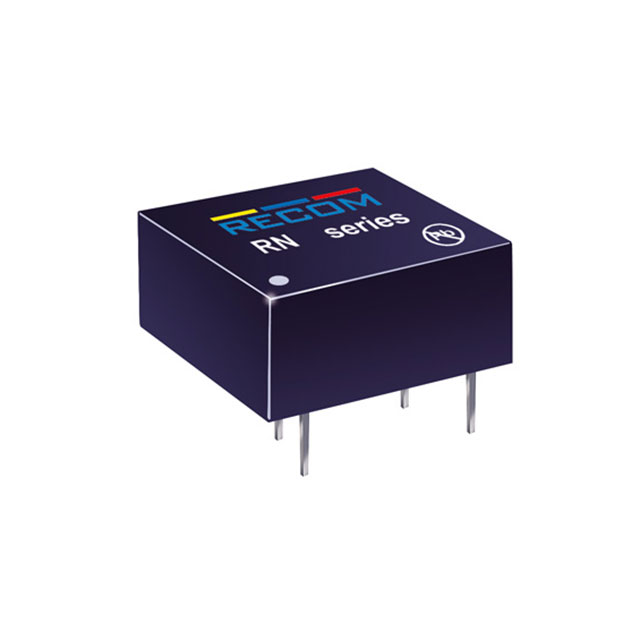

RN Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1.25W DC/DC 2KV UNREG 24VIN 15VOUT
| Part | Type | Efficiency | Voltage - Input (Max) [Max] | Package / Case | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Features | Voltage - Isolation | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Output 1 | Power (Watts) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | Isolated Module | 84 % | 26.4 V | 8-DIP Module 4 Leads | 12.8 mm | 7.6 mm | 10.1 mm | 0.5 " | 0.3 in | 0.4 " | 84 mA | 21.6 V | SCP | 2000 V | 1 | 85 °C | -40 C | ITE (Commercial) | 15 V | 1.25 W | Through Hole |
Recom Power | Isolated Module | 84 % | 3.63 V | 8-DIP Module 4 Leads | 12.8 mm | 7.6 mm | 10.1 mm | 0.5 " | 0.3 in | 0.4 " | 84 mA | 2.97 V | SCP | 1000 V | 1 | 85 °C | -40 C | ITE (Commercial) | 15 V | 1.25 W | Through Hole |
Recom Power | Isolated Module | 85 % | 5.5 V | 8-DIP Module 4 Leads | 12.8 mm | 7.6 mm | 10.1 mm | 0.5 " | 0.3 in | 0.4 " | 52 mA | 4.5 V | SCP | 2000 V | 1 | 85 °C | -40 C | ITE (Commercial) | 24 V | 1.25 W | Through Hole |
Recom Power | Isolated Module | 75 % | 13.2 V | 8-DIP Module 4 Leads | 12.8 mm | 7.6 mm | 10.1 mm | 0.5 " | 0.3 in | 0.4 " | 180 mA | 10.8 V | SCP | 2000 V | 1 | 85 °C | -40 C | ITE (Commercial) | 7 V | 1.25 W | Through Hole |
Recom Power | Isolated Module | 85 % | 13.2 V | 8-DIP Module 4 Leads | 12.8 mm | 7.6 mm | 10.1 mm | 0.5 " | 0.3 in | 0.4 " | 52 mA | 10.8 V | SCP | 2000 V | 1 | 85 °C | -40 C | ITE (Commercial) | 24 V | 1.25 W | Through Hole |
 Recom Power | Isolated Module | 75 % | 16.5 V | 8-DIP Module 4 Leads | 12.8 mm | 7.6 mm | 10.1 mm | 0.5 " | 0.3 in | 0.4 " | 180 mA | 13.5 V | SCP | 2000 V | 1 | 85 °C | -40 C | ITE (Commercial) | 7 V | 1.25 W | Through Hole |
Recom Power | Isolated Module | 85 % | 26.4 V | 8-DIP Module 4 Leads | 12.8 mm | 7.6 mm | 10.1 mm | 0.5 " | 0.3 in | 0.4 " | 52 mA | 21.6 V | SCP | 2000 V | 1 | 85 °C | -40 C | ITE (Commercial) | 24 V | 1.25 W | Through Hole |
Recom Power | Isolated Module | 84 % | 3.63 V | 8-DIP Module 4 Leads | 12.8 mm | 7.6 mm | 10.1 mm | 0.5 " | 0.3 in | 0.4 " | 84 mA | 2.97 V | SCP | 2000 V | 1 | 85 °C | -40 C | ITE (Commercial) | 15 V | 1.25 W | Through Hole |
Recom Power | Isolated Module | 85 % | 3.63 V | 8-DIP Module 4 Leads | 12.8 mm | 7.6 mm | 10.1 mm | 0.5 " | 0.3 in | 0.4 " | 52 mA | 2.97 V | SCP | 2000 V | 1 | 85 °C | -40 C | ITE (Commercial) | 24 V | 1.25 W | Through Hole |
Recom Power | Isolated Module | 80 % | 3.63 V | 8-DIP Module 4 Leads | 12.8 mm | 7.6 mm | 10.1 mm | 0.5 " | 0.3 in | 0.4 " | 140 mA | 2.97 V | SCP | 1000 V | 1 | 85 °C | -40 C | ITE (Commercial) | 9 V | 1.25 W | Through Hole |
