BRDS Series

Non-Isolated DC/DC Converters 4.5-14Vin 0.6-1.8V 120A Non Iso POL

Manufacturer: Cosel USA, Inc.

Catalog

Non-Isolated DC/DC Converters 4.5-14Vin 0.6-1.8V 120A Non Iso POL

Catalog

Non-Isolated DC/DC Converters 4.5-14Vin 0.6-1.8V 120A Non Iso POL

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Type	Current - Output (Max) [Max]	Features	Number of Outputs	Approval Agency	Voltage - Input (Max) [Max]	Package / Case	Efficiency	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Applications	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package

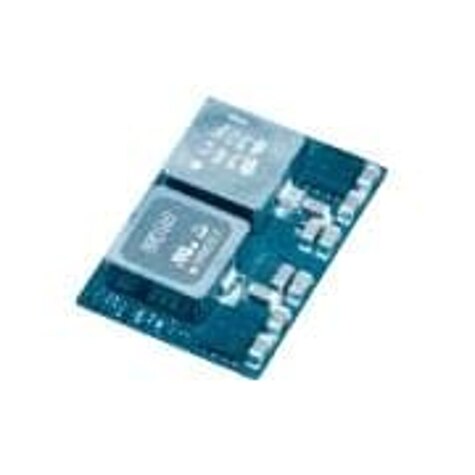

Cosel USA, Inc. BRDS150	38 mm	0.54 "	1.09 "	27.7 mm	13.8 mm	1.5 in	Surface Mount	-40 °C	85 °C	Non-Isolated PoL Module	150 A	Adjustable Output Remote Sense	1	CE cURus TUV	14 V	26-SMD Module	89 %	0.6 V	1.8 V	ITE (Commercial)	4.5 V

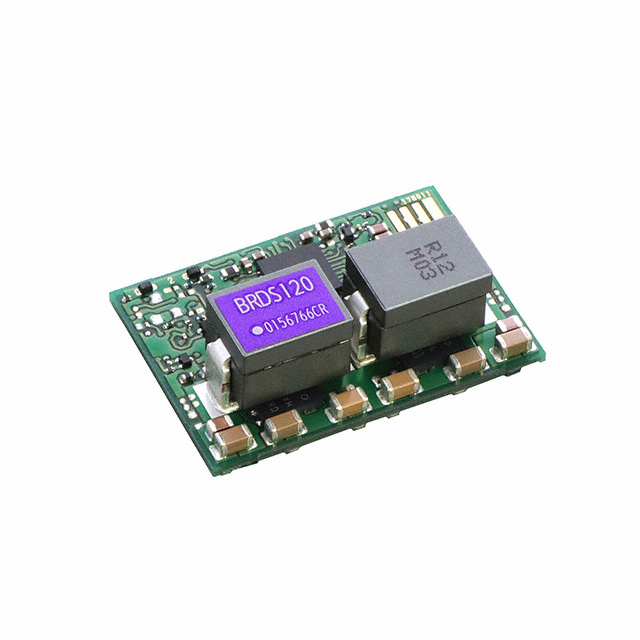

Cosel USA, Inc. BRDS120	1.3 in			22.86 mm	12.7 mm		Surface Mount	-40 °C	85 °C	Non-Isolated PoL Module	120 A	Adjustable Output Remote Sense	1	CE cURus TUV	14 V	Sixteenth Brick	89 %	0.6 V	1.8 V	ITE (Commercial)	4.5 V	12.7 mm	33 mm	22.9 mm	Sixteenth Brick
