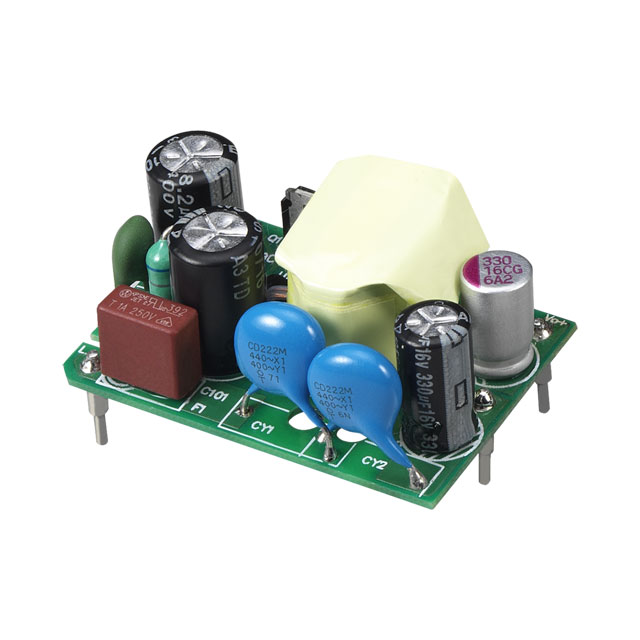

CFM12S Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
SWITCHING POWER SUPPLIES AC-DC MODULE, 12 WATT, OPEN FRAME, 90-264VAC INPUT, 12VDC OUTPUT
| Part | Load Regulation | Line Regulation | Number of Outputs | Approval Agency | Current - Output (Max) [Max] | Voltage - Input [Max] | Voltage - Input [Min] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Features | Voltage - Output 1 | Mounting Type | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Standard Number | Package / Case | Applications | Type | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | ±1% | 1 % | 1 | CE cURus FCC NEMKO | 1 A | 264 VAC | 90 VAC | 19.2 mm | 25.4 mm | 38.1 mm | 1 " | 1.5 in | 0.76 " | Universal Input | 12 V | Through Hole | 12 W | 75 °C | -40 °C | 60335-1 62368-1 | Module | Household Appliances ITE (Commercial) | Open Frame | 85 % |
