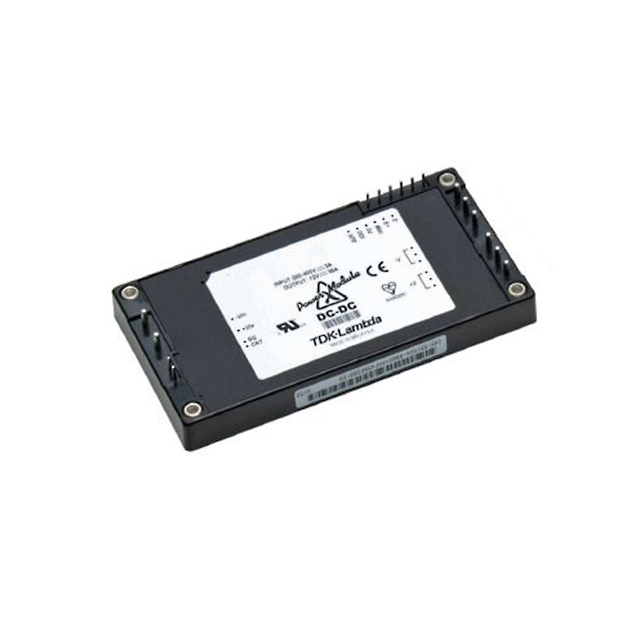

PAF700 Series
Manufacturer: TDK Corporation
Beta
⌘K
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, FULL BRICK, DIP, 702 W, 1 OUTPUT, 12 V
| Part | Voltage - Input (Max) [Max] | Power (Watts) | Mounting Type | Efficiency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Package / Case | Control Features | Applications | Type | Features | Voltage - Isolation | Number of Outputs | Voltage - Output 1 | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 76 V | 700 W | Through Hole | 90 % | 2.4 in | 4.6 " | 12.7 mm | 0.5 in | 61 mm | 116.8 mm | -40 C | 100 °C | 58.5 A | Full Brick | Active Low Enable | ITE (Commercial) | Isolated Module | OCP OVP Remote On/Off | 1.5 kV | 1 | 12 V | 36 V |
 TDK Corporation | 76 V | 700 W | Through Hole | 91 % | 2.4 in | 4.6 " | 12.7 mm | 0.5 in | 61 mm | 116.8 mm | -40 C | 100 °C | 25 A | Full Brick | Active Low Enable | ITE (Commercial) | Isolated Module | OCP OVP Remote On/Off | 1.5 kV | 1 | 28 V | 36 V |
