FFC3A20 Series

Manufacturer: GCT

Catalog

FFC & FPC CONNECTORS 08W, 1MM FFC CON, VERT, H5.5MM, GOLD, SMT, T&R

Part	Contact Finish Thickness	Housing Color	Actuator Color	Mating Cycles	Actuator Material	Number of Positions	Locking Feature	Height Above Board [z]	Height Above Board [z]	Connector/Contact Type	Contact Finish	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Housing Material	Material Flammability Rating	FFC, FCB Thickness	Contact Material	Pitch	Pitch	Mounting Type	Flat Flex Type	Features	Cable End Type

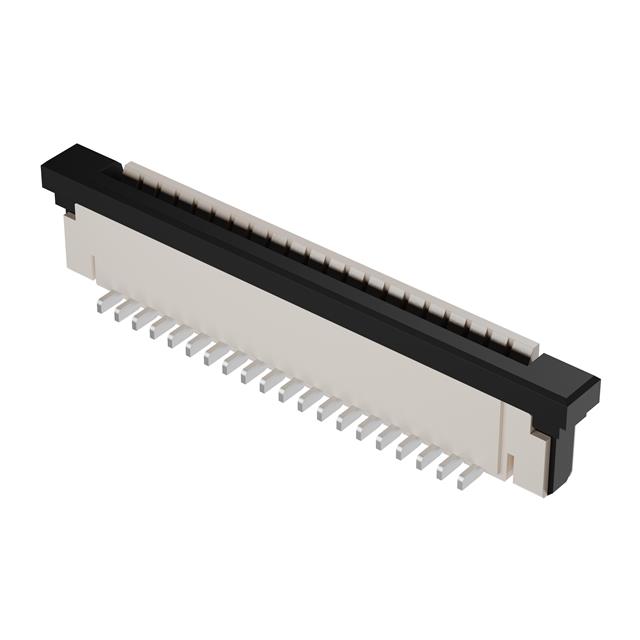

GCT FFC3A20-08-G	Flash	Natural	Brown	20	Polyphenylene Sulfide (PPS)	8	Slide Lock	0.217 in	5.5 mm	Contacts Vertical - 1 Sided	Gold	Solder	85 °C	-40 C	125 VDC	Nylon 6T Polyamide (PA6T)	UL94 V-0	0.3 mm	Phosphor Bronze	1 mm	0.039 in	Surface Mount	FFC FPC	Pick and Place Cap Zero Insertion Force (ZIF)	Tapered
GCT FFC3A20-13-T		Natural	Brown	20	Polyphenylene Sulfide (PPS)	13	Slide Lock	0.217 in	5.5 mm	Contacts Vertical - 1 Sided	Tin	Solder	85 °C	-40 C	125 VDC	Nylon 6T Polyamide (PA6T)	UL94 V-0	0.3 mm	Phosphor Bronze	1 mm	0.039 in	Surface Mount	FFC FPC		Straight
GCT FFC3A20-13-G	Flash	Natural	Brown	20	Polyphenylene Sulfide (PPS)	13	Slide Lock	0.217 in	5.5 mm	Contacts Vertical - 1 Sided	Gold	Solder	85 °C	-40 C	125 VDC	Nylon 6T Polyamide (PA6T)	UL94 V-0	0.3 mm	Phosphor Bronze	1 mm	0.039 in	Surface Mount	FFC FPC	Pick and Place Cap Zero Insertion Force (ZIF)	Tapered
GCT FFC3A20-24-G					Polyphenylene Sulfide (PPS)	24	Slide Lock	0.217 in	5.5 mm	Contacts Vertical - 1 Sided	Gold	Solder	85 °C	-40 C	125 VDC	Liquid Crystal Polymer (LCP)	UL94 V-0	0.3 mm	Phosphor Bronze	1 mm	0.039 in	Surface Mount	FFC FPC		Straight
GCT FFC3A20-18-G	Flash	Natural	Brown	20	Polyphenylene Sulfide (PPS)	18	Slide Lock	0.217 in	5.5 mm	Contacts Vertical - 1 Sided	Gold	Solder	85 °C	-40 C	125 VDC	Liquid Crystal Polymer (LCP)	UL94 V-0	0.3 mm	Phosphor Bronze	1 mm	0.039 in	Surface Mount	FFC FPC		Straight
