NX5P2924 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K

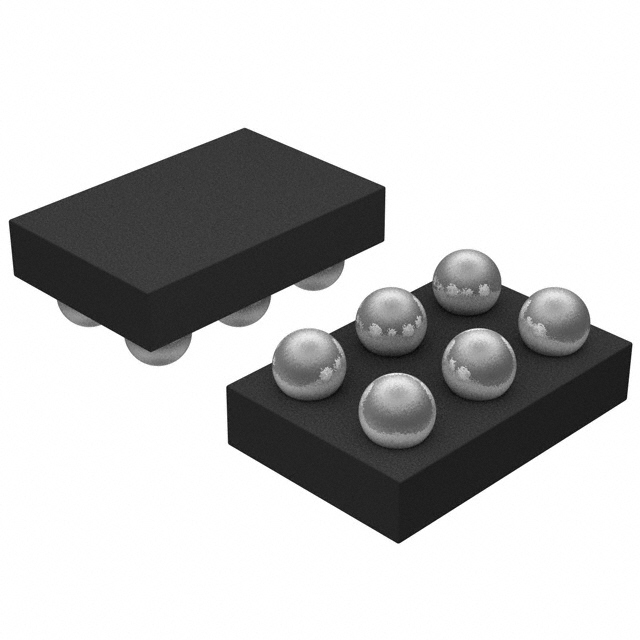

IC PWR SWITCH N-CHAN 1:1 6WLCSP
| Part | Interface | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply (Vcc/Vdd) | Rds On (Typ) | Current - Output (Max) [Max] | Output Type | Features | Number of Outputs | Mounting Type | Switch Type | Package / Case | Voltage - Load [Max] | Voltage - Load [Min] | Input Type | Ratio - Input:Output [custom] | Output Configuration | Fault Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Freescale Semiconductor - NXP | On/Off | -40 °C | 125 ¯C | 14 mOhm | 2.5 A | N-Channel | Load Discharge Slew Rate Controlled | 1 | Surface Mount | General Purpose | 6-XFBGA WLCSP | 5.5 V | 0.8 V | Non-Inverting | 1:1 | High Side | ||
 Freescale Semiconductor - NXP | On/Off | -40 °C | 85 °C | 18 mOhm | 2.5 A | N-Channel | Load Discharge Slew Rate Controlled | 1 | Surface Mount | General Purpose | 6-XFBGA WLCSP | 5.5 V | 0.8 V | Non-Inverting | 1:1 | High Side | Reverse Current |
