391-092 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 92POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Pitch	Pitch	Features	Contact Material	Color	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Gender	Read Out	Contact Finish	Card Type	Number of Rows [custom]	Termination	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 391-092-560-201	Polyester Thermoplastic	2	0.1 "	2.54 mm	Card Extender	Copper Alloy	Black	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	46	-40 C	105 ░C	92	0.25 Ám	10 Áin	Semi Bellows	Female	Dual	Gold	Non Specified - Dual Edge	2	Solder
EDAC Inc. 391-092-521-207	Polyester Thermoplastic	2	0.1 "	2.54 mm		Copper Alloy	Black	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	46	-40 C	105 ░C	92	0.25 Ám	10 Áin	Semi Bellows	Female	Dual	Gold	Non Specified - Dual Edge	2	Solder	Flush Mount M3 Threaded Insert Top Opening

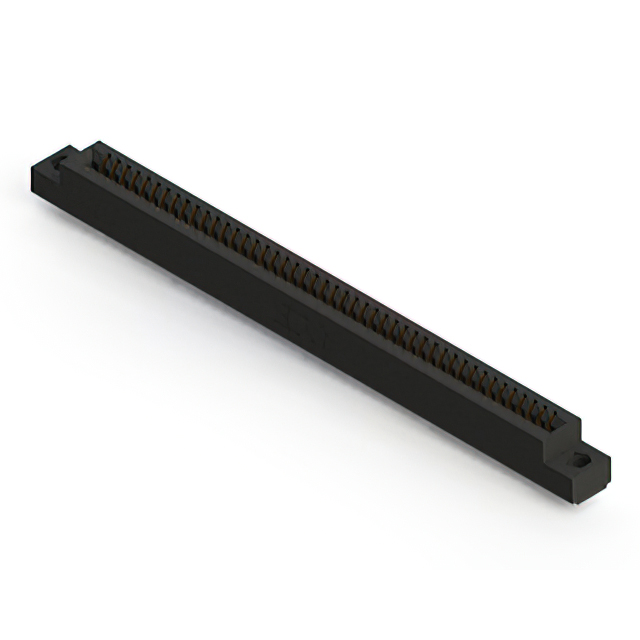

EDAC Inc. 391-092-524-204	Polyester Thermoplastic	2	0.1 "	2.54 mm		Copper Alloy	Black	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	46	-40 C	105 ░C	92	0.25 Ám	10 Áin	Semi Bellows	Female	Dual	Gold	Non Specified - Dual Edge	2	Solder	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm
EDAC Inc. 391-092-560-204	Polyester Thermoplastic	2	0.1 "	2.54 mm	Card Extender	Copper Alloy	Black	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	46	-40 C	105 ░C	92	0.25 Ám	10 Áin	Semi Bellows	Female	Dual	Gold	Non Specified - Dual Edge	2	Solder	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm
EDAC Inc. 391-092-555-207	Polyester Thermoplastic	2	0.1 "	2.54 mm	Card Extender	Copper Alloy	Black	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	46	-40 C	105 ░C	92	0.25 Ám	10 Áin	Semi Bellows	Female	Dual	Gold	Non Specified - Dual Edge	2	Solder Eyelet(s)	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 391-092-521-201	Polyester Thermoplastic	2	0.1 "	2.54 mm		Copper Alloy	Black	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	46	-40 C	105 ░C	92	0.25 Ám	10 Áin	Semi Bellows	Female	Dual	Gold	Non Specified - Dual Edge	2	Solder
EDAC Inc. 391-092-555-203	Polyester Thermoplastic	2	0.1 "	2.54 mm	Card Extender	Copper Alloy	Black	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	46	-40 C	105 ░C	92	0.25 Ám	10 Áin	Semi Bellows	Female	Dual	Gold	Non Specified - Dual Edge	2	Solder Eyelet(s)	Floating Bobbin Flush Mount	0.116 "	2.95 mm
EDAC Inc. 391-092-520-201	Polyester Thermoplastic	2	0.1 "	2.54 mm		Copper Alloy	Black	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	46	-40 C	105 ░C	92	0.25 Ám	10 Áin	Semi Bellows	Female	Dual	Gold	Non Specified - Dual Edge	2	Solder
EDAC Inc. 391-092-556-202	Polyester Thermoplastic	2	0.1 "	2.54 mm	Card Extender	Copper Alloy	Black	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	46	-40 C	105 ░C	92	0.25 Ám	10 Áin	Semi Bellows	Female	Dual	Gold	Non Specified - Dual Edge	2	Solder	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 391-092-524-207	Polyester Thermoplastic	2	0.1 "	2.54 mm		Copper Alloy	Black	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	46	-40 C	105 ░C	92	0.25 Ám	10 Áin	Semi Bellows	Female	Dual	Gold	Non Specified - Dual Edge	2	Solder	Flush Mount M3 Threaded Insert Top Opening
