LMZ36002 Series

4.5V to 60V, 2A Step-Down Power Module in QFN Package

Catalog

4.5V to 60V, 2A Step-Down Power Module in QFN Package

Part	Voltage - Input (Min) [Min]	Supplier Device Package	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Control Features	Applications	Features	Type	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Current - Output (Max) [Max]	Package / Case	Mounting Type	Voltage - Input (Max) [Max]	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Voltage - Output	Supplied Contents	Utilized IC / Part	Current - Output	Board Type	Outputs and Type	Outputs and Type	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Topology

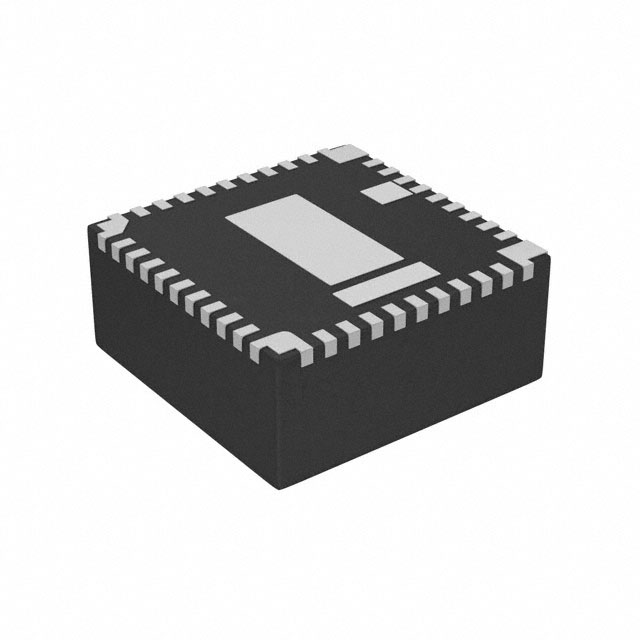

Texas Instruments LMZ36002RVQT	4.5 V	43-B3QFN (10x10)	10.2 mm	0.4 in	4.4 mm	10.2 mm	0.17 in	0.4 in	Active High Enable	ITE (Commercial)	OCP OTP UVLO	Non-Isolated PoL Module	2.5 V	7.5 V	2 A	43-BQFN Module	Surface Mount	60 V	1	-40 °C	105 ░C	95 %

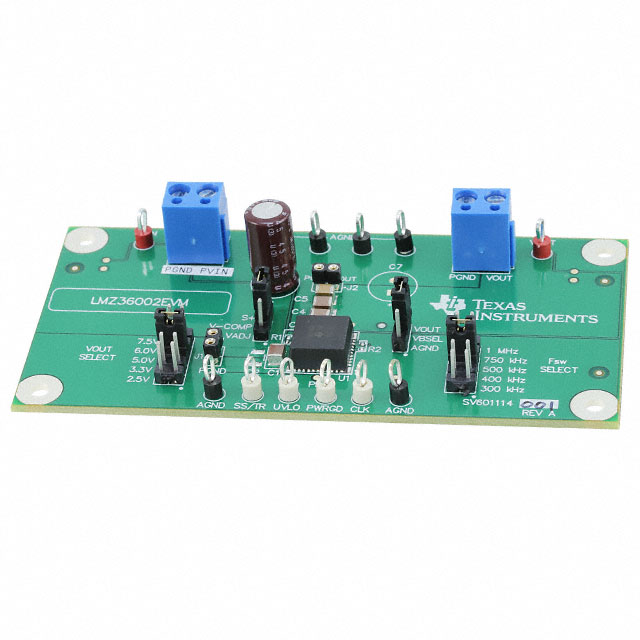

Texas Instruments LMZ36002EVM																							2.5 V 3.3 V 5 V 6 V 7.5 V	Board(s)	LMZ36002	2 A	Fully Populated	Non-Isolated	1	DC/DC Step Down	60 V	4.5 V	Buck
Texas Instruments LMZ36002RVQR	4.5 V		10.2 mm	0.4 in	4.4 mm	10.2 mm	0.17 in	0.4 in	Active High Enable	ITE (Commercial)	OCP OTP UVLO	Non-Isolated PoL Module	2.5 V	7.5 V	2 A	43-BQFN Exposed Pad	Surface Mount	60 V	1	-40 °C	105 ░C	95 %

Catalog

4.5V to 60V, 2A Step-Down Power Module in QFN Package

Key Features

• Complete Integrated Power Solution AllowsSmall Footprint, Low-Profile Design10 mm × 10 mm × 4.3 mm PackageWide-Output Voltage Adjust (2.5 V to 7.5 V)Adjustable Switching Frequency(200 kHz to 1 MHz)Synchronizes to an External ClockAutomatic PFM Mode for Light Load EfficiencyAdjustable Soft-Start TimeOutput Voltage Sequencing / TrackingPower-Good OutputProgrammable Undervoltage Lockout (UVLO)Overtemperature Thermal Shutdown ProtectionOvercurrent Protection (Hiccup Mode)Prebias Output Start-UpOperating Temperature Range: –40°C to 105°CEnhanced Thermal Performance: 14°C/WMeets EN55022 Class B Emissions– Integrated Shielded InductorCreate a Custom Design using the LMZ36002 with theWEBENCH® Power DesignerComplete Integrated Power Solution AllowsSmall Footprint, Low-Profile Design10 mm × 10 mm × 4.3 mm PackageWide-Output Voltage Adjust (2.5 V to 7.5 V)Adjustable Switching Frequency(200 kHz to 1 MHz)Synchronizes to an External ClockAutomatic PFM Mode for Light Load EfficiencyAdjustable Soft-Start TimeOutput Voltage Sequencing / TrackingPower-Good OutputProgrammable Undervoltage Lockout (UVLO)Overtemperature Thermal Shutdown ProtectionOvercurrent Protection (Hiccup Mode)Prebias Output Start-UpOperating Temperature Range: –40°C to 105°CEnhanced Thermal Performance: 14°C/WMeets EN55022 Class B Emissions– Integrated Shielded InductorCreate a Custom Design using the LMZ36002 with theWEBENCH® Power Designer

Description

The LMZ36002 power module is an easy-to-use integrated power supply that combines a 2-A DC/DC converter with a shielded inductor and passives into a low profile, QFN package. This total power solution allows as few as three external components while maintaining an ability to adjust key parameters to meet specific design requirements. The QFN package is easy to solder to a printed circuit board, allows reflow profiles up to 245°C, and has excellent power dissipation capability. The LMZ36002 offers flexibilty with many features and is ideal for powering a wide range of devices and systems. The LMZ36002 power module is an easy-to-use integrated power supply that combines a 2-A DC/DC converter with a shielded inductor and passives into a low profile, QFN package. This total power solution allows as few as three external components while maintaining an ability to adjust key parameters to meet specific design requirements. The QFN package is easy to solder to a printed circuit board, allows reflow profiles up to 245°C, and has excellent power dissipation capability. The LMZ36002 offers flexibilty with many features and is ideal for powering a wide range of devices and systems.
