701W-X2 Series

Manufacturer: Qualtek

Catalog

PWR ENT RCPT IEC320-C14 PNL SLDR

Part	Connector Type	Current Rating - Appliance Inlet	Filter Type	Termination	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Connector Style	Approval Agency	Mounting Type	Voltage Rating - Appliance Inlet	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Termination	Termination

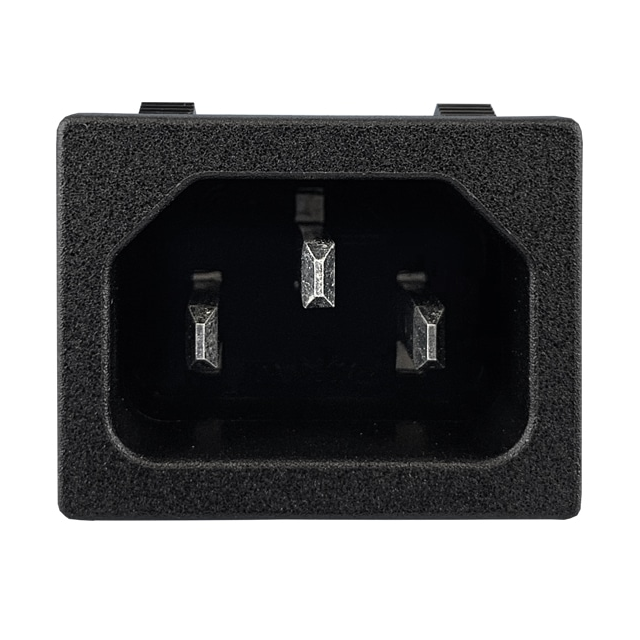

Qualtek 701W-X2/02	Receptacle Male Blades	10 A	Unfiltered - Commercial	Solder Eyelet	27 mm	20 mm	IEC 320-C14	CCC CSA UL VDE	Panel Mount Snap-In	250 VAC	1.5 mm	0.81 mm	0.032 in	0.059 in

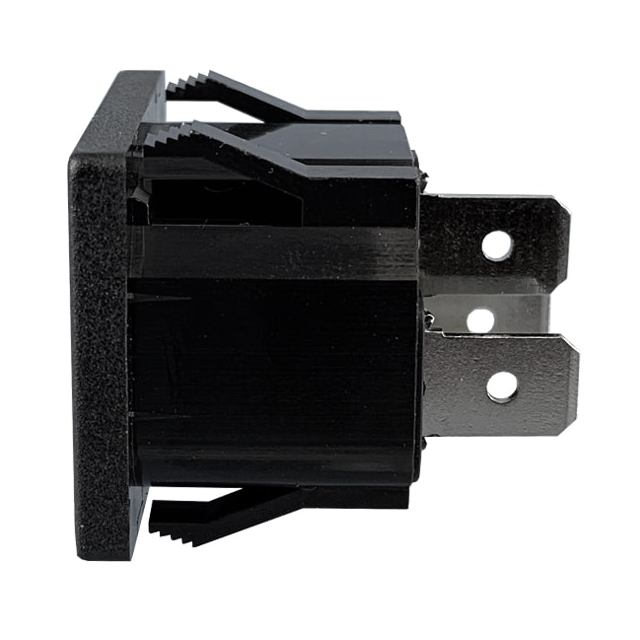

Qualtek 701W-X2/04	Receptacle Male Blades	10 A	Unfiltered - Commercial	Quick Connect	27 mm	20.5 mm	IEC 320-C14	CSA UL VDE	Panel Mount Snap-In	250 VAC	1.5 mm	0.8 mm	0.031 "	0.059 in	6.3 mm	0.25 "
Qualtek 701W-X2/10	Receptacle Male Blades	10 A	Unfiltered - Commercial	Solder	26.7 mm	20.5 mm	IEC 320-C14	CSA UL VDE	Panel Mount Right Angle Snap-In Through Hole	250 VAC	2 mm	0.79 mm	0.031 "	0.079 "
