742C043 Series

Catalog

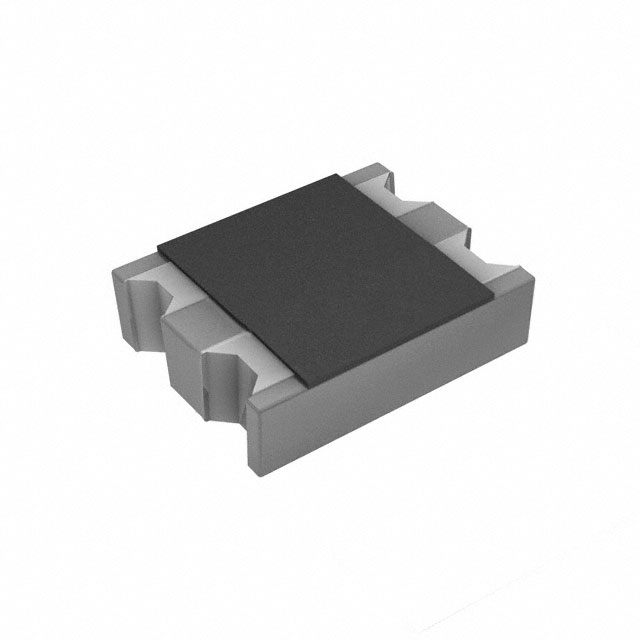

RES ARRAY 2 RES 470 OHM 0606

Part	Number of Pins	Number of Resistors	Power Per Element	Applications	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Circuit Type	Qualification	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Resistance (Ohms)	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Temperature Coefficient	Package / Case	Resistance (Ohms)
CTS Resistor Products 742C043471JTR	4	2	63 mW	DDR SDRAM DRAM MDDR	5 %	0.063 "	1.6 mm	0.063 "	1.6 mm	Isolated	AEC-Q200	0.7 mm	0.028 "	Surface Mount	470 Ohms	-55 C	125 °C	Automotive	200 ppm/°C	0606 Concave
CTS Resistor Products 742C043123JP	4	2	63 mW	DDR SDRAM DRAM MDDR	5 %	0.063 "	1.6 mm	0.063 "	1.6 mm	Isolated	AEC-Q200	0.7 mm	0.028 "	Surface Mount	12 kOhms	-55 C	125 °C	Automotive	200 ppm/°C	0606 Concave
CTS Resistor Products 742C043102JTR	4	2	63 mW	DDR SDRAM DRAM MDDR	5 %	0.063 "	1.6 mm	0.063 "	1.6 mm	Isolated	AEC-Q200	0.7 mm	0.028 "	Surface Mount		-55 C	125 °C	Automotive	200 ppm/°C	0606 Concave	1k
CTS Resistor Products 742C043120JP	4	2	63 mW	DDR SDRAM DRAM MDDR	5 %	0.063 "	1.6 mm	0.063 "	1.6 mm	Isolated	AEC-Q200	0.7 mm	0.028 "	Surface Mount		-55 C	125 °C	Automotive	200 ppm/°C	0606 Concave
CTS Resistor Products 742C043103JTR	4	2	63 mW	DDR SDRAM DRAM MDDR	5 %	0.063 "	1.6 mm	0.063 "	1.6 mm	Isolated	AEC-Q200	0.7 mm	0.028 "	Surface Mount		-55 C	125 °C	Automotive	200 ppm/°C	0606 Concave	10k
CTS Resistor Products 742C043224JP	4	2	63 mW	DDR SDRAM DRAM MDDR	5 %	0.063 "	1.6 mm	0.063 "	1.6 mm	Isolated	AEC-Q200	0.7 mm	0.028 "	Surface Mount	220 kOhms	-55 C	125 °C	Automotive	200 ppm/°C	0606 Concave
CTS Resistor Products 742C043334JP	4	2	63 mW	DDR SDRAM DRAM MDDR	5 %	0.063 "	1.6 mm	0.063 "	1.6 mm	Isolated	AEC-Q200	0.7 mm	0.028 "	Surface Mount		-55 C	125 °C	Automotive	200 ppm/°C	0606 Concave	330k
CTS Resistor Products 742C043474JTR	4	2	63 mW	DDR SDRAM DRAM MDDR	5 %	0.063 "	1.6 mm	0.063 "	1.6 mm	Isolated	AEC-Q200	0.7 mm	0.028 "	Surface Mount		-55 C	125 °C	Automotive	200 ppm/°C	0606 Concave	470k
CTS Resistor Products 742C043104JP	4	2	63 mW	DDR SDRAM DRAM MDDR	5 %	0.063 "	1.6 mm	0.063 "	1.6 mm	Isolated	AEC-Q200	0.7 mm	0.028 "	Surface Mount		-55 C	125 °C	Automotive	200 ppm/°C	0606 Concave	100k
CTS Resistor Products 742C043151JP	4	2	63 mW	DDR SDRAM DRAM MDDR	5 %	0.063 "	1.6 mm	0.063 "	1.6 mm	Isolated	AEC-Q200	0.7 mm	0.028 "	Surface Mount	150 Ohms	-55 C	125 °C	Automotive	200 ppm/°C	0606 Concave
