9849 Series

Catalog

ALPHA ESSENTIALS COAXIAL CABLE 2

Part	Shield Material	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	VoP, Velocity of Propagation	Conductor Material	Wire Gauge	Features	Jacket (Insulation) Material	Impedance	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Jacket Color	Length	Length	Cable Type
ALPHA WIRE 9849 CL005	Copper Silver Coated	95 %	-70 °C	200 °C	70	Copper Silver Coated	26 AWG	Non-Magnetic	Fluorinated Ethylene-Propylene (FEP)	50 Ohms	7	34 AWG	2.54 mm	0.1 in	Braid	Clear	100 '	30.48 m	Coaxial
ALPHA WIRE 9849 WH005	Copper Silver Coated	95 %	-70 °C	200 °C	70	Copper Silver Coated	26 AWG	Non-Magnetic	Fluorinated Ethylene-Propylene (FEP)	50 Ohms	7	34 AWG	2.54 mm	0.1 in	Braid	White	100 '	30.48 m	Coaxial
ALPHA WIRE 9849 BR005	Copper Silver Coated	95 %	-70 °C	200 °C	70	Copper Silver Coated	26 AWG	Non-Magnetic	Fluorinated Ethylene-Propylene (FEP)	50 Ohms	7	34 AWG	2.54 mm	0.1 in	Braid	Brown	100 '	30.48 m	Coaxial
ALPHA WIRE 9849 OR005	Copper Silver Coated	95 %	-70 °C	200 °C	70	Copper Silver Coated	26 AWG	Non-Magnetic	Fluorinated Ethylene-Propylene (FEP)	50 Ohms	7	34 AWG	2.54 mm	0.1 in	Braid	Orange	100 '	30.48 m	Coaxial
ALPHA WIRE 9849 SL005	Copper Silver Coated	95 %	-70 °C	200 °C	70	Copper Silver Coated	26 AWG	Non-Magnetic	Fluorinated Ethylene-Propylene (FEP)	50 Ohms	7	34 AWG	2.54 mm	0.1 in	Braid	Slate	100 '	30.48 m	Coaxial
ALPHA WIRE 9849 BL005	Copper Silver Coated	95 %	-70 °C	200 °C	70	Copper Silver Coated	26 AWG	Non-Magnetic	Fluorinated Ethylene-Propylene (FEP)	50 Ohms	7	34 AWG	2.54 mm	0.1 in	Braid	Blue	100 '	30.48 m	Coaxial
ALPHA WIRE 9849 VI005	Copper Silver Coated	95 %	-70 °C	200 °C	70	Copper Silver Coated	26 AWG	Non-Magnetic	Fluorinated Ethylene-Propylene (FEP)	50 Ohms	7	34 AWG	2.54 mm	0.1 in	Braid	Violet	100 '	30.48 m	Coaxial
ALPHA WIRE 9849 BK005	Copper Silver Coated	95 %	-70 °C	200 °C	70	Copper Silver Coated	26 AWG	Non-Magnetic	Fluorinated Ethylene-Propylene (FEP)	50 Ohms	7	34 AWG	2.54 mm	0.1 in	Braid	Black	100 '	30.48 m	Coaxial

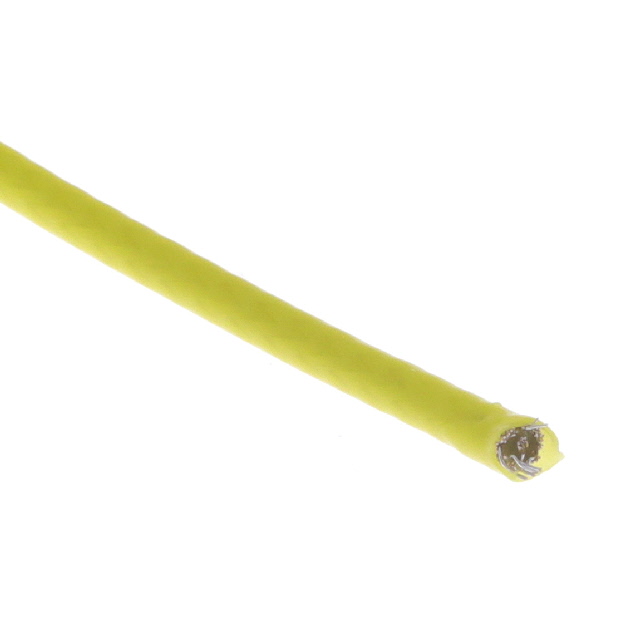

ALPHA WIRE 9849 YL005	Copper Silver Coated	95 %	-70 °C	200 °C	70	Copper Silver Coated	26 AWG	Non-Magnetic	Fluorinated Ethylene-Propylene (FEP)	50 Ohms	7	34 AWG	2.54 mm	0.1 in	Braid	Yellow	100 '	30.48 m	Coaxial
ALPHA WIRE 9849 GR005	Copper Silver Coated	95 %	-70 °C	200 °C	70	Copper Silver Coated	26 AWG	Non-Magnetic	Fluorinated Ethylene-Propylene (FEP)	50 Ohms	7	34 AWG	2.54 mm	0.1 in	Braid	Green	100 '	30.48 m	Coaxial
