030-8 Series

Catalog

CONTACT PIN 4AWG CRIMP SILVER

Part	Contact Termination	Wire Gauge or Range - AWG	Type	Contact Material	Contact Type	Contact Size	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Qualification	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Termination Finish	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm²
ITT Cannon, LLC 030-8613-000	Crimp	4 AWG	Signal Machined	Copper Alloy	Pin	4	5 µm	196.9 µin	Silver
ITT Cannon, LLC 030-8587-036	Crimp		Signal Machined	Copper Alloy	Pin	16	0.5 µm	19.7 µin	Gold	MIL-DTL-5015	0.38 mm²	0.14 mm²	Nickel	22 AWG	26 AWG
ITT Cannon, LLC 030-8581-030	Crimp		Power Machined	Brass	Pin	0			Silver				Brass			16 mm²
ITT Cannon, LLC 030-8587-010	Crimp		Signal Machined	Copper Alloy	Pin	16	5 µm	196.9 µin	Silver					14 AWG	16 AWG
ITT Cannon, LLC 030-8587-016	Crimp		Signal Machined	Copper Alloy	Pin	16	0.5 µm	19.7 µin	Gold					14 AWG	16 AWG
ITT Cannon, LLC 030-8614-000	Crimp	0 AWG	Signal Machined	Copper Alloy	Pin	0	5 µm	196.9 µin	Silver							50 mm²

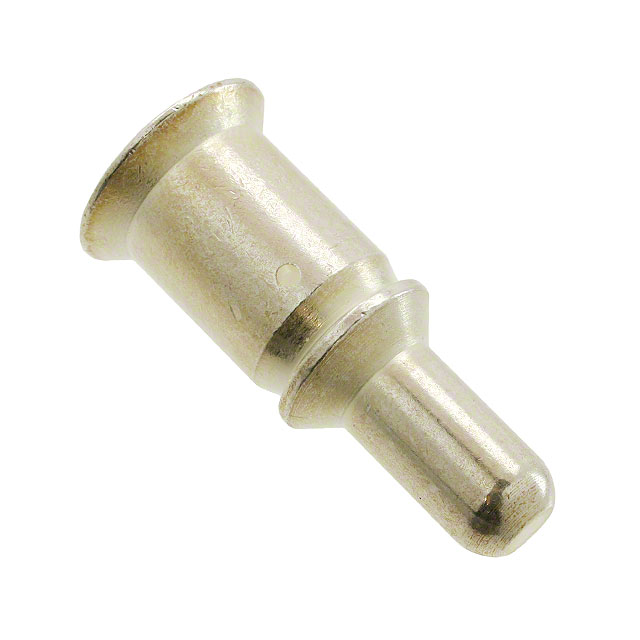

ITT Cannon, LLC 030-8581-029	Crimp		Power Machined	Copper Alloy	Pin	0			Silver				Copper Alloy			50 mm²
ITT Cannon, LLC 030-8581-031	Crimp	4 AWG	Power Machined	Brass	Pin	0			Silver				Brass			25 mm²
ITT Cannon, LLC 030-8613-006	Crimp	4 AWG	Signal Machined	Copper Alloy	Pin	4			Gold							25 mm²
ITT Cannon, LLC 030-8587-005	Crimp		Signal Machined	Copper Alloy	Pin	16	1.27 µm	50 µin	Gold		1.5 mm²	0.75 mm²		16 AWG	18 AWG
