2304372 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
1-PORT MATENET HDR ASSY 90DEG, C
| Part | Insulation Material | Current Rating (Amps) | Number of Rows | Number of Positions Loaded | Mounting Type | Contact Shape | Insulation Color | Insulation Height | Insulation Height | Fastening Type | Features | Shrouding | Pitch - Mating | Pitch - Mating | Style | Contact Material | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Voltage Rating | Contact Length - Post | Contact Length - Post | Termination | Number of Positions | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

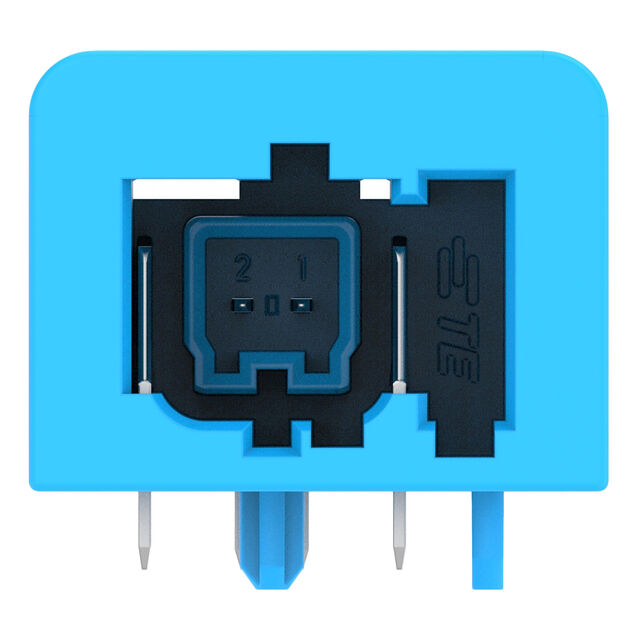

 TE Connectivity Raychem Cable Protection | Glass Filled Nylon 4T Polyamide (PA4T) | 3 A | 1 | All | Through Hole Right Angle | Rectangular | Blue | 13.5 mm | 0.531 in | Push-Pull | Board Guide | Shrouded - 4 Wall | 0.071 in | 1.8 mm | Board to Cable/Wire | Copper Alloy | Header | -40 °C | 105 ░C | Tab | 60 VDC | 0.094 in | 2.4 mm | Solder | 2 | |

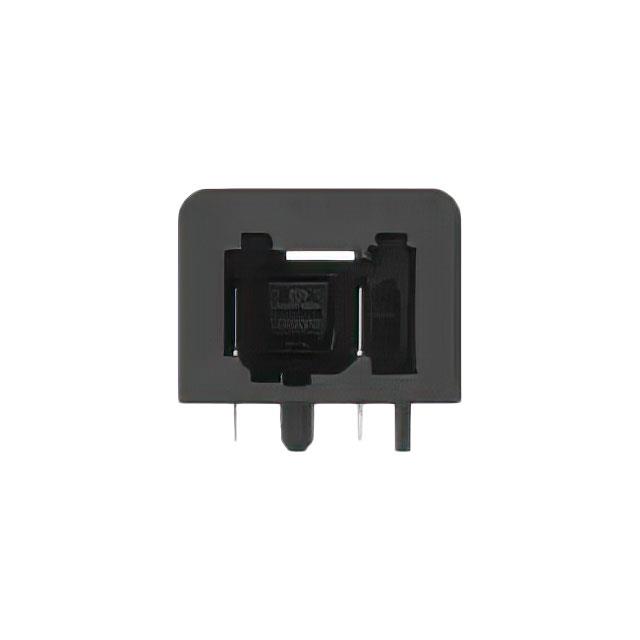

 TE Connectivity Raychem Cable Protection | Glass Filled Nylon 4T Polyamide (PA4T) | 3 A | 1 | All | Through Hole Right Angle | Square | Black | 13.5 mm | 0.531 in | Board Guide | Shrouded - 4 Wall | 0.071 in | 1.8 mm | Board to Cable/Wire | Copper Alloy | Header | -40 °C | 105 ░C | Tab | 60 VAC | 0.094 in | 2.4 mm | Solder | 2 | Tin |
