HLCBSE2 Series
Manufacturer: Essentra Components
Beta
⌘K

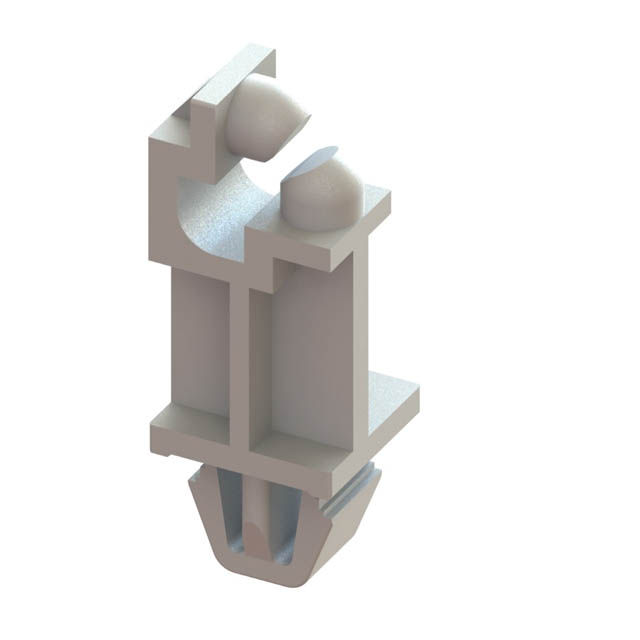

BRD SPT HING LOCK SNAP LOCK 10MM
| Part | Mounting Type | Holding Type | Between Board Height [z] | Between Board Height [z] | Material | Mounting Hole Diameter | Mounting Hole Diameter | Mounting Hole Diameter | Length - Overall [x] | Length - Overall [x] | Support Hole Diameter [diameter] | Support Hole Diameter [diameter] | Mounting Panel Thickness [Max] | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Max] | Support Panel Thickness [custom] | Support Panel Thickness [custom] | Between Board Height | Between Board Height | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | Snap Lock | Hinged Lock | 0.394 in | 10 mm | Nylon | Square | 5.5 mm | 0.217 in | 22.7 mm | 0.894 " | 3.99 mm | 0.157 " | 0.071 " | 0.047 in | 1.2 mm | 1.8 mm | 1.6 mm | 0.063 in | |||
 Essentra Components | Snap Lock | Hinged Lock | Nylon | Square | 5.5 mm | 0.217 in | 0.736 in | 3.99 mm | 0.157 " | 0.071 " | 0.047 in | 1.2 mm | 1.8 mm | 1.6 mm | 0.063 in | 6 mm | 0.236 in | 18.7 mm | |||
Essentra Components | Snap Lock | Hinged Lock | Nylon | Square | 5.5 mm | 0.217 in | 37.7 mm | 1.484 " | 3.99 mm | 0.157 " | 0.071 " | 0.047 in | 1.2 mm | 1.8 mm | 1.6 mm | 0.063 in | 25 mm | 0.984 in | |||
Essentra Components | Snap Lock | Hinged Lock | Nylon | Square | 5.5 mm | 0.217 in | 16.7 mm | 0.657 in | 3.99 mm | 0.157 " | 0.071 " | 0.047 in | 1.2 mm | 1.8 mm | 1.6 mm | 0.063 in | 4 mm | 0.157 in |
