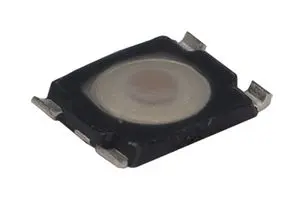

KMT021 Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K
TACTILE SWITCH, SPST-NO, KMT0 SERIES, TOP ACTUATED, SURFACE MOUNT, ROUND BUTTON, 160 GF
| Part | Outline [y] | Outline [x] | Mechanical Life | Features | Ingress Protection | Mounting Type | Switch Travel | Switch Function | Illumination | Termination Style | Actuator Height off PCB, Vertical [z] | Contact Rating @ Voltage | Actuator Orientation | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | 2.6 mm | 3 mm | 300000 Cycles | Tactile Feedback | IP68 - Dust Tight Waterproof | Surface Mount | 0.15 mm | Off-Mom | Non-Illuminated | J Lead | 0.65 mm | 0.05 A | Top Actuated | SPST-NO | 85 °C | -40 °C | Standard |
