110I Series

Manufacturer: Serpac

Catalog

BOX ABS BLACK 3.6"L X 2.25"W

Part	Weight	Weight	Area (L x W)	Area (L x W)	Design	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Thickness	Thickness	Container Type	Material	Ratings	Features	Area (L x W) [custom]	Area (L x W) [custom]	Material Flammability Rating	Height [z]	Height [z]

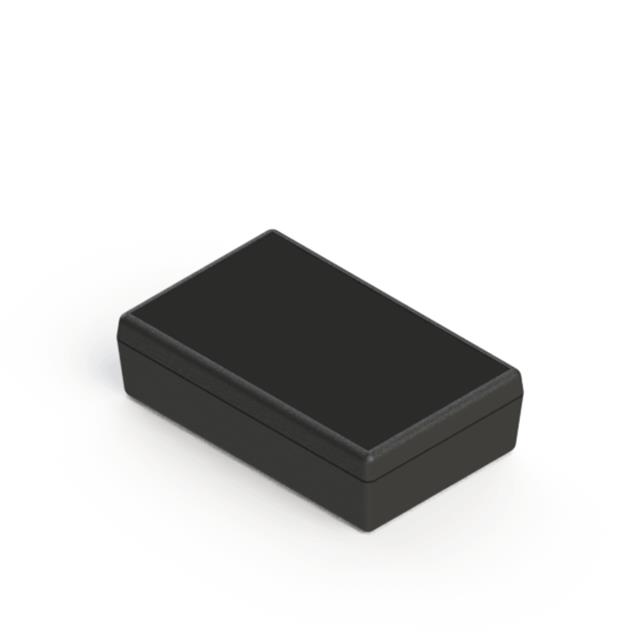

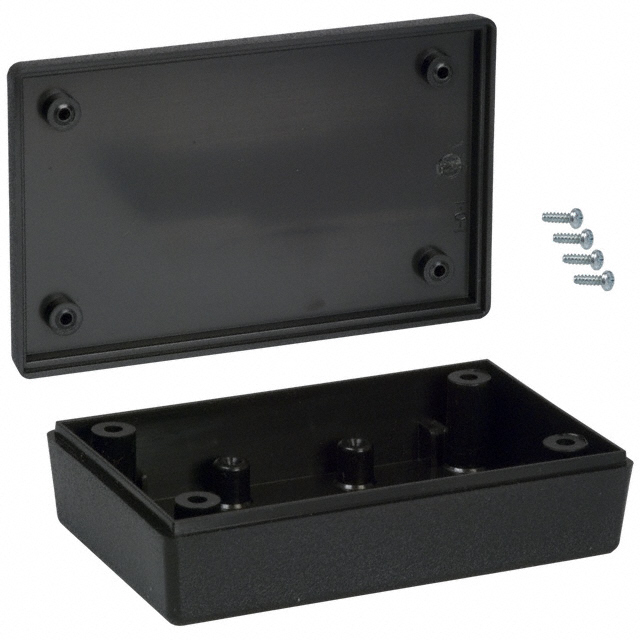

Serpac 110I,BK	0.11 lb	49.9 g	8.1 in²	52.3 cm²	Hand Held Split Sides	Black	2.25 in	3.6 "	57.15 mm	91.44 mm	2.54 mm	0.1 in	Box	ABS Plastic	IP40 NEMA 1	PCB Supports	8.1 in²	52.3 cm²	UL94 HB	25.4 mm	1 "

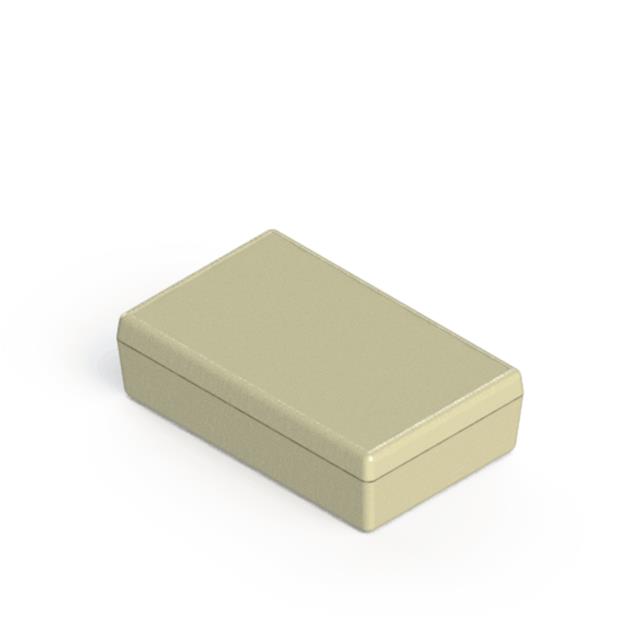

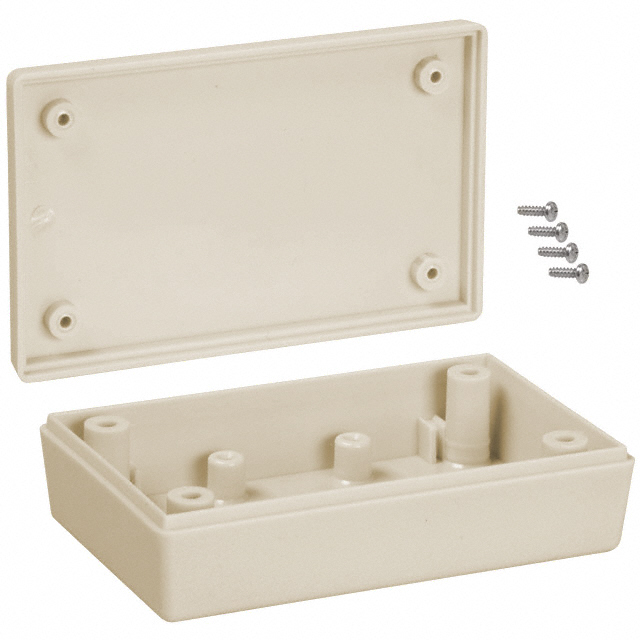

Serpac 110I,AL	0.11 lb	49.9 g	8.1 in²	52.3 cm²	Hand Held Split Sides	Almond	2.25 in	3.6 "	57.15 mm	91.44 mm	2.54 mm	0.1 in	Box	ABS Plastic	IP40 NEMA 1	PCB Supports	8.1 in²	52.3 cm²	UL94 HB	25.4 mm	1 "
