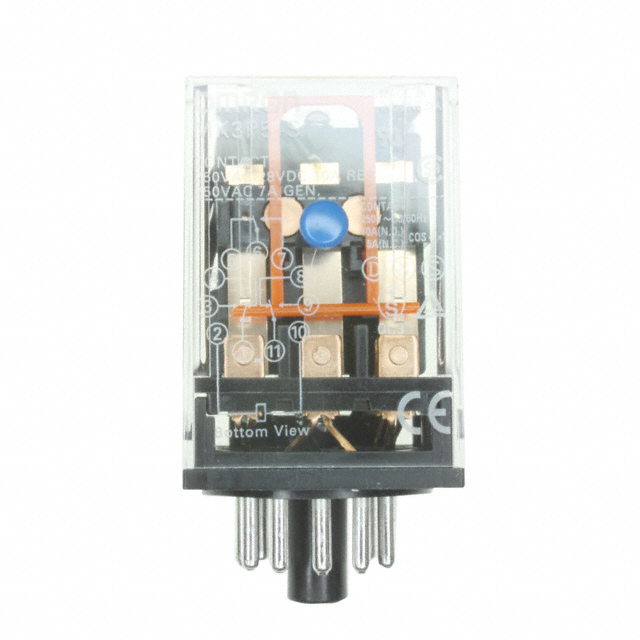

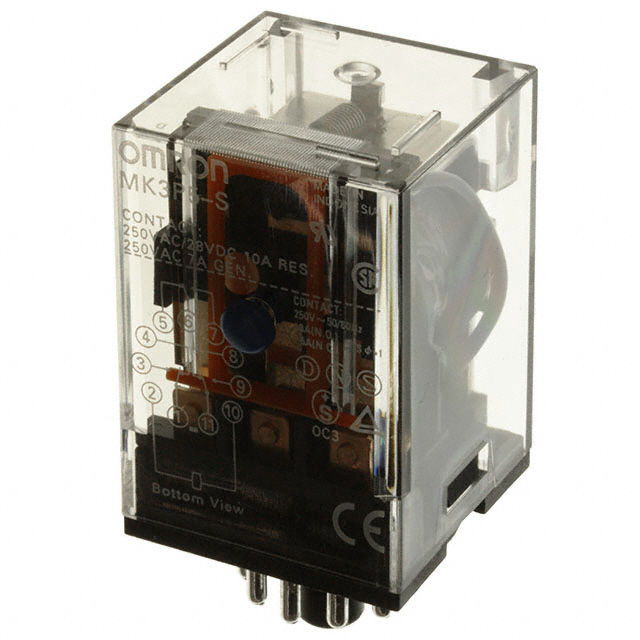

MK3P5 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE 3PDT 10A 24V
| Part | Operate Time | Contact Rating (Current) | Coil Voltage | Contact Form | Load - Max Switching | Coil Resistance | Approval Agency | Release Time | Contact Material | Relay Type | Must Release Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Switching Voltage | Coil Type | Must Operate Voltage | Coil Current | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 30 ms | 10 A | 24 VDC | 3PDT (3 Form C) | 280 W 2500 VA | 430 Ohms | DEMKO SEV TUV UL | 20 ms | Silver (Ag) | General Purpose | 3.6 VDC | -10 °C | 40 °C | Plug In 11 Pin (Octal) | 250 VAC 250 VDC | Non Latching | 19.2 VDC | 56 mA | Socketable | |
Omron Electronics Inc-EMC Div | 30 ms | 10 A | 32 VDC | 3PDT (3 Form C) | 280 W 2500 VA | 681 Ohms | DEMKO SEV TUV UL | 20 ms | Silver (Ag) | General Purpose | 4.8 VDC | -10 °C | 40 °C | Plug In 11 Pin (Octal) | 250 VAC 250 VDC | Non Latching | 25.6 VDC | 47 mA | Socketable | |
Omron Electronics Inc-EMC Div | 30 ms | 10 A | 48 VDC | 3PDT (3 Form C) | 280 W 2500 VA | 1.63 kOhms | DEMKO SEV TUV UL | 20 ms | Silver (Ag) | General Purpose | 7.2 VDC | -10 °C | 40 °C | Plug In 11 Pin (Octal) | 250 VAC 250 VDC | Non Latching | 38.4 VDC | 29.5 mA | Socketable | |
Omron Electronics Inc-EMC Div | 30 ms | 10 A | 110 VDC | 3PDT (3 Form C) | 280 W 2500 VA | 7.3 kOhms | DEMKO SEV TUV UL | 20 ms | Silver (Ag) | General Purpose | 16.5 VDC | -10 °C | 40 °C | Plug In 11 Pin (Octal) | 250 VAC 250 VDC | Non Latching | 88 VDC | 15.1 mA | Socketable | Mechanical Indicator |
Omron Electronics Inc-EMC Div | 30 ms | 10 A | 24 VDC | 3PDT (3 Form C) | 280 W 2500 VA | 430 Ohms | DEMKO SEV TUV UL | 20 ms | Silver (Ag) | General Purpose | 3.6 VDC | -10 °C | 40 °C | Plug In 11 Pin (Octal) | 250 VAC 250 VDC | Non Latching | 19.2 VDC | 56 mA | Socketable | Mechanical Indicator |
 Omron Electronics Inc-EMC Div | 30 ms | 10 A | 12 VDC | 3PDT (3 Form C) | 280 W 2500 VA | 95 Ohms | DEMKO SEV TUV UL | 20 ms | Silver (Ag) | General Purpose | 1.8 VDC | -10 °C | 40 °C | Plug In 11 Pin (Octal) | 250 VAC 250 VDC | Non Latching | 9.6 VDC | 126 mA | Socketable | |
Omron Electronics Inc-EMC Div | 30 ms | 10 A | 48 VDC | 3PDT (3 Form C) | 280 W 2500 VA | 1.63 kOhms | DEMKO SEV TUV UL | 20 ms | Silver (Ag) | General Purpose | 7.2 VDC | -10 °C | 40 °C | Plug In 11 Pin (Octal) | 250 VAC 250 VDC | Non Latching | 38.4 VDC | 29.5 mA | Socketable | Mechanical Indicator |
Omron Electronics Inc-EMC Div | 20 ms | 10 A | 100 VAC | 3PDT (3 Form C) | 280 W 2500 VA | 3.7 kOhms | DEMKO SEV TUV UL | 20 ms | Silver (Ag) | General Purpose | 30 VAC | -10 °C | 40 °C | Plug In 11 Pin (Octal) | 250 VAC 250 VDC | Non Latching | 80 VAC | 27 mA | Socketable | Mechanical Indicator |
Omron Electronics Inc-EMC Div | 20 ms | 10 A | 12 VAC/DC | 3PDT (3 Form C) | 280 W 2500 VA | 16.3 Ohms | DEMKO SEV TUV UL | 20 ms | Silver (Ag) | General Purpose | 3.6 VAC | -10 °C | 40 °C | Plug In 11 Pin (Octal) | 250 VAC 250 VDC | Non Latching | 9.6 VAC/DC | 180 mA | Socketable | Mechanical Indicator |
Omron Electronics Inc-EMC Div | 30 ms | 10 A | 12 VDC | 3PDT (3 Form C) | 280 W 2500 VA | 95 Ohms | DEMKO SEV TUV UL | 20 ms | Silver (Ag) | General Purpose | 1.8 VDC | -10 °C | 40 °C | Plug In 11 Pin (Octal) | 250 VAC 250 VDC | Non Latching | 9.6 VDC | 126 mA | Socketable | Mechanical Indicator |
