LCD0821 Series

Catalog

LCD MOD 16DIG 8X2 TRANSMISV BLUE

Part	Display Mode	Viewing Area [x]	Viewing Area [y]	Interface	Display Type	Character Format [x]	Character Format [y]	Background Color	Number of Characters	Character Size [y]	Character Size [z]	Outline L x W x H [z]	Outline L x W x H [x]	Outline L x W x H [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Text Color	Backlight	Operating Temperature [Min]	Operating Temperature [Max]	Display Format [x]	Display Format [y]	Dot Size [y]	Dot Size [x]
Matrix Orbital LCD0821-WB-E	Transmissive	38 mm	16 mm	I2C RS-232 TTL	TN - Twisted Nematic	5 Dots	8 Dots	Blue	16	2.96 mm	5.56 mm	26.8 mm	58 mm	32 mm	4.75 V	5.25 V	White	LED - Blue	-20 ░C	70 °C	8	2	0.66 mm	0.56 mm
Matrix Orbital LCD0821-R		27.8 mm	11.5 mm	I2C RS-232 TTL		5 Dots	8 Dots	Black	16	2.96 mm	5.56 mm	27.32 mm	58 mm	32 mm	4.75 V	5.25 V	Red		0 °C	50 °C	8	2	0.66 mm	0.56 mm
Matrix Orbital LCD0821-GW-V		27.8 mm	11.5 mm	I2C RS-232 TTL		5 Dots	8 Dots	White	16	2.96 mm	5.56 mm	27.32 mm	58 mm	32 mm	9 V	15 V	Gray		0 °C	50 °C	8	2	0.66 mm	0.56 mm
Matrix Orbital LCD0821-R-E		27.8 mm	11.5 mm	I2C RS-232 TTL		5 Dots	8 Dots	Black	16	2.96 mm	5.56 mm	27.32 mm	58 mm	32 mm	4.75 V	5.25 V	Red		-20 ░C	70 °C	8	2	0.66 mm	0.56 mm

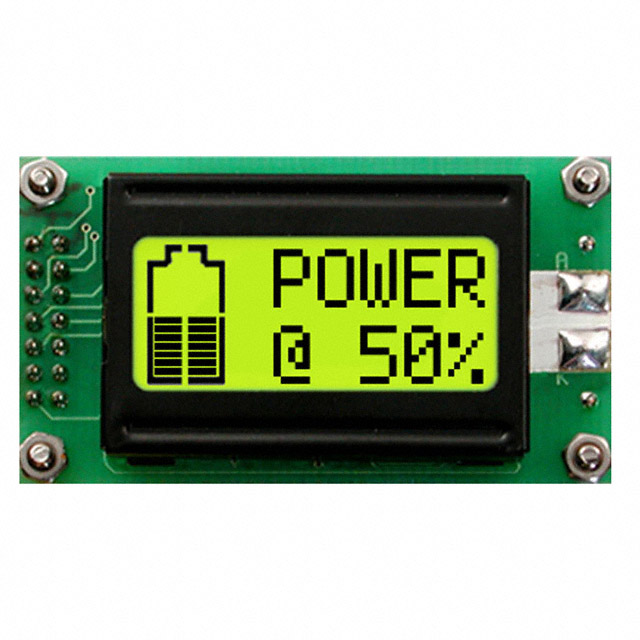

Matrix Orbital LCD0821-V	Transmissive	38 mm	16 mm	I2C RS-232 TTL	TN - Twisted Nematic	5 Dots	8 Dots	Green	16	2.96 mm	5.56 mm	26.8 mm	58 mm	32 mm	9 V	15 V	Black		0 °C	50 °C	8	2	0.66 mm	0.56 mm
Matrix Orbital LCD0821-R-V-E		27.8 mm	11.5 mm	I2C RS-232 TTL		5 Dots	8 Dots	Black	16	2.96 mm	5.56 mm	27.32 mm	58 mm	32 mm	9 V	15 V	Red		-20 ░C	70 °C	8	2	0.66 mm	0.56 mm
Matrix Orbital LCD0821-V-E		27.8 mm	11.5 mm	I2C RS-232 TTL		5 Dots	8 Dots	Yellow/Green	16	2.96 mm	5.56 mm	27.32 mm	58 mm	32 mm	9 V	15 V	Black		-20 ░C	70 °C	8	2	0.66 mm	0.56 mm
Matrix Orbital LCD0821-GW-V-E		27.8 mm	11.5 mm	I2C RS-232 TTL		5 Dots	8 Dots	White	16	2.96 mm	5.56 mm	27.32 mm	58 mm	32 mm	9 V	15 V	Gray		-20 ░C	70 °C	8	2	0.66 mm	0.56 mm
Matrix Orbital LCD0821-GW-E		27.8 mm	11.5 mm	I2C RS-232 TTL		5 Dots	8 Dots	White	16	2.96 mm	5.56 mm	27.32 mm	58 mm	32 mm	4.75 V	5.25 V	Gray		-20 ░C	70 °C	8	2	0.56 mm	0.56 mm
Matrix Orbital LCD0821-WB-V		27.8 mm	11.5 mm	I2C RS-232 TTL		5 Dots	8 Dots	Blue	16	2.96 mm	5.56 mm	27.32 mm	58 mm	32 mm	9 V	15 V	White		0 °C	50 °C	8	2	0.66 mm	0.56 mm
