745-028 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 28POS 0.100

Part	Material - Insulation	Termination Rows	Mounting Type	Number of Positions/Bay/Row	Read Out	Termination	Contact Finish Thickness	Contact Finish Thickness	Card Type	Number of Positions	Contact Type	Contact Finish	Pitch	Pitch	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Card Thickness [Max]	Card Thickness [Min]	Gender	Number of Rows	Termination Rows [custom]	Number of Rows [custom]
EDAC Inc. 745-028-520-101	Polyester Thermoplastic	1	Through Hole	28	Single	Press-Fit	30 Áin	0.76 Ám	Non Specified - Single Edge	28	Cantilever	Gold	0.1 "	2.54 mm	Copper Alloy	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	1

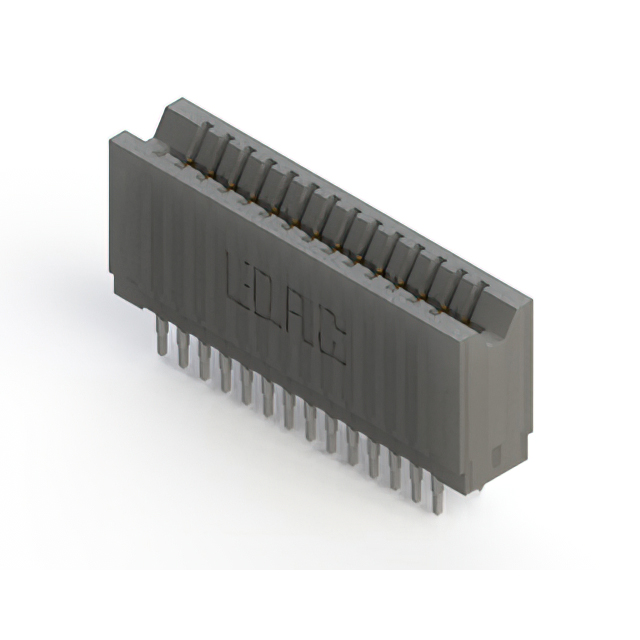

EDAC Inc. 745-028-525-206	Polyester Thermoplastic		Through Hole	14	Dual	Press-Fit	30 Áin	0.76 Ám	Non Specified - Dual Edge	28	Cantilever	Gold	0.1 "	2.54 mm	Copper Alloy	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female		2	2

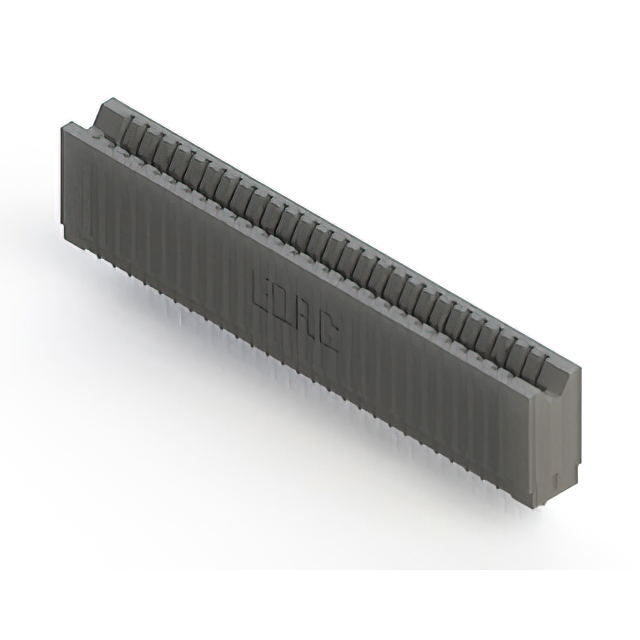

EDAC Inc. 745-028-520-106	Polyester Thermoplastic	1	Through Hole	28	Single	Press-Fit	30 Áin	0.76 Ám	Non Specified - Single Edge	28	Cantilever	Gold	0.1 "	2.54 mm	Copper Alloy	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	1

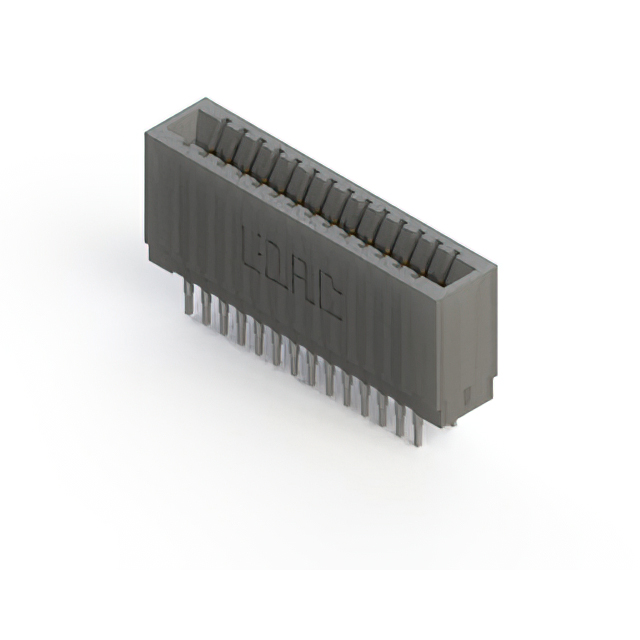

EDAC Inc. 745-028-545-201	Polyester Thermoplastic		Through Hole	14	Dual	Press-Fit	30 Áin	0.76 Ám	Non Specified - Dual Edge	28	Cantilever	Gold	0.1 "	2.54 mm	Copper Alloy	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female		2	2

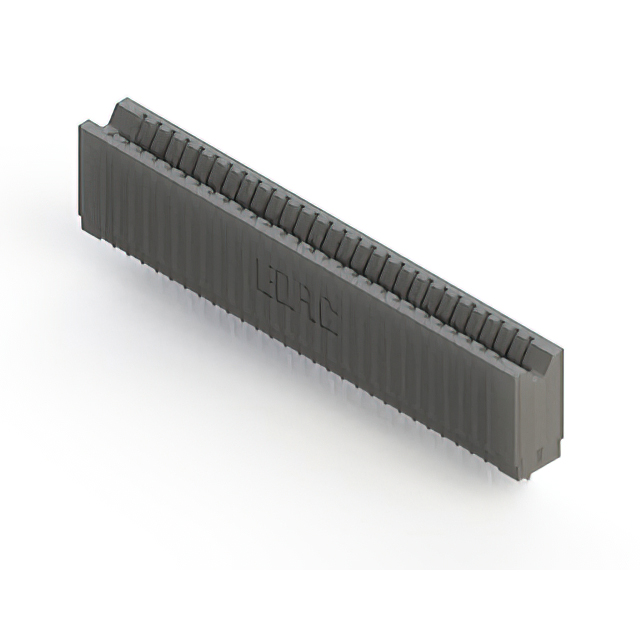

EDAC Inc. 745-028-522-106	Polyester Thermoplastic	1	Through Hole	28	Single	Press-Fit	30 Áin	0.76 Ám	Non Specified - Single Edge	28	Cantilever	Gold	0.1 "	2.54 mm	Copper Alloy	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	1

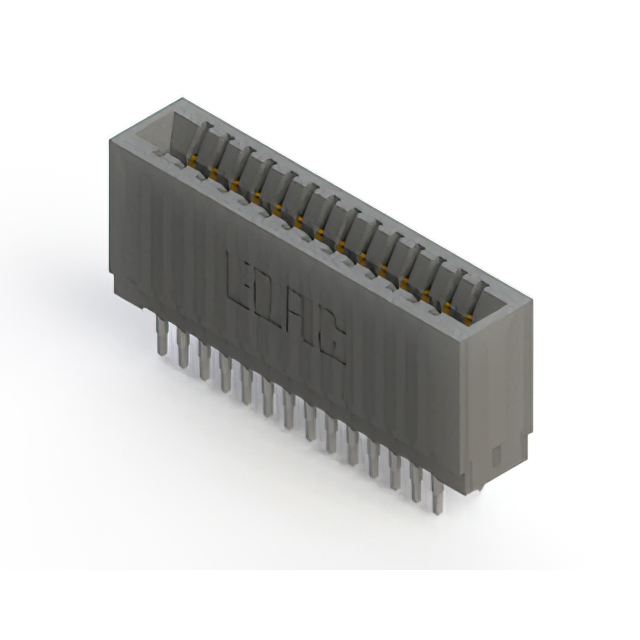

EDAC Inc. 745-028-560-201	Polyester Thermoplastic		Through Hole	14	Dual	Press-Fit	30 Áin	0.76 Ám	Non Specified - Dual Edge	28	Cantilever Make Before Break	Gold	0.1 "	2.54 mm	Copper Alloy	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female		2	2
EDAC Inc. 745-028-541-201	Polyester Thermoplastic		Through Hole	14	Dual	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Non Specified - Dual Edge	28	Cantilever	Gold	0.1 "	2.54 mm	Copper Alloy	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female		2	2
EDAC Inc. 745-028-545-101	Polyester Thermoplastic	1	Through Hole	28	Single	Press-Fit	30 Áin	0.76 Ám	Non Specified - Single Edge	28	Cantilever	Gold	0.1 "	2.54 mm	Copper Alloy	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	1

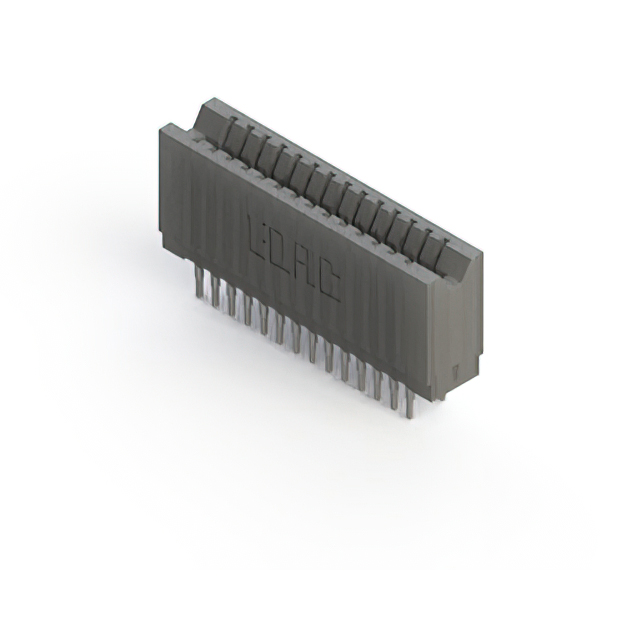

EDAC Inc. 745-028-541-206	Polyester Thermoplastic		Through Hole	14	Dual	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Non Specified - Dual Edge	28	Cantilever	Gold	0.1 "	2.54 mm	Copper Alloy	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female		2	2

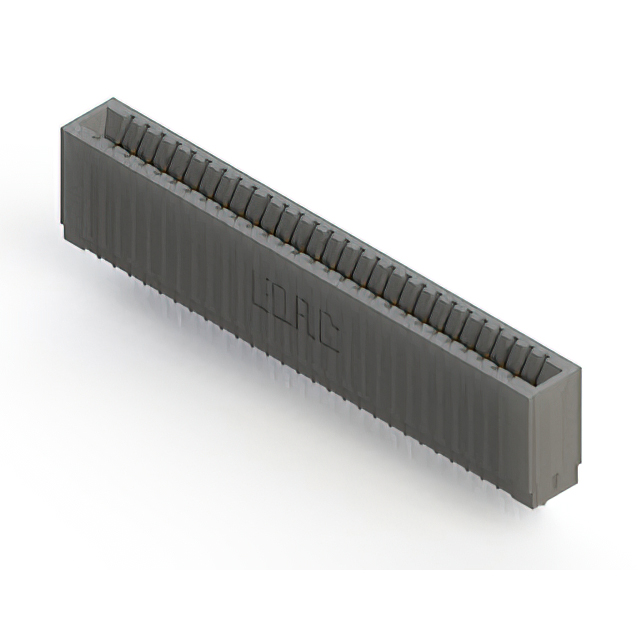

EDAC Inc. 745-028-525-101	Polyester Thermoplastic	1	Through Hole	28	Single	Press-Fit	30 Áin	0.76 Ám	Non Specified - Single Edge	28	Cantilever	Gold	0.1 "	2.54 mm	Copper Alloy	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	1
