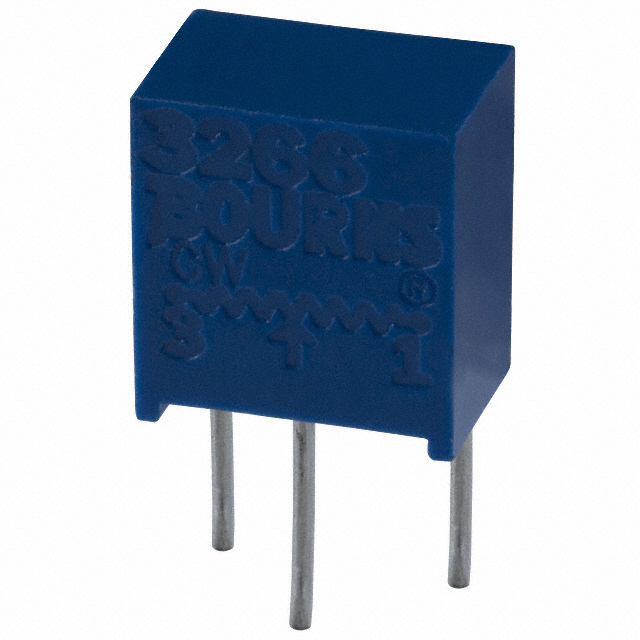

3266X Series

Catalog

TRIMMER, MULTI TURN, CERMET, SIDE ADJUST, 25 KOHM, THROUGH HOLE, 12 TURNS

Part	Resistance	Termination Style	Temperature Coefficient	Resistive Material	Tolerance	Power (Watts)	Power (Watts)	Number of Turns	Adjustment Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type
Bourns Inc. 3266X-1-253LF	25 kOhms	PC Pins	100 ppm/°C	Cermet	10 %	0.25 W	0.25 W	12	Side Adjustment	4.32 mm	0.17 in	0.25 in	6.35 mm	Through Hole
Bourns Inc. 3266X-1-101	100 Ohms	PC Pins	100 ppm/°C	Cermet	10 %	0.25 W	0.25 W	12	Side Adjustment	4.32 mm	0.17 in	0.25 in	6.35 mm	Through Hole
Bourns Inc. 3266X-1-203	20 kOhms	PC Pins	100 ppm/°C	Cermet	10 %	0.25 W	0.25 W	12	Side Adjustment	4.32 mm	0.17 in	0.25 in	6.35 mm	Through Hole
Bourns Inc. 3266X-1-254	250000 Ohms	PC Pins	100 ppm/°C	Cermet	10 %	0.25 W	0.25 W	12	Side Adjustment	4.32 mm	0.17 in	0.25 in	6.35 mm	Through Hole
Bourns Inc. 3266X-1-504		PC Pins	100 ppm/°C	Cermet	10 %	0.25 W	0.25 W	12	Side Adjustment	4.32 mm	0.17 in	0.25 in	6.35 mm	Through Hole
Bourns Inc. 3266X-1-201LF	200 Ohms	PC Pins	100 ppm/°C	Cermet	10 %	0.25 W	0.25 W	12	Side Adjustment	4.32 mm	0.17 in	0.25 in	6.35 mm	Through Hole
Bourns Inc. 3266X-1-103	10000 Ohms	PC Pins	100 ppm/°C	Cermet	10 %	0.25 W	0.25 W	12	Side Adjustment	4.32 mm	0.17 in	0.25 in	6.35 mm	Through Hole
Bourns Inc. 3266X-1-500LF	50 Ohms	PC Pins	100 ppm/°C	Cermet	10 %	0.25 W	0.25 W	12	Side Adjustment	4.32 mm	0.17 in	0.25 in	6.35 mm	Through Hole
Bourns Inc. 3266X-1-204LF	200000 Ohms	PC Pins	100 ppm/°C	Cermet	10 %	0.25 W	0.25 W	12	Side Adjustment	4.32 mm	0.17 in	0.25 in	6.35 mm	Through Hole
Bourns Inc. 3266X-1-203LF	20 kOhms	PC Pins	100 ppm/°C	Cermet	10 %	0.25 W	0.25 W	12	Side Adjustment	4.32 mm	0.17 in	0.25 in	6.35 mm	Through Hole
