9HV0612 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

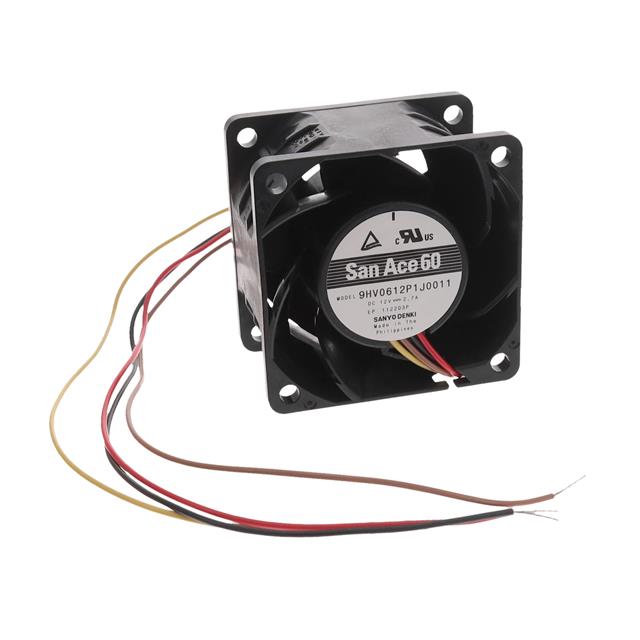

DC FAN AXIAL BALL BEARING 12V 10.8V TO 12.6V 66.4CFM 68DB 60 X 60 X 38MM PWM/SENSOR
| Part | Lifetime @ Temp. | Air Flow | Air Flow | Material - Frame | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Features | Width [y] | Size / Dimension [z] | Size / Dimension [x] | Bearing Type | Termination | RPM | Noise | Power (Watts) | Static Pressure | Static Pressure | Approval Agency | Weight | Weight | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Fan Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | Varies Based on Temperature | 66.4 CFM | 1.86 m³/min | Plastic | 2.7 A | 10.8 VDC | 12.6 VDC | Plastic | PWM Control Speed Sensor (Tach) | 38 mm | 60 mm | 60 mm | Ball | 4 Wire Leads | 21700 RPM | 68 dB | 32.4 W | 7 in H2O | 1743.6 Pa | CSA TUV UL | 135.17 g | 0.298 lb | 12 VDC | -20 ░C | 70 °C | Tubeaxial |
