325-029 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 29POS 0.100

Part	Material - Insulation	Termination Rows	Contact Finish	Color	Number of Positions	Pitch	Pitch	Number of Positions/Bay/Row	Card Type	Contact Finish Thickness	Contact Finish Thickness	Read Out	Contact Type	Number of Rows	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Termination	Card Thickness	Card Thickness	Mounting Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

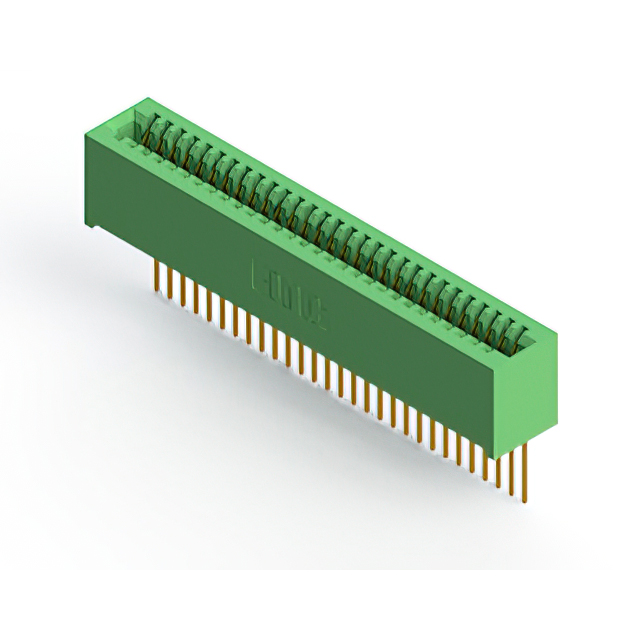

EDAC Inc. 325-029-540-101	Diallyl Phthalate (DAP)	1	Gold	Green	29	0.1 "	2.54 mm	29	Non Specified - Single Edge	0.25 Ám	10 Áin	Single	Cantilever	1	Copper Alloy	-65 ░C	125 °C	Female	Wire Wrap	3.18 mm	0.125 in	Through Hole
EDAC Inc. 325-029-500-101	Diallyl Phthalate (DAP)	1	Gold	Green	29	0.1 "	2.54 mm	29	Non Specified - Single Edge	0.25 Ám	10 Áin	Single	Cantilever	1	Copper Alloy	-65 ░C	125 °C	Female	Solder Eyelet(s)	3.18 mm	0.125 in	Through Hole

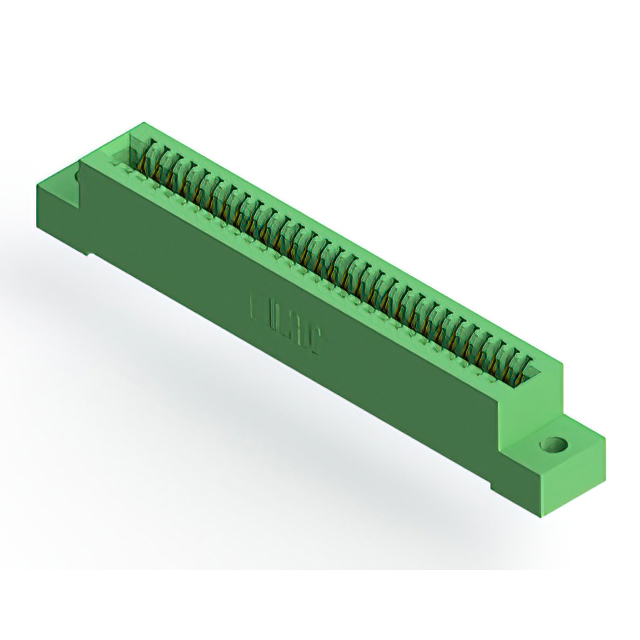

EDAC Inc. 325-029-520-109	Diallyl Phthalate (DAP)	1	Gold	Green	29	0.1 "	2.54 mm	29	Non Specified - Single Edge	0.25 Ám	10 Áin	Single	Cantilever	1	Copper Alloy	-65 ░C	125 °C	Female	Solder	3.18 mm	0.125 in	Through Hole	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm

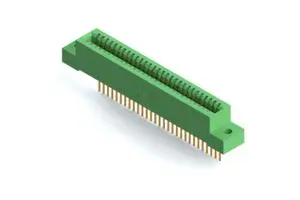

EDAC Inc. 325-029-540-109	Diallyl Phthalate (DAP)	1	Gold	Green	29	0.1 "	2.54 mm	29	Non Specified - Single Edge	0.25 Ám	10 Áin	Single	Cantilever	1	Copper Alloy	-65 ░C	125 °C	Female	Wire Wrap	3.18 mm	0.125 in	Through Hole	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm

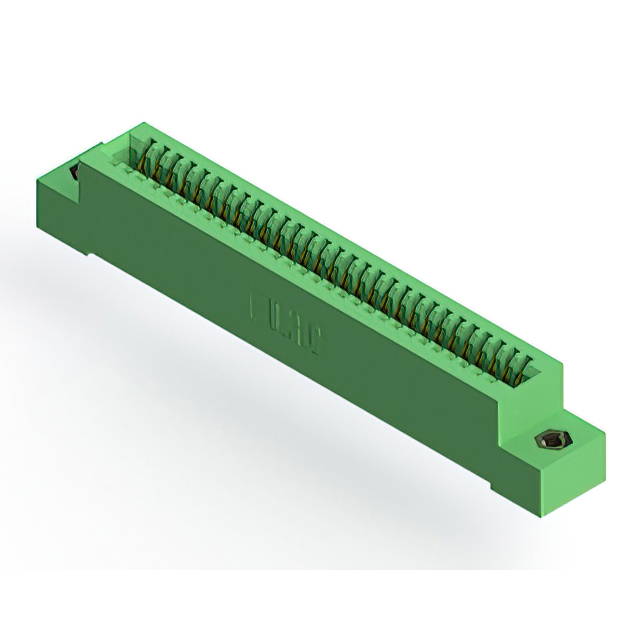

EDAC Inc. 325-029-520-108	Diallyl Phthalate (DAP)	1	Gold	Green	29	0.1 "	2.54 mm	29	Non Specified - Single Edge	0.25 Ám	10 Áin	Single	Cantilever	1	Copper Alloy	-65 ░C	125 °C	Female	Solder	3.18 mm	0.125 in	Through Hole	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 325-029-540-107	Diallyl Phthalate (DAP)	1	Gold	Green	29	0.1 "	2.54 mm	29	Non Specified - Single Edge	0.25 Ám	10 Áin	Single	Cantilever	1	Copper Alloy	-65 ░C	125 °C	Female	Wire Wrap	3.18 mm	0.125 in	Through Hole	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 325-029-540-108	Diallyl Phthalate (DAP)	1	Gold	Green	29	0.1 "	2.54 mm	29	Non Specified - Single Edge	0.25 Ám	10 Áin	Single	Cantilever	1	Copper Alloy	-65 ░C	125 °C	Female	Wire Wrap	3.18 mm	0.125 in	Through Hole	4-40 Flush Mount Threaded Insert Top Opening

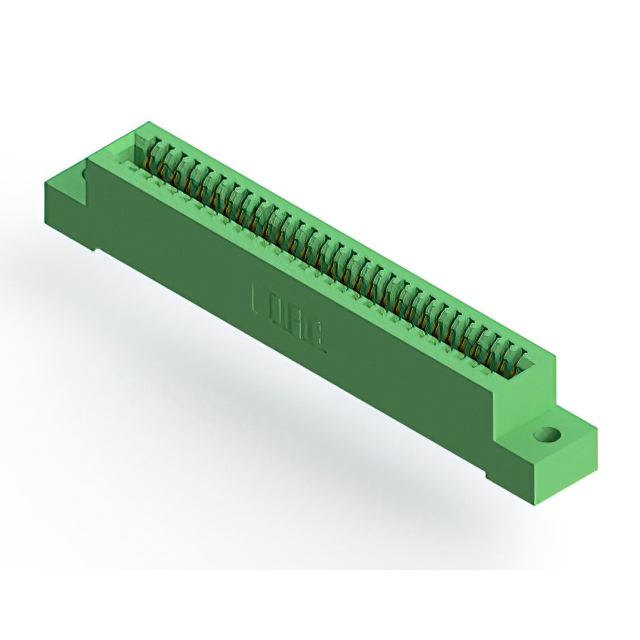

EDAC Inc. 325-029-500-109	Diallyl Phthalate (DAP)	1	Gold	Green	29	0.1 "	2.54 mm	29	Non Specified - Single Edge	0.25 Ám	10 Áin	Single	Cantilever	1	Copper Alloy	-65 ░C	125 °C	Female	Solder Eyelet(s)	3.18 mm	0.125 in	Through Hole	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm
