3256 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN TERM RECT 4/0 AWG
| Part | Insulation | Wire Gauge | Termination | Width - Outer Edges [y] | Width - Outer Edges [y] | Contact Material | Mounting Type | Contact Finish | Terminal Type | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Length - Overall | Length - Overall | Terminal Style | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Tab Thickness | Tab Thickness | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Stud/Tab Size | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

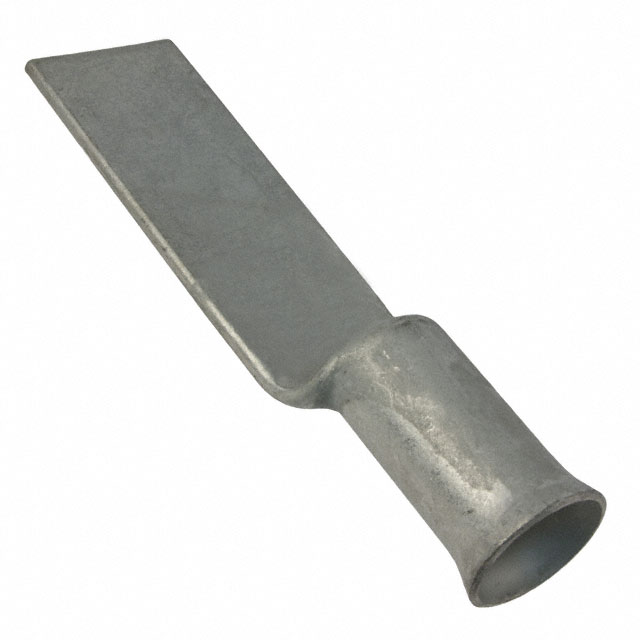

 TE Connectivity Raychem Cable Protection | Non-Insulated | 4 aught AWG | Barrel Crimp | 30.23 mm | 1.19 in | Copper | Free Hanging (In-Line) | Tin | Standard | 24.89 mm | 0.98 " | 125.48 mm | 4.94 in | No Stud Hole | 16.46 mm | 0.648 in | 0.13 in | 3.3 mm | |||||

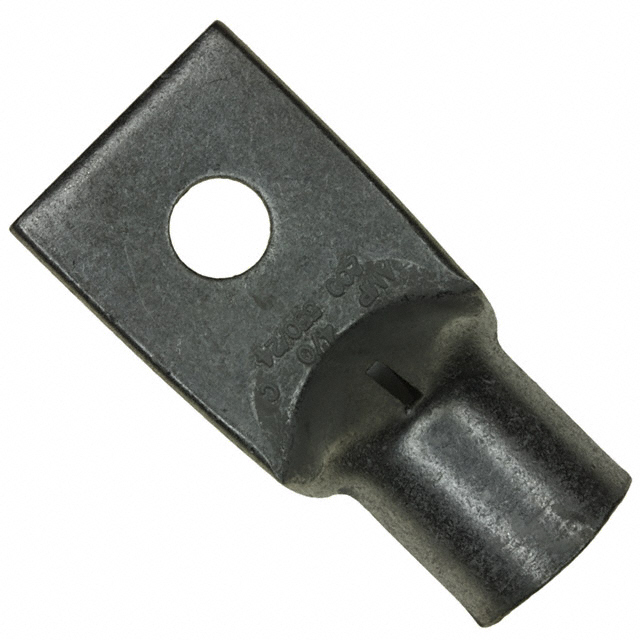

 TE Connectivity Raychem Cable Protection | Non-Insulated | 4 aught AWG | Barrel Crimp | 30.23 mm | 1.19 in | Copper | Free Hanging (In-Line) | Tin | Standard | 20.5 mm | 0.807 in | Single Stud Hole | 16.46 mm | 0.648 in | 0.13 in | 3.3 mm | 9.91 mm | 0.39 in | 3/8 Stud | 2.45 in | 62.23 mm |
