1515 Series
Manufacturer: Curtis Industries
Beta
⌘K

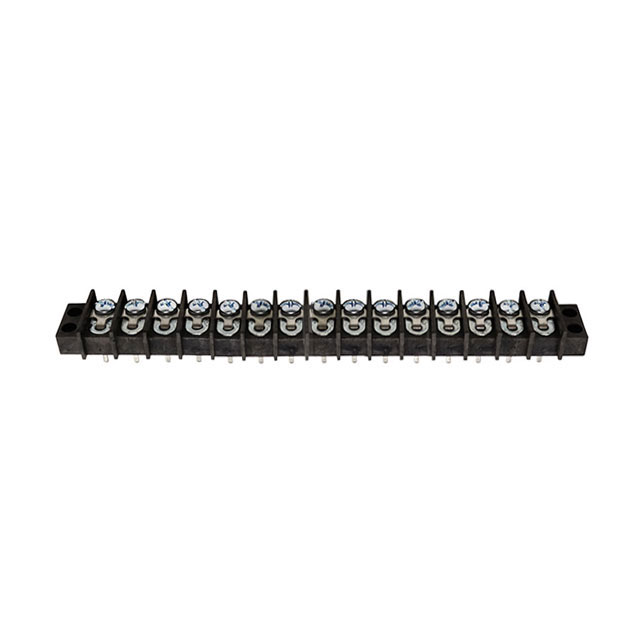

CONN BARRIER STRP 15CIRC 0.375"
| Part | Material Flammability Rating | Material - Insulation | Terminal Screw Material | Mounting Type | Operating Temperature | Number of Rows [custom] | Barrier Type | Terminal Block Type | Number of Wire Entries | Bottom Termination | Pitch | Pitch | Top Termination | Features | Wire Gauge [Max] | Wire Gauge [Min] | Current Rating (Amps) | Number of Circuits | Terminal Screw Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Curtis Industries | UL94 V-0 | Polyphenylene Oxide (PPO) | Steel | Chassis Panel Through Hole | 110 °C | 2 | 2 Wall (Dual) | Barrier Block | 30 | Wire Wrap | 9.53 mm | 0.375 in | Screws | Flange | 22 AWG | 10 AWG | 20 A | 15 | |
 Curtis Industries | UL94 V-0 | Polyphenylene Oxide (PPO) | Steel | Chassis Panel Through Hole | 110 °C | 2 | 2 Wall (Dual) | Barrier Block | 30 | PC Pin | 9.53 mm | 0.375 in | Screws | Flange | 22 AWG | 10 AWG | 20 A | 15 | |
 Curtis Industries | UL94 V-0 | Polyphenylene Oxide (PPO) | Chassis Panel | 110 °C | 2 | 2 Wall (Dual) | Barrier Block | 30 | Closed | 9.53 mm | 0.375 in | Dual Screws with Solder Lugs | Flange | 22 AWG | 10 AWG | 20 A | 15 | Tin | |
 Curtis Industries | UL94 V-0 | Polyphenylene Oxide (PPO) | Chassis Panel | 110 °C | 2 | 2 Wall (Dual) | Barrier Block | 30 | Closed | 9.53 mm | 0.375 in | Screws with Solder Lugs Single | Flange | 22 AWG | 10 AWG | 20 A | 15 | Tin |
