BD50FA1MG-M Series

100mA 5V, Fixed Output, High-Accuracy LDO Regulator for Automotive

Catalog

100mA 5V, Fixed Output, High-Accuracy LDO Regulator for Automotive

Part	Protection Features	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	Supplier Device Package	Voltage Dropout (Max) [Max]	Output Configuration	Control Features	Current - Output	Number of Regulators	Grade	Mounting Type	Voltage - Input (Max) [Max]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Qualification	Package / Case	Current - Supply (Max) [Max]
Rohm Semiconductor BD50FA1MG-MTR	Over Current Over Temperature Reverse Polarity	450 µA	5 V	5-SSOP	3 V	Positive	Enable	100 mA	1	Automotive	Surface Mount	25 V	1.81 mOhm	105 °C	-40 °C	AEC-Q100	SC-74A SOT-753

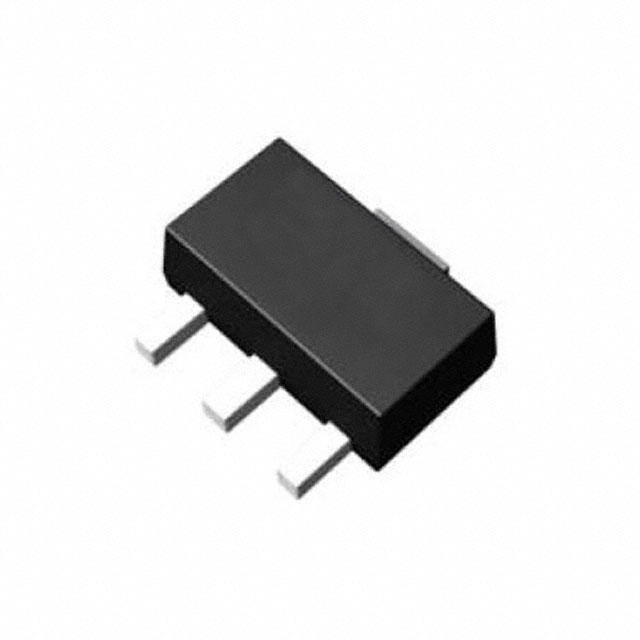

Rohm Semiconductor BD50FA1FP3-ZTL	Over Current Over Temperature Soft Start		5 V	SOT-89-3	3 V	Positive		100 mA	1		Surface Mount	25 V	1.81 mOhm	85 C	-25 °C		TO-243AA	450 µA

Catalog

100mA 5V, Fixed Output, High-Accuracy LDO Regulator for Automotive

Key Features

• AEC-Q100 Qualified, Built-in high accuracy reference voltage circuit, Built-in Over current protection circuit (OCP), Built-in Temperature protection circuit (TSD), Zero &Micro;A shutdown mode, Soft start function

Description

BD50FA1FP3 is an LDO regulator with output current capability of 0.1A. The output voltage is 5.0V with ±1% accuracy. The SOT89-3K package is most suitable for heat dissipation. As protective function to prevent IC from destruction, this chip has built-in over current protection circuit to protect the device when output is shorted, and built-in thermal shutdown circuit to protect the IC during thermal over load conditions. This product can be used in wide variety of digital appliances. This regulator can use ceramic capacitor, which have smaller size and longer life than other capacitors.
