CUA48 Series

Catalog

CONN PLG HSG FMALE 8P INLINE RA

Part	Shell Finish	Features	Contact Shape	Insert Material	Includes Total Count	Includes	Shell Material	Ingress Protection Description	Ingress Protection IP Rating	Note	Mounting Type	Material Flammability Rating	Number of Positions	Position Types	Shielding	Housing Color	Orientation	Fastening Type	Type	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type

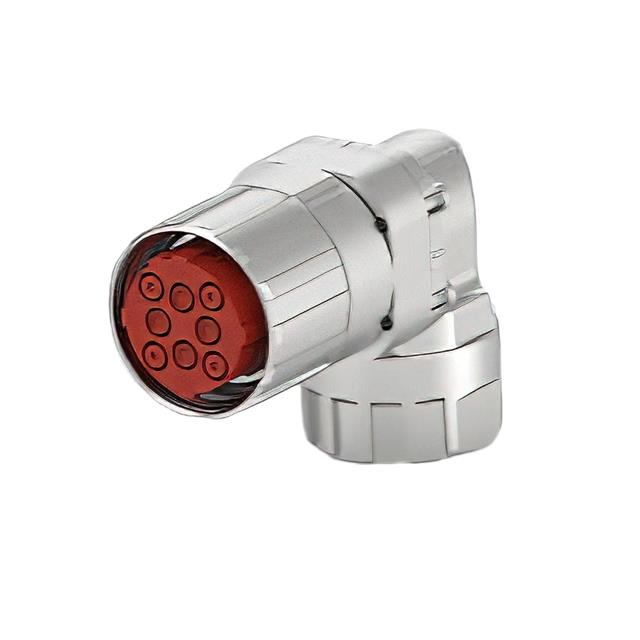

TE Intercontec CUA481N00450050000	Nickel	Backshell Cable Clamp Coupling Nut Rotatable	Circular	Nylon 6/6 PA66 Polyamide	3 pcs	Backshell Cable Clamp Connector	Zinc Die Cast	Dust Tight Water Resistant Waterproof	IP66 IP67	Contacts Not Included	Free Hanging (In-Line) Right Angle	UL94 V-0	8	PE Power	Shielded	Silver	Keyed	Push-Twist	For Female Sockets	-20 °C	130 °C	Plug Housing
TE Intercontec CUA481N00440050000	Nickel	Backshell Cable Clamp Coupling Nut Rotatable	Circular	Nylon 6/6 PA66 Polyamide	3 pcs	Backshell Cable Clamp Connector	Zinc Die Cast	Dust Tight Water Resistant Waterproof	IP66 IP67	Contacts Not Included	Free Hanging (In-Line) Right Angle	UL94 V-0	8	PE Power	Shielded	Silver	Keyed	Push-Twist	For Female Sockets	-20 °C	130 °C	Plug Housing

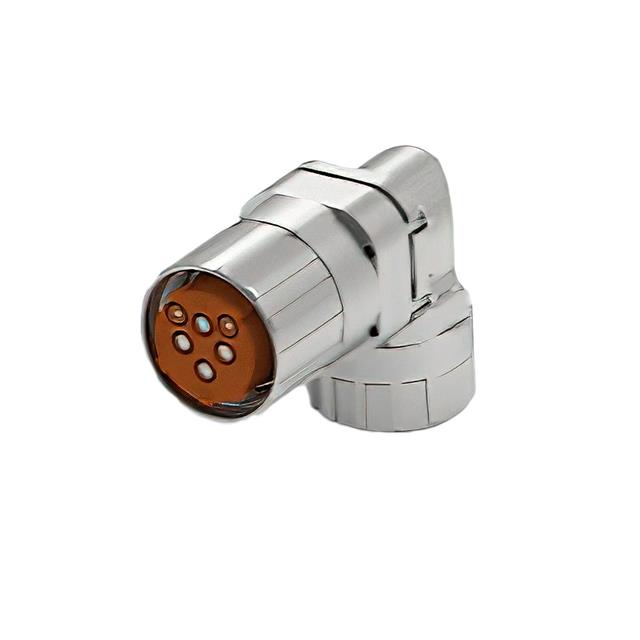

TE Intercontec CUA480N00440050000	Nickel	Backshell Cable Clamp Coupling Nut Rotatable	Circular	Nylon 6/6 PA66 Polyamide	3 pcs	Backshell Cable Clamp Connector	Zinc Die Cast	Dust Tight Water Resistant Waterproof	IP66 IP67	Contacts Not Included	Free Hanging (In-Line) Right Angle	UL94 V-0	6	PE Power	Shielded	Silver	Keyed	Push-Twist	For Female Sockets	-20 °C	130 °C	Plug Housing
TE Intercontec CUA481N00450030000	Nickel	Backshell Cable Clamp Coupling Nut Rotatable	Circular	Nylon 6/6 PA66 Polyamide	3 pcs	Backshell Cable Clamp Connector	Zinc Die Cast	Dust Tight Water Resistant Waterproof	IP66 IP67	Contacts Not Included	Free Hanging (In-Line) Right Angle	UL94 V-0	8	PE Power	Shielded	Silver	Keyed	Push-Twist	For Female Sockets	-20 °C	130 °C	Plug Housing
