S3D06065 Series

Catalog

DIODE SCHOTTKY 650V 24A 5DFN

Part	Current - Average Rectified (Io)	Capacitance @ Vr, F	Supplier Device Package	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If [Max]	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Package / Case	Technology	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr
SMC Diode Solutions S3D06065L	24 A	382 pF	5-DFN (8x8)	200 mA 500 ns	650 V	175 ░C	-55 °C	1.7 V	6 A	Surface Mount	4-VSFN Exposed Pad	SiC (Silicon Carbide) Schottky
SMC Diode Solutions S3D06065F	6 A	382 pF	ITO-220AC (TO-220-2F)	500 mA	650 V	175 ░C	-55 °C	1.7 V	6 A	Through Hole	TO-220-2 Full Pack	SiC (Silicon Carbide) Schottky	0 ns	8 µA
SMC Diode Solutions S3D06065I	6 A	382 pF	TO-220-Isolation	500 mA	650 V	175 ░C	-55 °C	1.7 V	6 A	Through Hole	TO-220-2 Isolated Tab	SiC (Silicon Carbide) Schottky	0 ns	8 µA
SMC Diode Solutions S3D06065G	6 A	382 pF	D2PAK	500 mA	650 V	175 ░C	-55 °C	1.7 V	6 A	Surface Mount	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	SiC (Silicon Carbide) Schottky	0 ns	8 µA

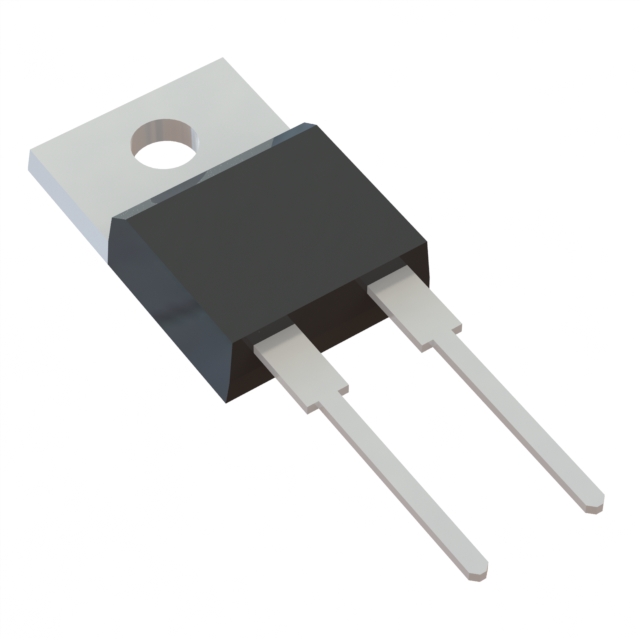

SMC Diode Solutions S3D06065A	6 A	382 pF	TO-220AC (TO-220-2)	500 mA	650 V	175 ░C	-55 °C	1.7 V	6 A	Through Hole	TO-220-2	SiC (Silicon Carbide) Schottky	0 ns	8 µA
SMC Diode Solutions S3D06065E	6 A	382 pF	DPAK	500 mA	650 V	175 ░C	-55 °C	1.7 V	6 A	Surface Mount	DPAK (2 Leads + Tab) SC-63 TO-252-3	SiC (Silicon Carbide) Schottky	0 ns	8 µA
