BUCHANAN WireMate Two-Piece Poke-In Series Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

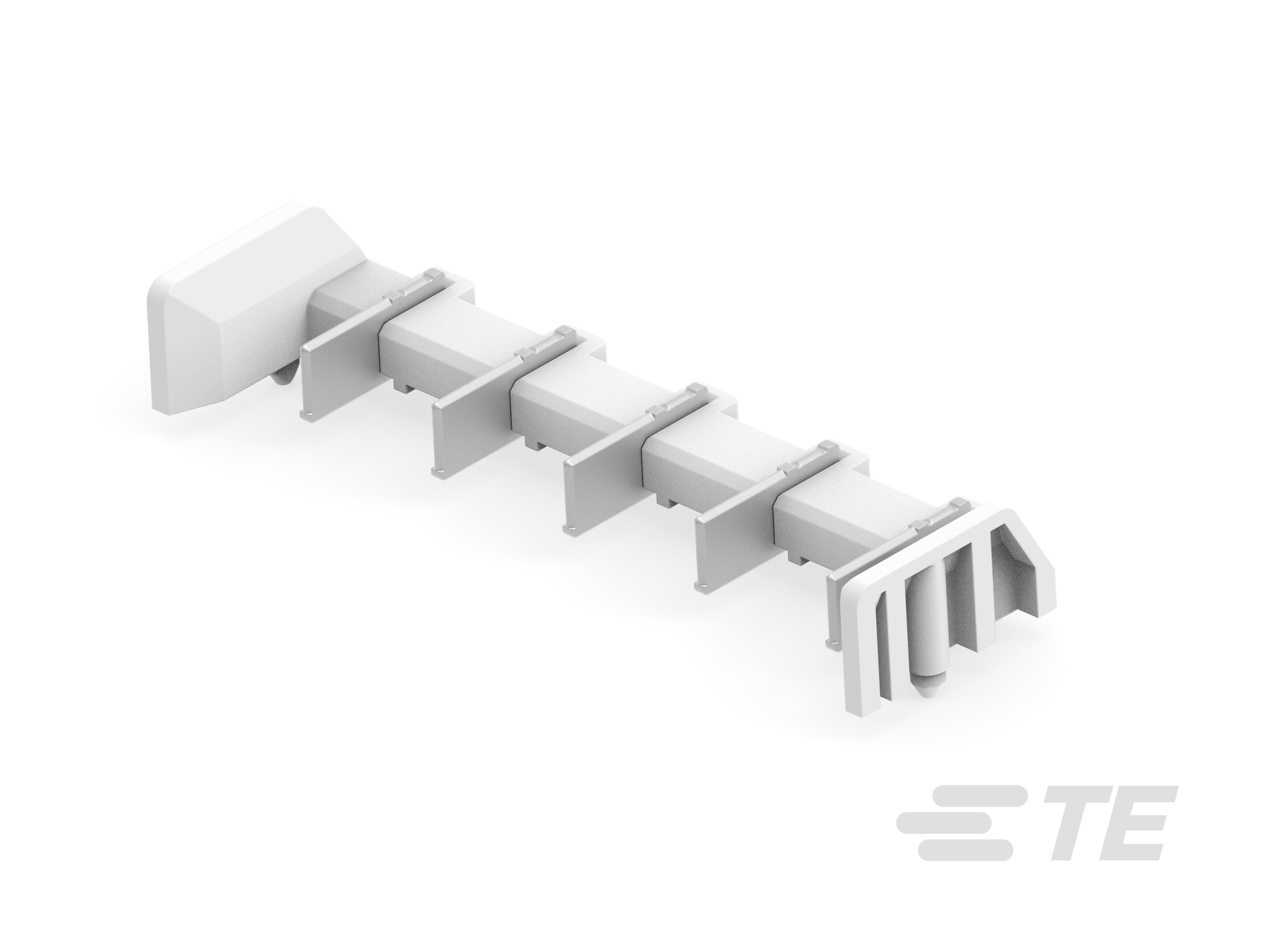

TWO-PIECE POKE-IN, 8MM HEADER, 5 POS
| Part | Color | Features | Number of Positions | Pitch | Pitch | Positions Per Level | Mounting Type | Type | Termination Style | Voltage - UL | Operating Temperature [Max] | Operating Temperature [Min] | Contact Mating Finish | Header Orientation | Number of Levels | Plug Wire Entry | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Positions Per Level [custom] | Contact Material | Insulation Height [z] | Insulation Height [z] | Material Flammability Rating | Housing Material | Insulation Height | Insulation Height | Wire Strip Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Natural | Board Guide | 5 | 0.315 in | 8 mm | 5 | Surface Mount | Header Blade Pins | Solder | 250 V | 85 °C | -40 C | Tin | 90° Right Angle | 1 | ||||||||||||||
 TE Connectivity AMP Connectors | Natural | Lever Actuated | 8 | 0.315 in | 8 mm | 8 | Panel Mount Snap-In | Plug Blade Sockets | Screwless | 250 V | 85 °C | -40 C | Tin | 1 | 180 ° | 0.2 mm² | 0.82 mm² | 24 AWG | 18 AWG | ||||||||||

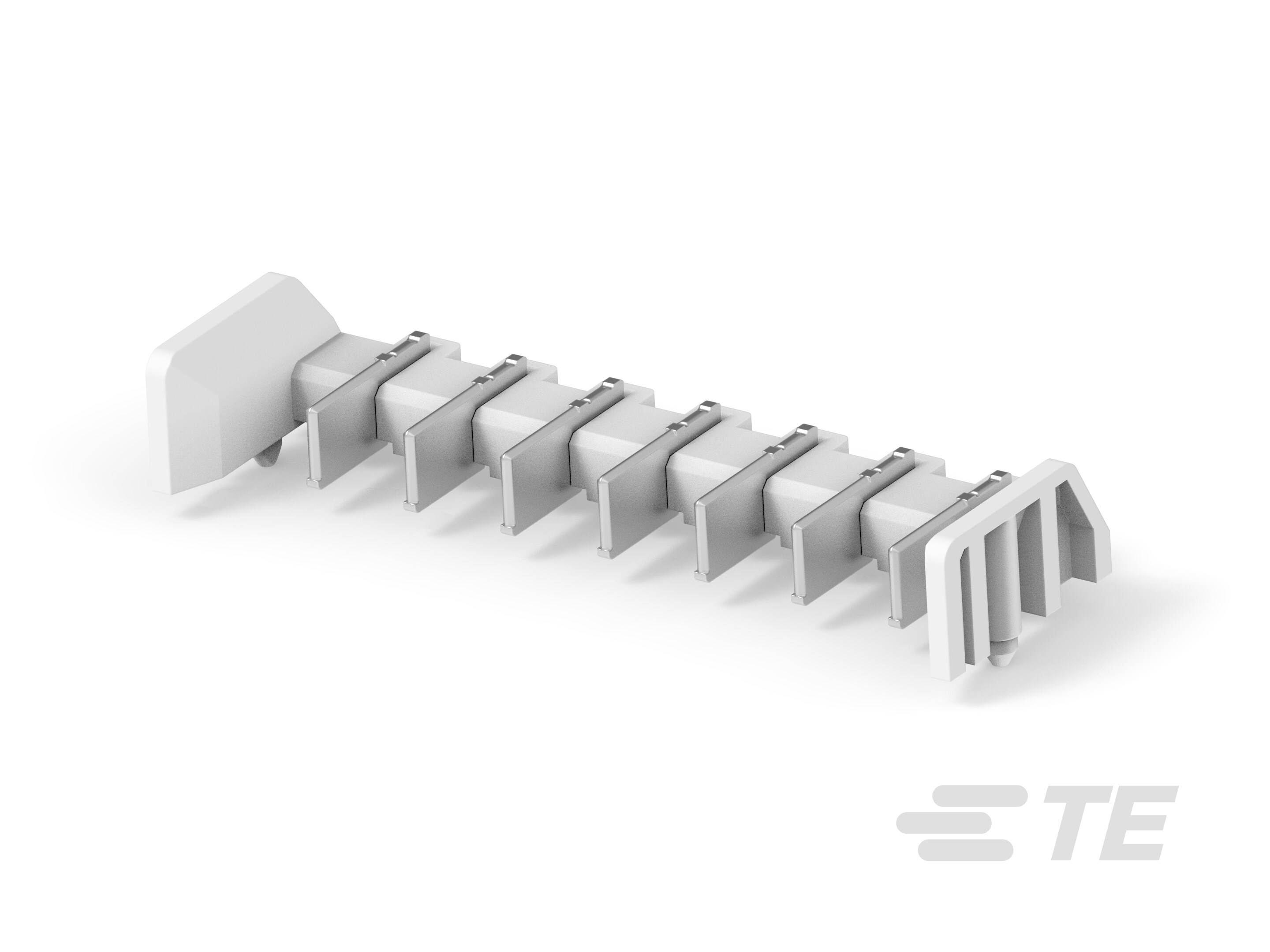

 TE Connectivity AMP Connectors | Natural | Board Guide | 7 | 0.197 in | 5 mm | Surface Mount | Header Blade Pins | Solder | 250 V | 85 °C | -40 C | Tin | 90° Right Angle | 1 | 7 | ||||||||||||||
 TE Connectivity AMP Connectors | Natural | Lever Actuated | 7 | 0.315 in | 8 mm | Panel Mount Snap-In | Plug Blade Sockets | Screwless | 250 V | 85 °C | -40 C | Tin | 1 | 180 ° | 0.2 mm² | 0.82 mm² | 24 AWG | 18 AWG | 7 | ||||||||||
 TE Connectivity AMP Connectors | Natural | Board Guide | 6 | 0.315 in | 8 mm | 6 | Surface Mount | Header Blade Pins | Solder | 250 V | 85 °C | -40 C | Tin | 90° Right Angle | 1 | Copper Alloy | 0.252 " | 6.4 mm | UL94 V-0 | Glass Filled Liquid Crystal Polymer (LCP) | |||||||||

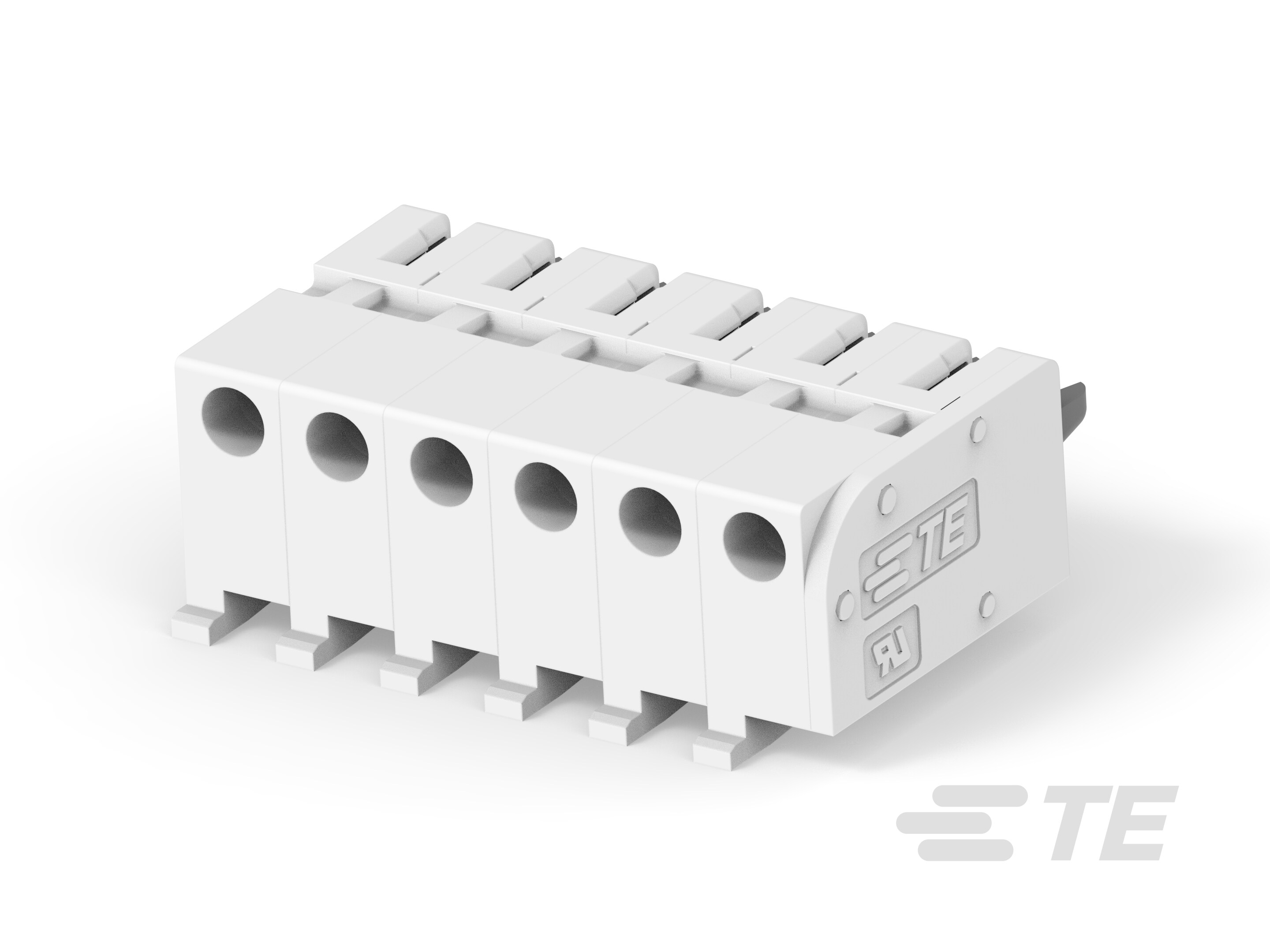

 TE Connectivity AMP Connectors | Natural | Lever Actuated | 6 | 0.197 in | 5 mm | 6 | Panel Mount Snap-In | Plug Blade Sockets | Screwless | 250 V | 85 °C | -40 C | Tin | 1 | 180 ° | 0.2 mm² | 0.82 mm² | 24 AWG | 18 AWG | Copper Alloy | UL94 V-0 | Polybutylene Terephthalate (PBT) Glass Filled | 17 mm | 0.669 in | 10 mm | ||||

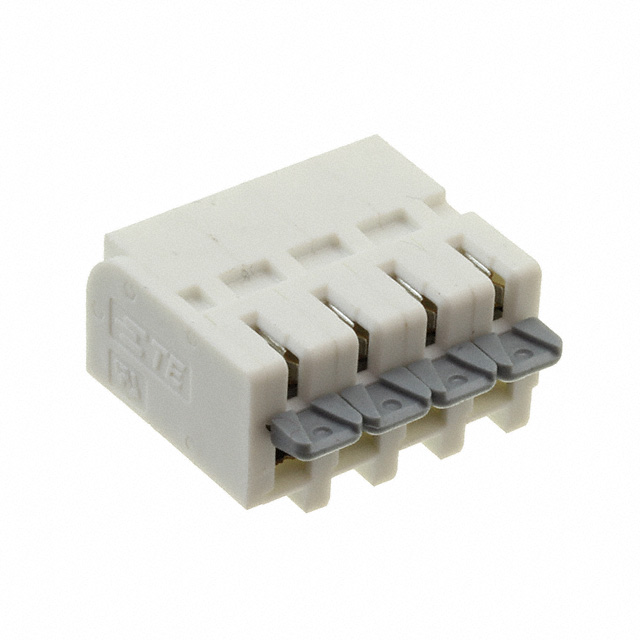

 TE Connectivity AMP Connectors | Natural | Lever Actuated | 4 | 0.197 in | 5 mm | 4 | Panel Mount Snap-In | Plug Blade Sockets | Screwless | 250 V | 85 °C | -40 C | Tin | 1 | 180 ° | 0.2 mm² | 0.82 mm² | 24 AWG | 18 AWG | Copper Alloy | UL94 V-0 | Polybutylene Terephthalate (PBT) Glass Filled | 17 mm | 0.669 in | 10 mm | ||||
 TE Connectivity AMP Connectors | Natural | Lever Actuated | 2 | 0.197 in | 5 mm | 2 | Panel Mount Snap-In | Plug Blade Sockets | Screwless | 250 V | 85 °C | -40 C | Tin | 1 | 180 ° | 0.2 mm² | 0.82 mm² | 24 AWG | 18 AWG | Copper Alloy | UL94 V-0 | Polybutylene Terephthalate (PBT) Glass Filled | 17 mm | 0.669 in | 10 mm | ||||

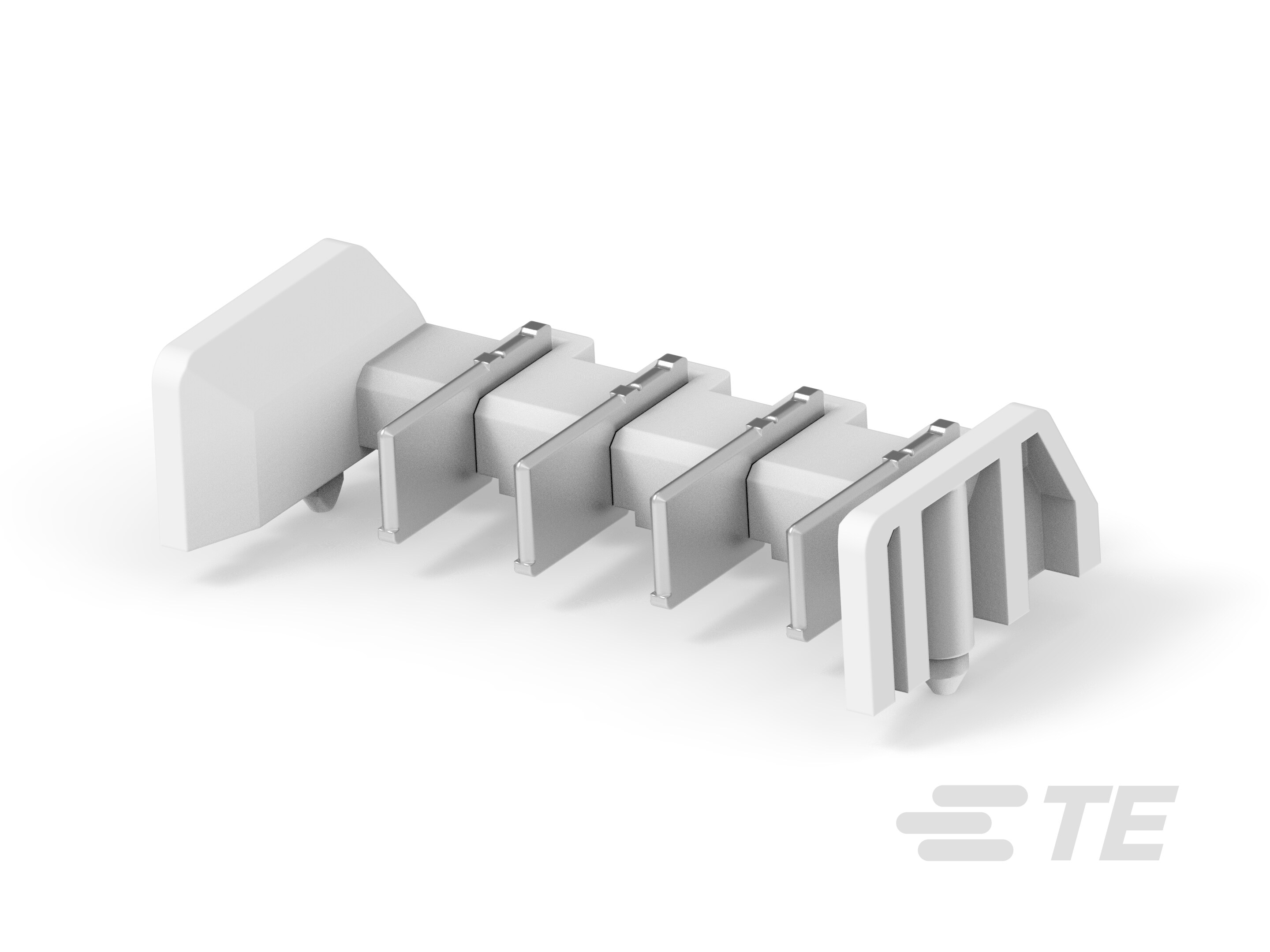

 TE Connectivity AMP Connectors | Natural | Board Guide | 4 | 0.197 in | 5 mm | 4 | Surface Mount | Header Blade Pins | Solder | 250 V | 85 °C | -40 C | Tin | 90° Right Angle | 1 | Copper Alloy | 0.252 " | 6.4 mm | UL94 V-0 | Glass Filled Liquid Crystal Polymer (LCP) | |||||||||

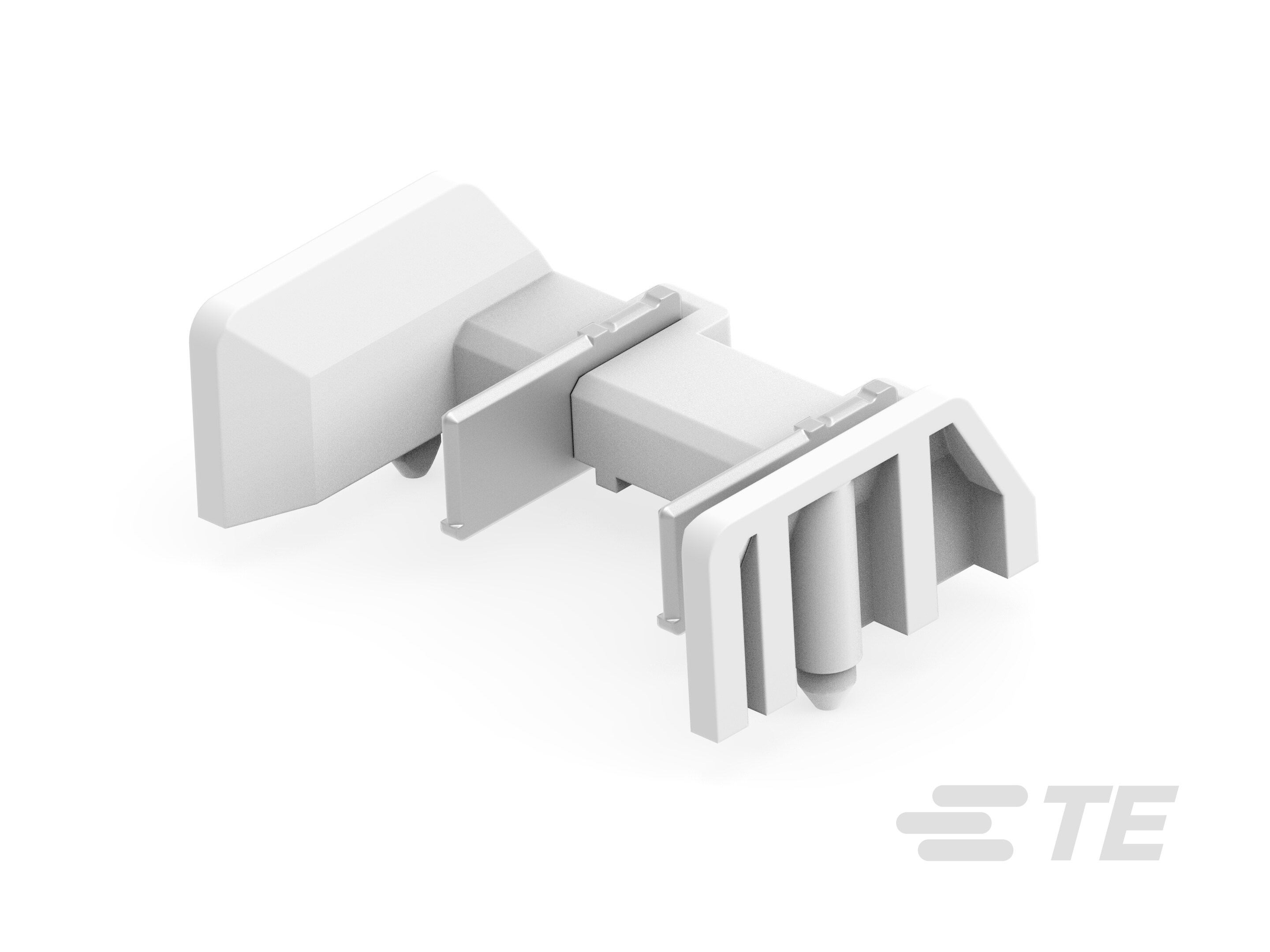

 TE Connectivity AMP Connectors | Natural | Board Guide | 2 | 0.315 in | 8 mm | 2 | Surface Mount | Header Blade Pins | Solder | 250 V | 85 °C | -40 C | Tin | 90° Right Angle | 1 |
