N-Channel Power MOSFET, 1500V, 2.5A, 10.5Ω
Key Features
• ON-ResistanceRDS(on)= 8Ω (Typ.)
• Input CapacitanceCiss= 650pF (Typ.)
• 10V Drive
Description
AI

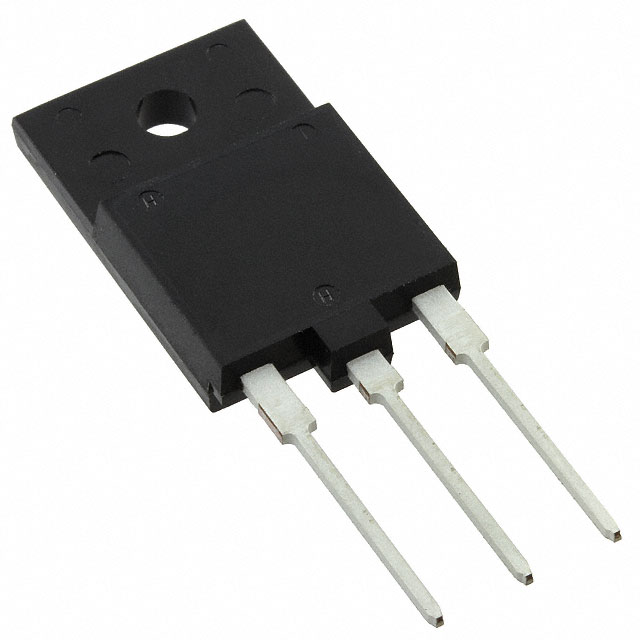

NDUL03N150C is a Power MOSFET, 1500V, 2.5A, 10.5Ω, N-Channel Single.
Beta
⌘K
N-Channel Power MOSFET, 1500V, 2.5A, 10.5Ω
N-Channel Power MOSFET, 1500V, 2.5A, 10.5Ω
| Part | Current - Continuous Drain (Id) @ 25°C | Drain to Source Voltage (Vdss) | Drive Voltage (Max Rds On, Min Rds On) | Power Dissipation (Max) | Mounting Type | Package / Case | Rds On (Max) @ Id, Vgs | Gate Charge (Qg) (Max) @ Vgs | Operating Temperature | Technology | Input Capacitance (Ciss) (Max) @ Vds | FET Type | Supplier Device Package | Vgs (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | 2.5 A | 1500 V | 10 V | 3 W 50 W | Through Hole | TO-3PL | 10.5 Ohm | 34 nC | 150 °C | MOSFET (Metal Oxide) | 650 pF | N-Channel | TO-3P(L) | 30 V |
