D4NL-4AF Series

Catalog

INTERLOCK SOLENOID RELEASE DPST

Part	Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Holding Force	Features	Ingress Protection	Actuator Type	Voltage Rating	Approval Agency	Termination Style	Current Rating (Amps)	Voltage - Supply

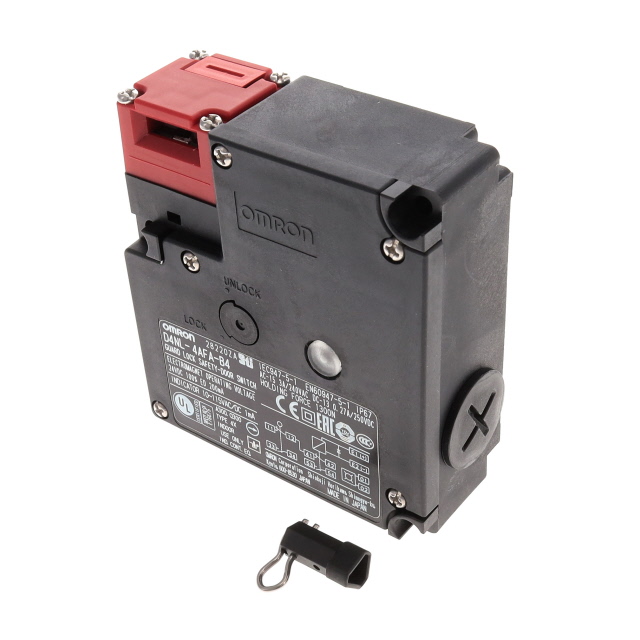

Omron Automation and Safety D4NL-4AFA-B4	Solenoid Release	DPST-NO/NC (DB/DM) x 2	55 °C	-10 °C	133 kgf	Status Indicator	IP67 - Dust Tight Waterproof	Panel Disconnect	240 VAC 250 V	CCC CE cULus TUV	Screw Terminal	3 A 270 mA	24 V
Omron Automation and Safety D4NL-4AFG-B4-NPT	Solenoid Locking	DPST-NO/NC (DB/DM) x 2	55 °C	-10 °C	133 kgf	Status Indicator	IP67 - Dust Tight Waterproof	Panel Disconnect	240 VAC 250 V	CCC CE cULus TUV	Screw Terminal	3 A 270 mA	24 V
Omron Automation and Safety D4NL-4AFA-B4-NPT	Solenoid Release	DPST-NO/NC (DB/DM) x 2	55 °C	-10 °C	133 kgf	Status Indicator	IP67 - Dust Tight Waterproof	Panel Disconnect	240 VAC 250 V	CCC CE cULus TUV	Screw Terminal	3 A 270 mA	24 V
