725-025 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 25POS 0.100
| Part | Material - Insulation | Termination Rows | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Termination | Card Type | Gender | Read Out | Contact Finish | Pitch | Pitch | Color | Number of Positions | Number of Rows | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

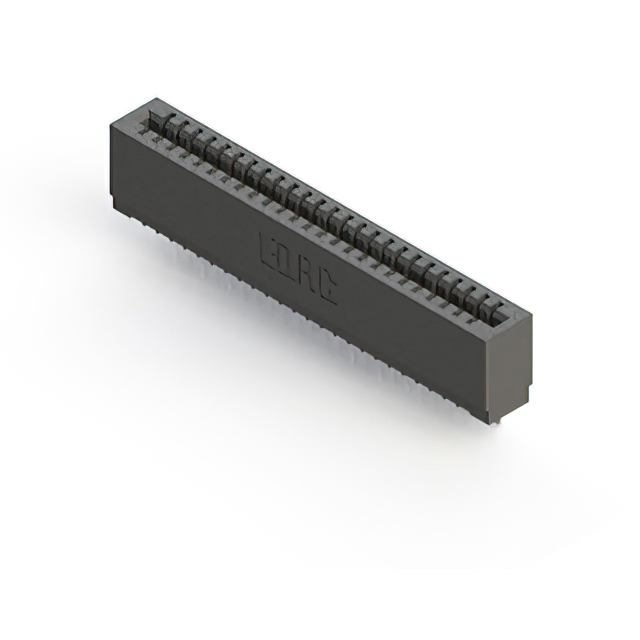

 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 30 Áin | 0.76 Ám | Through Hole | Press-Fit | Non Specified - Single Edge | Female | Single | Gold | 0.1 " | 2.54 mm | Black | 25 | 1 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 25 | -40 C | 105 ░C |

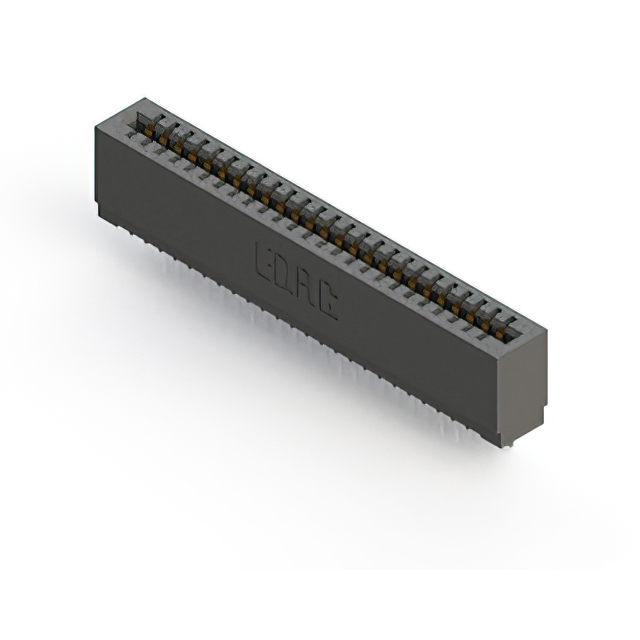

 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 30 Áin | 0.76 Ám | Through Hole | Press-Fit Wire Wrap | Non Specified - Single Edge | Female | Single | Gold | 0.1 " | 2.54 mm | Black | 25 | 1 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 25 | -40 C | 105 ░C |
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 30 Áin | 0.76 Ám | Through Hole | Press-Fit Wire Wrap | Non Specified - Single Edge | Female | Single | Gold | 0.1 " | 2.54 mm | Black | 25 | 1 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 25 | -40 C | 105 ░C |
