POE29W Series
Manufacturer: Phihong USA
Beta
⌘K

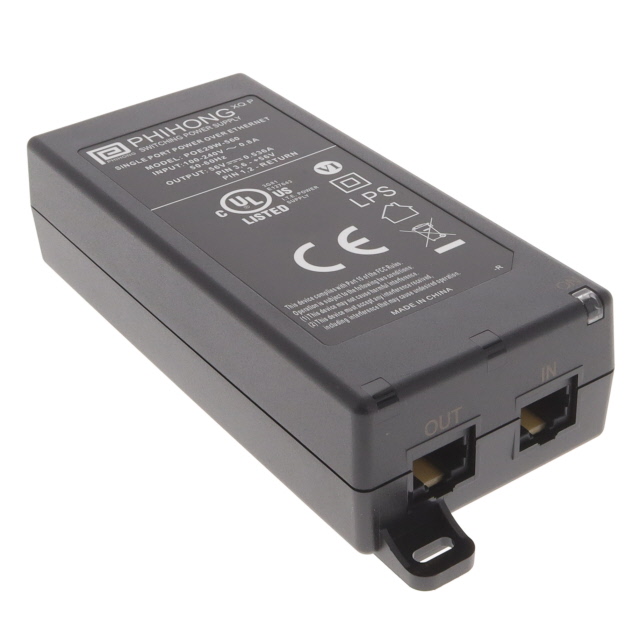

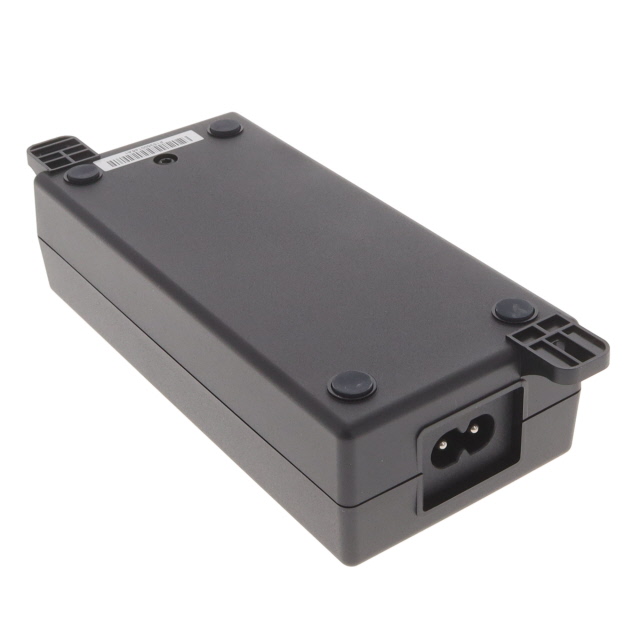

POE INJECTOR DESKTOP 56V
| Part | Output Connector | Input Connector | Voltage - Output | Data Rate | Number of Ports | Approval Agency | Compliance | Current - Output | Features | Efficiency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Input [Max] | Voltage - Input [Min] | Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) - Per Port |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phihong USA | RJ45 (Data) Wire Leads (Power) | IEC 320-C8 | 56 V | 10 Mbps 100 Mbps 1000 Mbps | 1 | CE cULus | IEEE802.3af | 540 mA | OCP OVP SCP | Level VI | 65 mm | 5.51 in | 2.55 " | 140 mm | 36 mm | 1.42 " | 264 VAC | 90 VAC | Passive Injector | Desktop | -20 ░C | 50 °C | 30 W |
