680S13W Series
Manufacturer: NorComp Inc.
Beta
⌘K
COMBINATION LAYOUT D SUB CONNECTOR, SEAL-D, IP68, SEAL-D 680S SERIES, DC-13W6, PLUG, 13 CONTACTS
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Color | Dielectric Material | Contact Material | Connector Style | Contact Finish | Shell Material, Finish | Contact Type | Mounting Type | Current Rating (Amps) | Number of Rows [custom] | Material Flammability Rating | Features | Connector Type | Ingress Protection | Flange Feature | Contact Finish Thickness | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

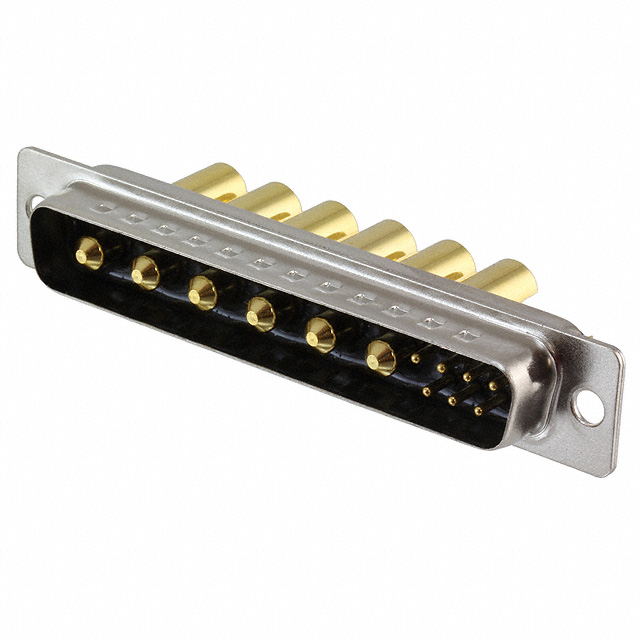

 NorComp Inc. | 155 C | -55 C | Black | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Combo D-Sub | Gold | Nickel Plated Steel | Signal and Power | Panel Mount | 5 A 40 A | 2 | UL94 V-0 | Grounding Indents | Plug Male Pins | IP67 - Dust Tight Waterproof | Housing/Shell (Unthreaded) | Flash | 13 | 4 | C DC | 13W6 | |

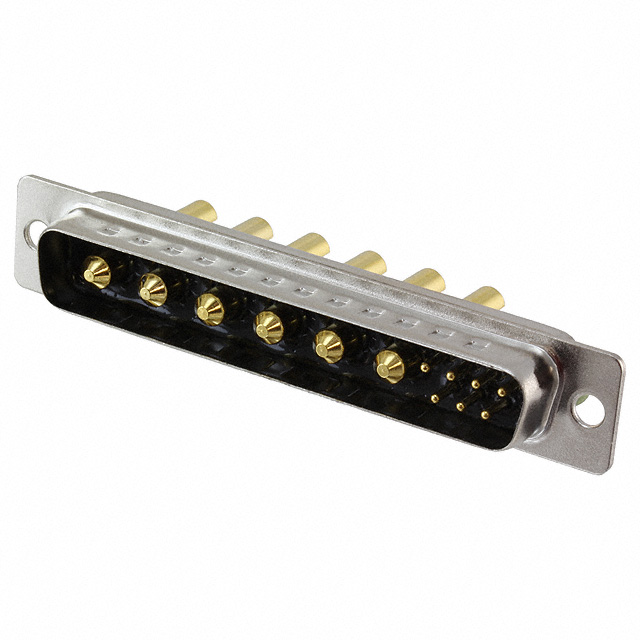

 NorComp Inc. | 155 C | -55 C | Black | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Combo D-Sub | Gold | Nickel Plated Steel | Signal and Power | Panel Mount | 2 | UL94 V-0 | Grounding Indents | Plug Male Pins | IP67 - Dust Tight Waterproof | Housing/Shell (Unthreaded) | Flash | 13 | 4 | C DC | 13W6 | 20A 5A |
