4DB Series

Catalog

CONN BARRIER STRIP 3CIRC 0.325"

Part	Mounting Type	Terminal Screw Finish	Terminal Screw Material	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Material Flammability Rating	Number of Rows	Features	Number of Wire Entries	Top Termination	Voltage Rating	Number of Circuits	Pitch	Pitch	Barrier Type	Current Rating (Amps)	Color	Bottom Termination	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Block Type	Operating Temperature	Number of Wire Entries [custom]

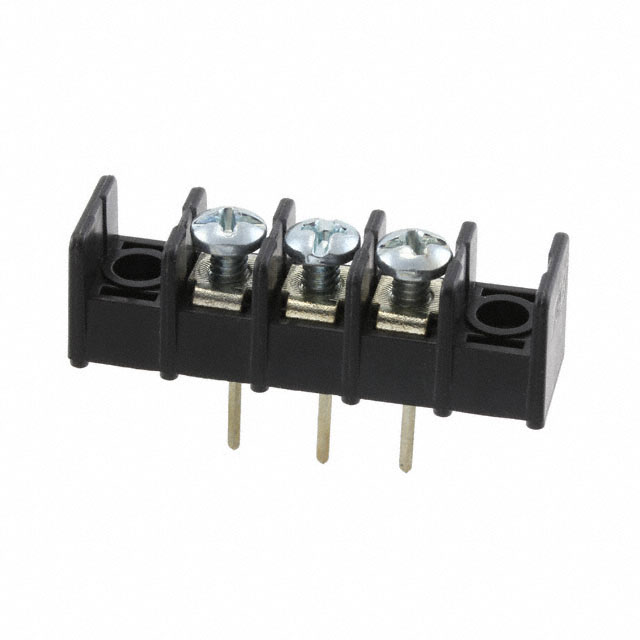

TE Connectivity AMP Connectors 4DB-W207-03	Through Hole	Tin	Copper	-40 C	105 ░C	Thermoplastic	UL94 V-0	1	Flange	3	Screws with Captive Plate	300 VDC	3	0.325 in	8.26 mm	2 Wall (Dual)	10 A	Black	Wire Wrap	22 AWG	12 AWG	Barrier Block
TE Connectivity AMP Connectors 4DB-R107-11	Right Angle Through Hole	Clear Chromate Zinc	Steel	-40 C	105 ░C	Nylon Polyamide (PA)	UL94 V-0	1		11	Screws	150 VDC	11	0.325 in	8.26 mm	2 Wall (Dual)	20 A	Black	PC Pin	22 AWG	12 AWG	Barrier Block
TE Connectivity AMP Connectors 1546734-7	Through Hole	Clear Chromate Zinc	Steel			Nylon Polyamide (PA)	UL94 V-0	1			Screws with Captive Plate	300 VDC	7	0.325 in	8.26 mm	2 Wall (Dual)	20 A	Black	PC Pin	22 AWG	12 AWG	Barrier Block	105 C	7
TE Connectivity AMP Connectors 1-1437667-4
TE Connectivity AMP Connectors 1546734-2								1		2	Screws with Captive Plate	300 VDC	2	0.325 in	8.26 mm	2 Wall (Dual)	20 A	Black	PC Pin	22 AWG	12 AWG	Barrier Block
