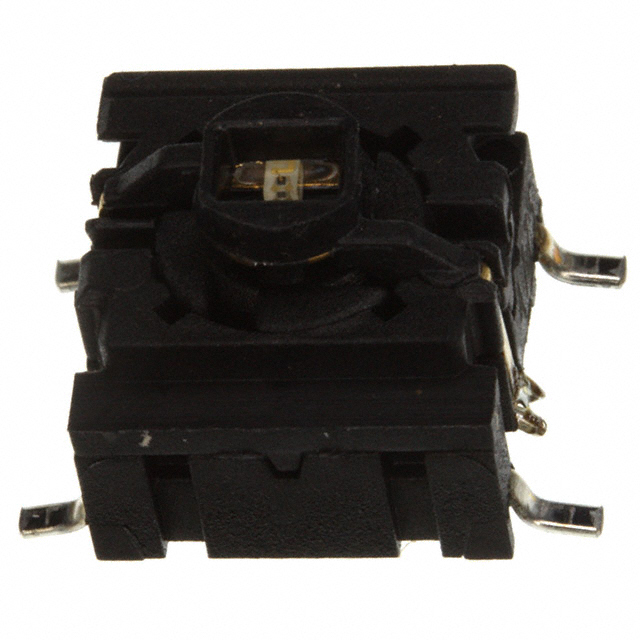

4ASH9 Series
Manufacturer: MEC Switches
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 24V
| Part | Mechanical Life | Actuator Material | Switch Travel | Actuator Orientation | Outline [x] | Outline [y] | Actuator Height off PCB, Vertical [z] | Features | Mounting Type | Contact Rating @ Voltage | Operating Force | Illumination Voltage (Nominal) | Switch Function | Illumination | Actuator Type | Illumination Type, Color | Termination Style | Ingress Protection | Circuit | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEC Switches | 10000000 Cycles | Polyphenylene Sulfide (PPS) | 1 mm | Top Actuated | 10.1 mm | 10.1 mm | 8.4 mm | Sealed - Flux Protection | Surface Mount | 0.05 A 24 VDC | 300 gf | 2.2 VDC | Off-Mom | Illuminated | Plunger for Cap | Green LED | Gull Wing | IP67 - Dust Tight Waterproof | SPST-NO | 85 °C | -30 ░C |
