178138 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

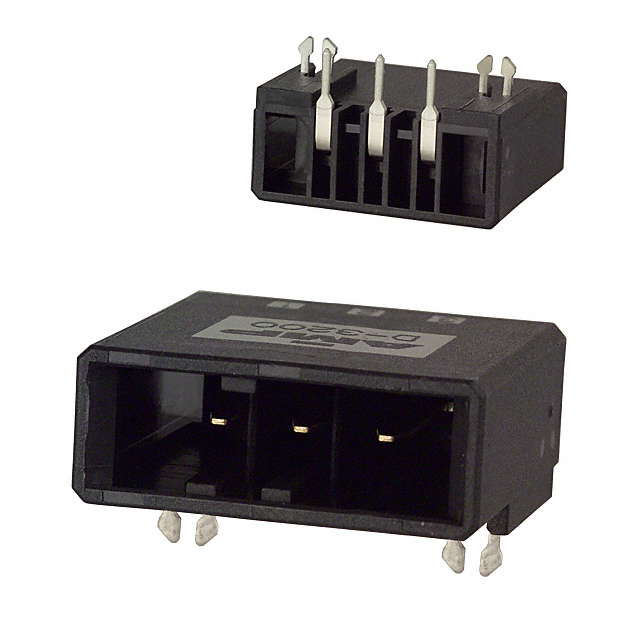

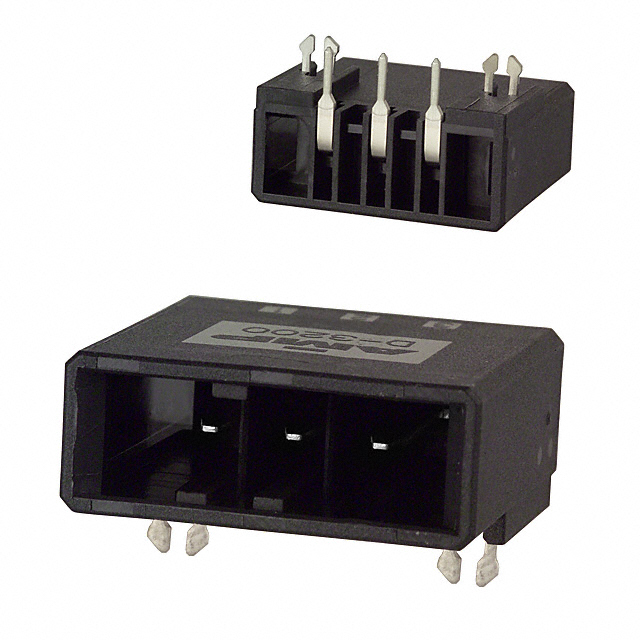

CONN HEADER R/A 3POS 5.08MM
| Part | Insulation Color | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Material Flammability Rating | Fastening Type | Contact Finish - Post | Style | Contact Length - Post [x] | Contact Length - Post [x] | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Contact Type | Insulation Material | Voltage Rating | Applications | Insulation Height | Insulation Height | Mounting Type | Contact Material | Shrouding | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Black | 1 | 105 ░C | -55 °C | Rectangular | UL94 V-0 | Detent Lock | Tin | Board to Board Cable | 0.15 in | 3.81 mm | Solder | 78.7 µin | 2 µm | Header | 5.08 mm | 0.2 in | All | Tab | Glass Filled Polyester Thermoplastic | 600 V | General Purpose Industrial | 9.35 mm | 0.368 in | Through Hole Right Angle | Copper Alloy | Shrouded - 4 Wall | |
 TE Connectivity Raychem Cable Protection | Black | 1 | 105 ░C | -55 °C | Rectangular | UL94 V-0 | Detent Lock | Tin | Board to Board Cable | 0.15 in | 3.81 mm | Solder | 30 Áin | 0.76 Ám | Header | 5.08 mm | 0.2 in | All | Tab | Glass Filled Polyester Thermoplastic | 600 V | General Purpose Industrial | 9.35 mm | 0.368 in | Through Hole Right Angle | Copper Alloy | Shrouded - 4 Wall | Gold |
