746-026 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 26POS 0.125

Part	Material - Insulation	Termination Rows	Mounting Type	Number of Positions	Color	Number of Rows	Number of Positions/Bay/Row	Card Type	Contact Material	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Read Out	Pitch	Pitch	Termination	Termination Rows [custom]	Number of Rows [custom]
EDAC Inc. 746-026-527-106	Polyester Thermoplastic	1	Through Hole	26	Black	1	26	Non Specified - Single Edge	Copper Alloy	Cantilever	30 Áin	0.76 Ám	Gold	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	3.18 mm	0.125 in	Press-Fit

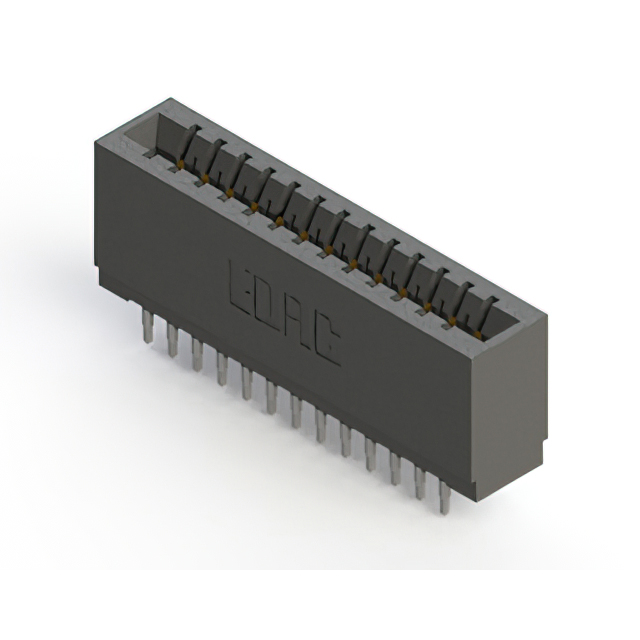

EDAC Inc. 746-026-525-201	Polyester Thermoplastic		Through Hole	26	Black		13	Non Specified - Dual Edge	Copper Alloy	Cantilever	30 Áin	0.76 Ám	Gold	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.18 mm	0.125 in	Press-Fit	2	2
EDAC Inc. 746-026-541-606	Polyester Thermoplastic		Through Hole	26	Black		13	Non Specified - Dual Edge	Copper Alloy	Cantilever	30 Áin	0.76 Ám	Gold	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.18 mm	0.125 in	Press-Fit Wire Wrap	2	2
EDAC Inc. 746-026-545-101	Polyester Thermoplastic	1	Through Hole	26	Black	1	26	Non Specified - Single Edge	Copper Alloy	Cantilever	30 Áin	0.76 Ám	Gold	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	3.18 mm	0.125 in	Press-Fit Wire Wrap

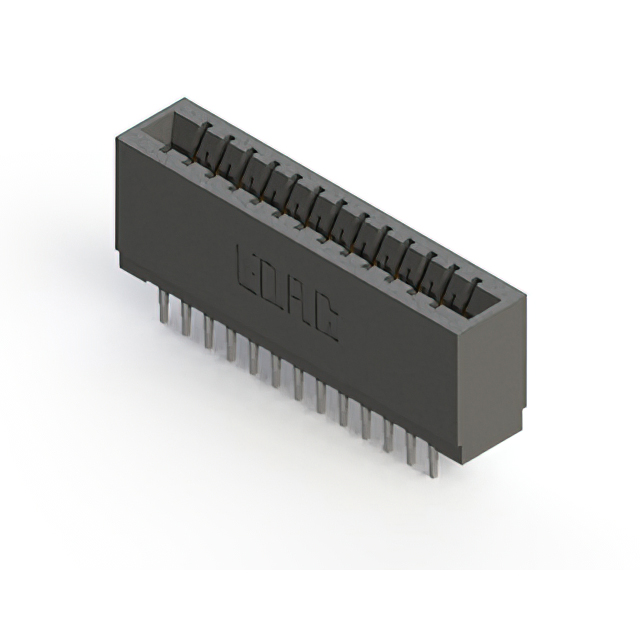

EDAC Inc. 746-026-527-201	Polyester Thermoplastic		Through Hole	26	Black		13	Non Specified - Dual Edge	Copper Alloy	Cantilever	30 Áin	0.76 Ám	Gold	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.18 mm	0.125 in	Press-Fit	2	2

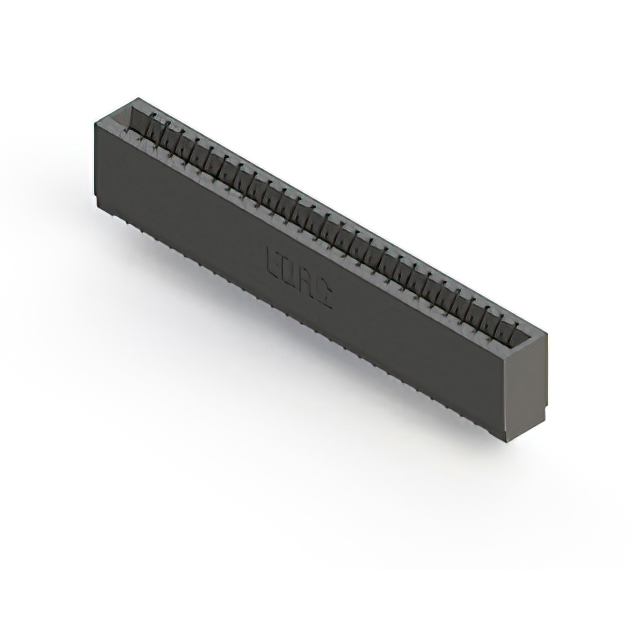

EDAC Inc. 746-026-541-501	Polyester Thermoplastic	1	Through Hole	26	Black	1	26	Non Specified - Single Edge	Copper Alloy	Cantilever	30 Áin	0.76 Ám	Gold	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	3.18 mm	0.125 in	Press-Fit Wire Wrap
EDAC Inc. 746-026-545-501	Polyester Thermoplastic	1	Through Hole	26	Black	1	26	Non Specified - Single Edge	Copper Alloy	Cantilever	30 Áin	0.76 Ám	Gold	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	3.18 mm	0.125 in	Press-Fit Wire Wrap

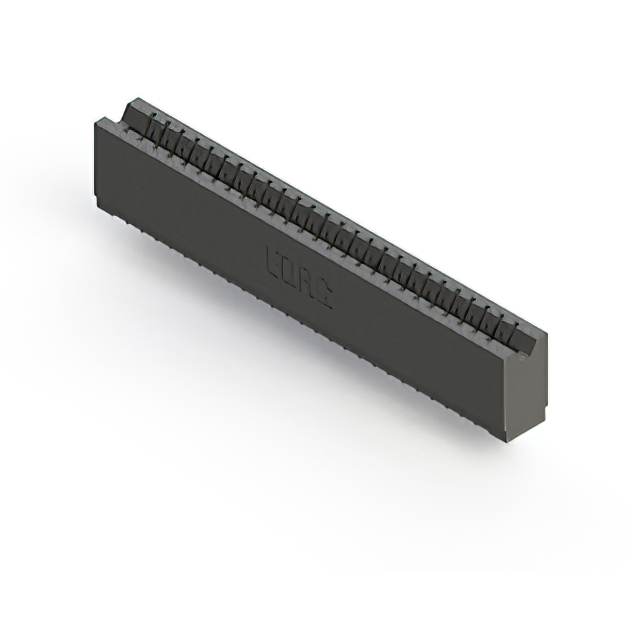

EDAC Inc. 746-026-541-106	Polyester Thermoplastic	1	Through Hole	26	Black	1	26	Non Specified - Single Edge	Copper Alloy	Cantilever	30 Áin	0.76 Ám	Gold	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	3.18 mm	0.125 in	Press-Fit Wire Wrap

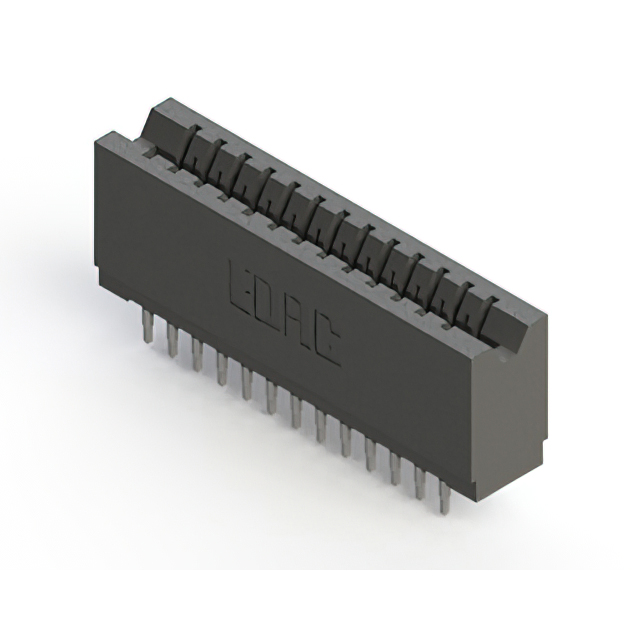

EDAC Inc. 746-026-520-606	Polyester Thermoplastic		Through Hole	26	Black		13	Non Specified - Dual Edge	Copper Alloy	Cantilever	30 Áin	0.76 Ám	Gold	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.18 mm	0.125 in	Press-Fit	2	2

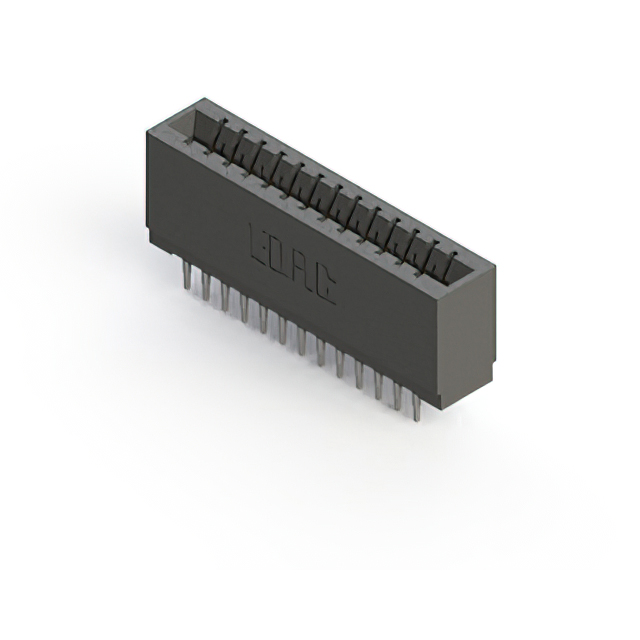

EDAC Inc. 746-026-541-601	Polyester Thermoplastic		Through Hole	26	Black		13	Non Specified - Dual Edge	Copper Alloy	Cantilever	30 Áin	0.76 Ám	Gold	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.18 mm	0.125 in	Press-Fit Wire Wrap	2	2
