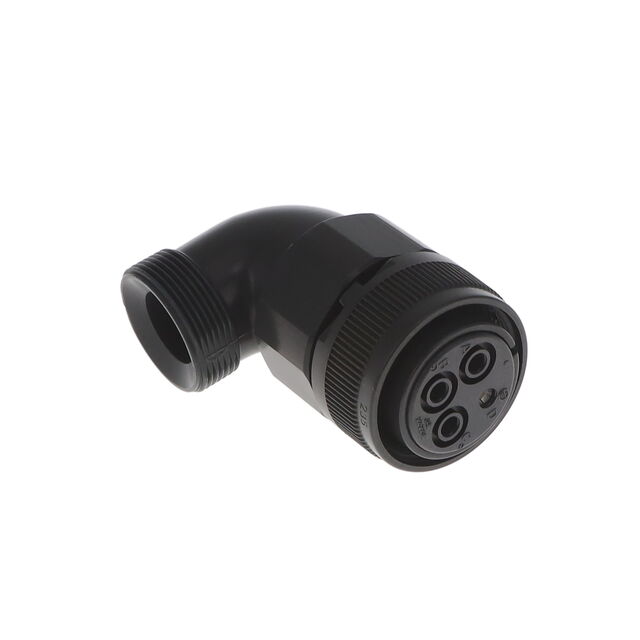

JL04V-8A Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN PLUG FMALE 7P SOLDER CUP
| Part | Applications | Color | Contact Finish - Mating | Insert Material | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Shell Material | Primary Material | Fastening Type | Orientation | Connector Type | Contact Material | Ingress Protection | Features | Backshell Material, Plating | Mounting Type | Current Rating (Amps) | Number of Positions | Shell Size - Insert | Voltage Rating | Cable Opening | Cable Opening | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | Industrial Medical Telecommunications Test Equipment & Measurement | Black | Silver | Synthetic Resin | 15 | 20 | -55 C | 125 °C | Zinc | Aluminum Alloy | Metal | Threaded | N (Normal) | Plug Female Sockets | Copper Alloy | IP67 - Dust Tight Waterproof | Backshell Coupling Nut Ground Lug | Aluminum Alloy Zinc | Free Hanging (In-Line) Right Angle | 23 A | 7 | |||||
JAE Electronics | Industrial Medical Telecommunications Test Equipment & Measurement | Black | Silver | Synthetic Resin | -55 C | 125 °C | Zinc | Aluminum Alloy | Metal | Threaded | N (Normal) | Plug Female Sockets | Copper Alloy | IP67 - Dust Tight Waterproof | Backshell Coupling Nut Ground Lug | Aluminum Alloy Zinc | Free Hanging (In-Line) Right Angle | 13 A | 3 | 10SL-3 | 200 VAC | |||||
JAE Electronics | Industrial Medical Telecommunications Test Equipment & Measurement | Black | Silver | Synthetic Resin | 20 | 4 | -55 C | 125 °C | Zinc | Aluminum Alloy | Metal | Threaded | N (Normal) | Plug Female Sockets | Copper Alloy | IP67 - Dust Tight Waterproof | Backshell Coupling Nut Ground | Aluminum Alloy Zinc | Free Hanging (In-Line) Right Angle | 23 A | 4 | |||||
 JAE Electronics | Industrial Medical Telecommunications Test Equipment & Measurement | Black | Silver | Synthetic Resin | 22 | 22 | -55 C | 125 °C | Zinc | Aluminum Alloy | Metal | Threaded | N (Normal) | Plug Female Sockets | Copper Alloy | IP67 - Dust Tight Waterproof | Backshell Coupling Nut Ground Lug | Aluminum Alloy Zinc | Free Hanging (In-Line) Right Angle | 46 A | 4 | |||||
JAE Electronics | Industrial Medical Telecommunications Test Equipment & Measurement | Black | Silver | Synthetic Resin | 22 | 22 | -55 C | 125 °C | Zinc | Aluminum Alloy | Metal | Threaded | N (Normal) | Plug Female Sockets | Copper Alloy | IP67 - Dust Tight Waterproof | Backshell Coupling Nut Ground Lug | Aluminum Alloy Zinc | Free Hanging (In-Line) Right Angle | 46 A | 4 | |||||
JAE Electronics | ||||||||||||||||||||||||||
JAE Electronics | Industrial Medical Telecommunications Test Equipment & Measurement | Black | Silver | Synthetic Resin | 20 | 4 | -55 C | 125 °C | Zinc | Aluminum Alloy | Metal | Threaded | N (Normal) | Plug Female Sockets | Copper Alloy | IP67 - Dust Tight Waterproof | Backshell Coupling Nut Ground | Aluminum Alloy Zinc | Free Hanging (In-Line) Right Angle | 23 A | 4 | |||||
JAE Electronics | Industrial Medical Telecommunications Test Equipment & Measurement | Silver | -55 C | 125 °C | Threaded | N (Normal) | Plug Female Sockets | IP67 - Dust Tight Waterproof | Backshell Coupling Nut Ground | Free Hanging (In-Line) Right Angle | 13 A | 3 | 10SL-3 | |||||||||||||
JAE Electronics | Industrial Medical Telecommunications Test Equipment & Measurement | Black | Silver | Synthetic Resin | -55 C | 125 °C | Zinc | Aluminum Alloy | Metal | Threaded | N (Normal) | Plug Female Sockets | Copper Alloy | IP67 - Dust Tight Waterproof | Backshell Coupling Nut Ground | Aluminum Alloy Zinc | Free Hanging (In-Line) Right Angle | 23 A 46 A | 9 | 24-11 | 0.787 in | 20 mm | Unshielded | |||
JAE Electronics |
