AR 16-HZ Series
Manufacturer: Assmann WSW Components
Beta
⌘K

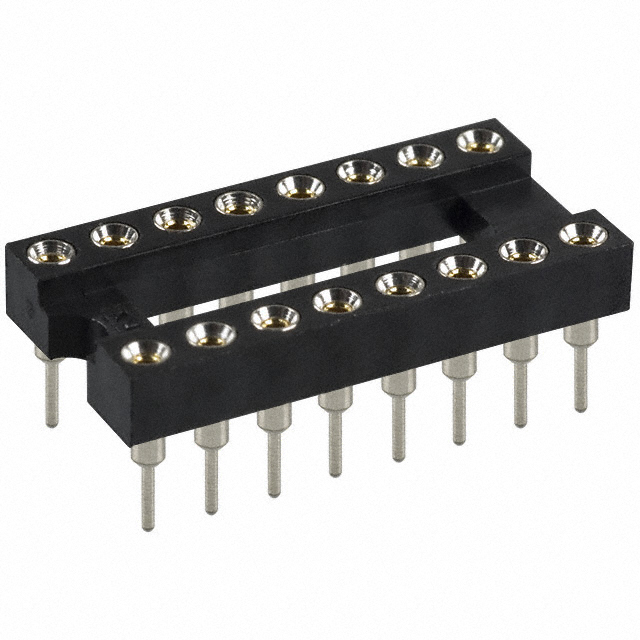

CONN IC DIP SOCKET 16POS TIN
| Part | Current Rating (Amps) | Contact Resistance | Material Flammability Rating | Termination | Type | Type | Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Features | Contact Material - Post | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Mating | Contact Finish - Post | Mounting Type | Pitch - Post | Pitch - Post | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | 3 A | 4 mOhm | UL94 V-0 | Solder | 7.62 mm | 0.3 in | DIP | 200 µin | 5.08 µm | Open Frame | Beryllium Copper | 0.1 " | 2.54 mm | -40 C | 105 ░C | Beryllium Copper | Tin | Through Hole | 0.1 in | 2.54 mm | 2 | 16 | 8 | Polyester Thermoplastic |
