VI02 Series
Manufacturer: Amphenol Anytek
Beta
⌘K

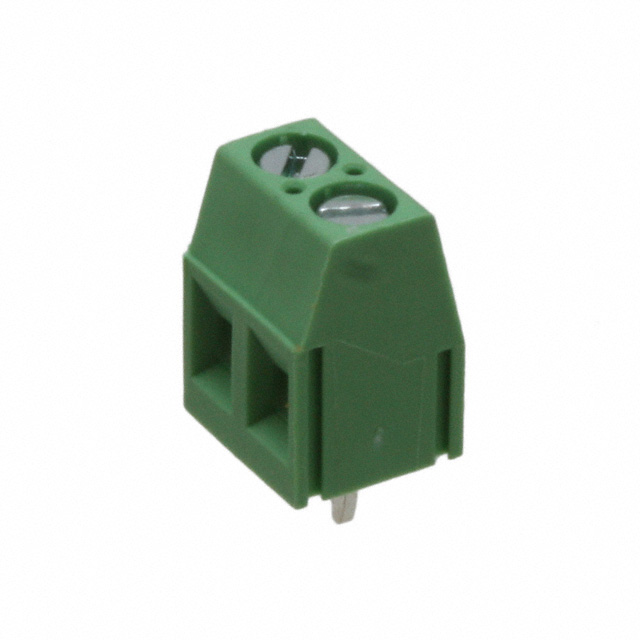

TERM BLK 2P SIDE ENT 5.08MM PCB
| Part | Housing Material | Wire Termination | Wire Gauge [Min] | Wire Gauge [Max] | Positions Per Level | Screw Material - Plating | Mating Orientation | Mounting Type | Torque - Screw | Torque - Screw | Clamp Material - Plating | Voltage | Number of Levels | Features | Current | Operating Temperature [Min] | Operating Temperature [Max] | Screw Thread | Pitch [x] | Pitch [x] | Color | Contact Material - Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Anytek | Thermoplastic | Screw - Rising Cage Clamp | 12 AWG | 28 AWG | 2 | Steel Zinc Plated | Horizontal with Board | Through Hole | 0.4 Nm | 3.5 Lb-In | Brass - Nickel Plated | 300 V | 1 | Interlocking (Side) | 16 A | -40 °C | 115 °C | M3 | 0.2 in | 5.08 mm | ||
Amphenol Anytek | Thermoplastic | Screw - Rising Cage Clamp | 12 AWG | 28 AWG | 2 | Steel Zinc Plated | Horizontal with Board | Through Hole | 0.4 Nm | 3.5 Lb-In | Brass - Nickel Plated | 300 V | 1 | Interlocking (Side) | 16 A | -40 °C | 115 °C | M3 | 0.2 in | 5.08 mm | Blue | |
Amphenol Anytek | Thermoplastic | Screw - Rising Cage Clamp | 12 AWG | 28 AWG | 2 | Steel Zinc Plated | Vertical with Board | Through Hole | 0.4 Nm | 3.5 Lb-In | Brass - Nickel Plated | 300 V | 1 | Interlocking (Side) | 16 A | -40 °C | 115 °C | M3 | 0.295 in | 7.5 mm | Green | |
 Amphenol Anytek | Thermoplastic | Screw - Rising Cage Clamp | 12 AWG | 28 AWG | 2 | Steel Zinc Plated | Horizontal with Board | Through Hole | 0.4 Nm | 3.5 Lb-In | Copper Alloy - Nickel Plated | 300 V | 1 | Interlocking (Side) | 16 A | -40 °C | 115 °C | M3 | 0.197 in | 5 mm | Green | Copper Alloy - Tin Plated |
Amphenol Anytek | Thermoplastic | Screw - Rising Cage Clamp | 12 AWG | 28 AWG | 2 | Steel Zinc Plated | Horizontal with Board | Through Hole | 0.4 Nm | 3.5 Lb-In | Brass - Nickel Plated | 300 V | 1 | Interlocking (Side) | 16 A | -40 °C | 115 °C | M3 | 0.295 in | 7.5 mm | Green |
