BZV15/Z Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

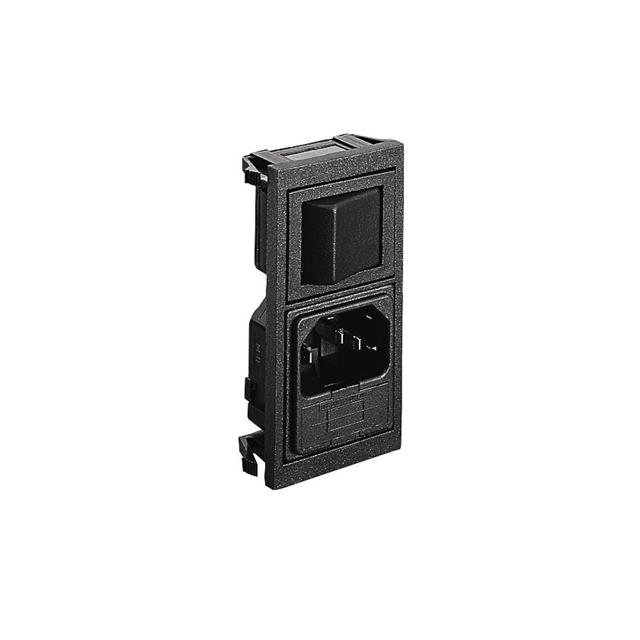

PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Connector Type | Termination | Termination | Termination | Panel Thickness [Max] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Min] | Material Flammability Rating | Fuse Holder, Drawer | Connector Style | Approval Agency | Switch Features | Voltage Rating - Appliance Inlet | Accomodates a Fuse | Mounting Type | Current Rating - Appliance Inlet | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Filter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Receptacle Male Blades - Module | 6.3 mm | Quick Connect | 0.25 " | 0.118 in | 3 mm | 1 mm | 0.039 in | UL94 V-0 | Twin Fused | IEC 320-C14 | CSA ENEC IMQ UL | Switch On-Off | 250 VAC | Panel Mount Snap-In | 10 A | 34.4 mm | 76.5 mm | Unfiltered - Commercial | |
 BULGIN LIMITED | Receptacle Male Blades - Module | 6.3 mm | Quick Connect | 0.25 " | 0.118 in | 3 mm | 1 mm | 0.039 in | UL94 V-0 | Twin Fused | IEC 320-C14 | CSA ENEC IMQ UL | Switch On-Off | 250 VAC | Panel Mount Snap-In | 10 A | 34.4 mm | 76.5 mm | Unfiltered - Commercial |
