PRPC019 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER R/A 19POS 2.54MM
| Part | Contact Finish Thickness - Post | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Type | Current Rating (Amps) | Fastening Type | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Style | Contact Length - Mating | Contact Length - Mating | Mounting Type | Material Flammability Rating | Shrouding | Number of Positions | Number of Rows | Contact Finish - Mating | Connector Type | Contact Length - Post | Contact Length - Post | Contact Material | Insulation Material | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Insulation Height | Insulation Height | Insulation Color | Overall Contact Length [x] | Overall Contact Length [x] | Number of Rows [custom] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

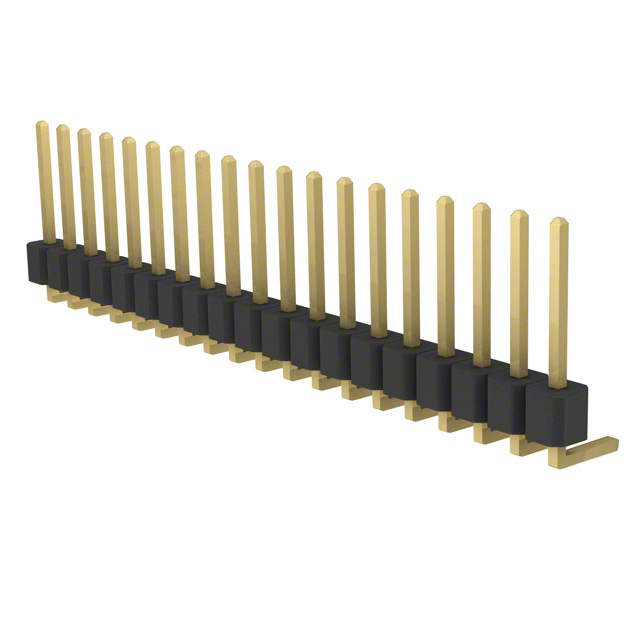

 Sullins Connector Solutions | Flash | All | Flash | Male Pin | 3 A | Push-Pull | Square | -40 C | 105 ░C | Solder | Board to Board Cable | 8.08 mm | 0.318 in | Right Angle Through Hole | UL94 V-0 | Unshrouded | 19 | 1 | Gold | Header Breakaway | 3.05 mm | 0.12 in | Brass | Polybutylene Terephthalate (PBT) | 0.1 " | 2.54 mm | Gold | 0.098 " | 2.5 mm | Black | |||||||
 Sullins Connector Solutions | Flash | All | Flash | Male Pin | 3 A | Push-Pull | Square | -40 C | 105 ░C | Solder | Board to Board Cable | 5.84 mm | 0.23 in | Through Hole | UL94 V-0 | Unshrouded | 19 | 1 | Gold | Header Breakaway | 8.13 mm | 0.32 in | Brass | Polybutylene Terephthalate (PBT) | 0.1 " | 2.54 mm | Gold | 0.098 " | 2.5 mm | Black | 0.648 in | 16.47 mm | |||||
 Sullins Connector Solutions | Flash | All | Flash | Male Pin | 3 A | Push-Pull | Square | -40 C | 105 ░C | Solder | Board to Board Cable | 8.08 mm | 0.318 in | Through Hole | UL94 V-0 | Unshrouded | 19 | 1 | Gold | Header Breakaway | 3.05 mm | 0.12 in | Brass | Polybutylene Terephthalate (PBT) | 0.1 " | 2.54 mm | Gold | 0.098 " | 2.5 mm | Black | 0.537 in | 13.63 mm | |||||
 Sullins Connector Solutions | Flash | All | Flash | Male Pin | 3 A | Push-Pull | Square | -40 C | 105 ░C | Solder | Board to Board Cable | 5.84 mm | 0.23 in | Right Angle Through Hole | UL94 V-0 | Unshrouded | 19 | 1 | Gold | Header Breakaway | 8.13 mm | 0.32 in | Brass | Polybutylene Terephthalate (PBT) | 0.1 " | 2.54 mm | Gold | 0.098 " | 2.5 mm | Black | |||||||

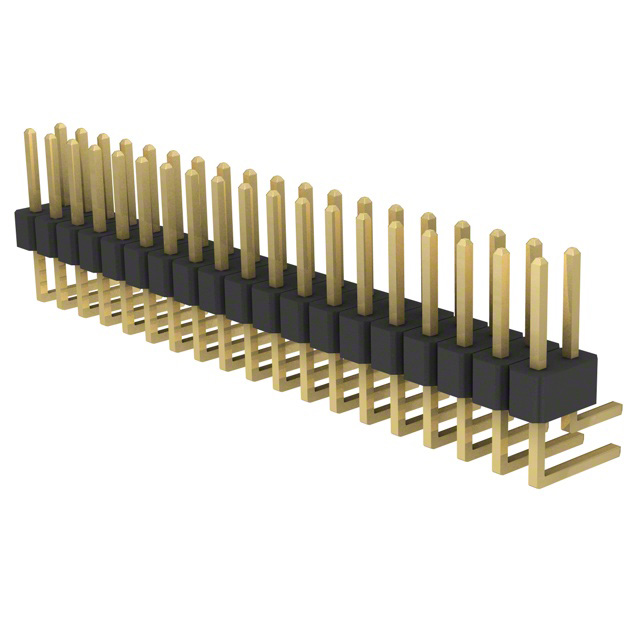

 Sullins Connector Solutions | Flash | All | Flash | Male Pin | 3 A | Push-Pull | Square | -40 C | 105 ░C | Solder | Board to Board Cable | 8.08 mm | 0.318 in | Through Hole | UL94 V-0 | Unshrouded | 38 | Gold | Header Breakaway | 3.05 mm | 0.12 in | Brass | Polybutylene Terephthalate (PBT) | 0.1 " | 2.54 mm | Gold | 0.098 " | 2.5 mm | Black | 0.537 in | 13.63 mm | 2 | 0.1 in | 2.54 mm | |||
 Sullins Connector Solutions | Flash | All | Flash | Male Pin | 3 A | Push-Pull | Square | -40 C | 105 ░C | Solder | Board to Board Cable | 5.84 mm | 0.23 in | Right Angle Through Hole | UL94 V-0 | Unshrouded | 38 | Gold | Header Breakaway | 3.05 mm | 0.12 in | Brass | Polybutylene Terephthalate (PBT) | 0.1 " | 2.54 mm | Gold | 0.197 " | 5 mm | Black | 2 | 0.1 in | 2.54 mm | |||||
 Sullins Connector Solutions | Flash | All | Flash | Male Pin | 3 A | Push-Pull | Square | -40 C | 105 ░C | Solder | Board to Board Cable | 5.84 mm | 0.23 in | Through Hole | UL94 V-0 | Unshrouded | 19 | 1 | Gold | Header Breakaway | 3.05 mm | 0.12 in | Brass | Polybutylene Terephthalate (PBT) | 0.1 " | 2.54 mm | Gold | 0.098 " | 2.5 mm | Black | 0.448 in | 11.39 mm |
