MWSET1 Series

Catalog

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 7 MM, 2 MM

Part	Panel Thickness	Panel Thickness	Material Flammability Rating	Opening Size [y]	Opening Size [x]	Opening Size [x]	Opening Size [y]	Mounting Type	Width [x]	Width [x]	Type Attributes	Panel Hole Size	Panel Hole Size	Type	Color	Height [z]	Height [z]	Length	Length	Material	Opening Size [custom]	Opening Size [custom]	Opening Size [custom]	Opening Size [custom]	Height	Height	Features
Essentra Components MWSET1-2-1-01	0.093 in	2.36 mm	UL94 V-2	0.11 in	4.83 mm	0.19 in	2.79 mm	Push In	2.03 mm	0.08 in	Micro	0.067 in	1.7 mm	Clip Wire Saddle	Natural	0.24 "	6.1 mm	0.28 in	7.11 mm	Polyamide (PA66) Nylon 6/6
Essentra Components MWSET1-2-01	0.063 in	1.6 mm	UL94 V-2	0.11 in	4.83 mm	0.19 in	2.79 mm	Push In	2.03 mm	0.08 in	Micro	0.067 in	1.7 mm	Clip Wire Saddle	Natural	0.24 "	6.1 mm	0.28 in	7.11 mm	Polyamide (PA66) Nylon 6/6

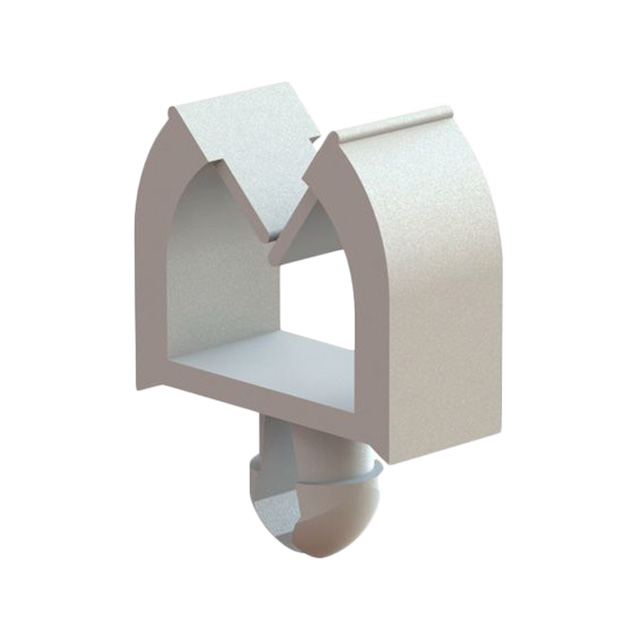

Essentra Components MWSET1-1-1-19	0.093 in	2.36 mm	UL94 V-0					Push In	2.03 mm	0.08 in	Micro	0.067 in	1.7 mm	Clip Wire Saddle	Natural			0.28 in	7.11 mm	Polyamide (PA66) Nylon 6/6	1.02 mm	0.19 in	4.83 mm	0.04 in	4.06 mm	0.16 in	Flame Retardant

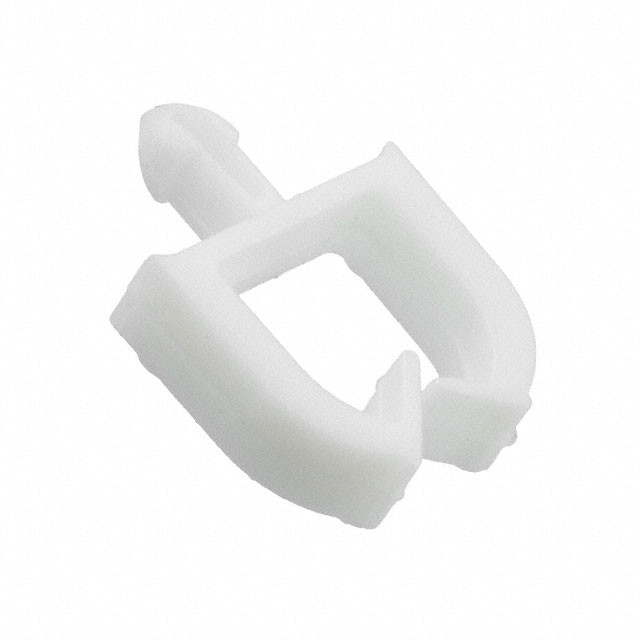

Essentra Components MWSET1-2-19	0.063 in	1.6 mm	UL94 V-0	0.11 in	4.83 mm	0.19 in	2.79 mm	Push In	2.03 mm	0.08 in	Micro	0.067 in	1.7 mm	Clip Wire Saddle	Natural	0.24 "	6.1 mm	0.28 in	7.11 mm	Polyamide (PA66) Nylon 6/6							Flame Retardant

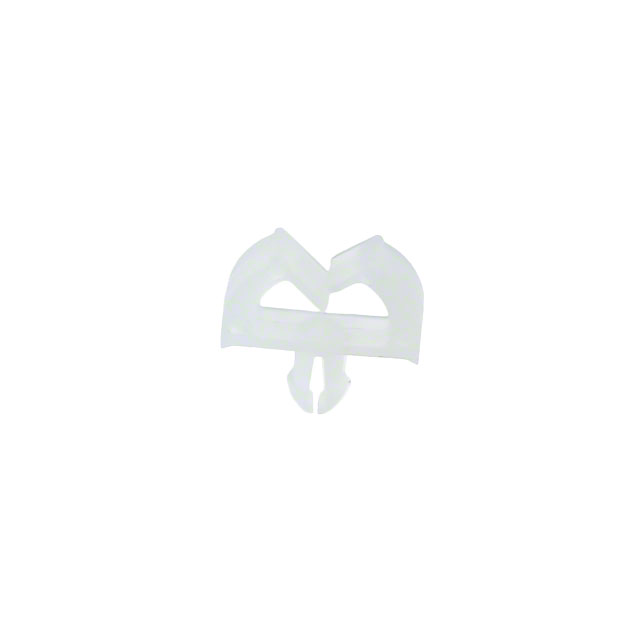

Essentra Components MWSET1-1-01	0.063 in	1.6 mm	UL94 V-2					Push In	2.03 mm	0.08 in	Micro	0.067 in	1.7 mm	Clip Wire Saddle	Natural			0.28 in	7.11 mm	Polyamide (PA66) Nylon 6/6	1.02 mm	0.19 in	4.83 mm	0.04 in	4.06 mm	0.16 in
