M2032SS Series

Catalog

SWITCH TOGGLE 3PDT 6A 125V

Part	Electrical Life	Actuator Material	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Voltage Rating - DC	Current Rating (Amps)	Illumination	Bushing Thread	Switch Function	Actuator Type	Mounting Type	Circuit	Features	Termination Style	Bushing Thread

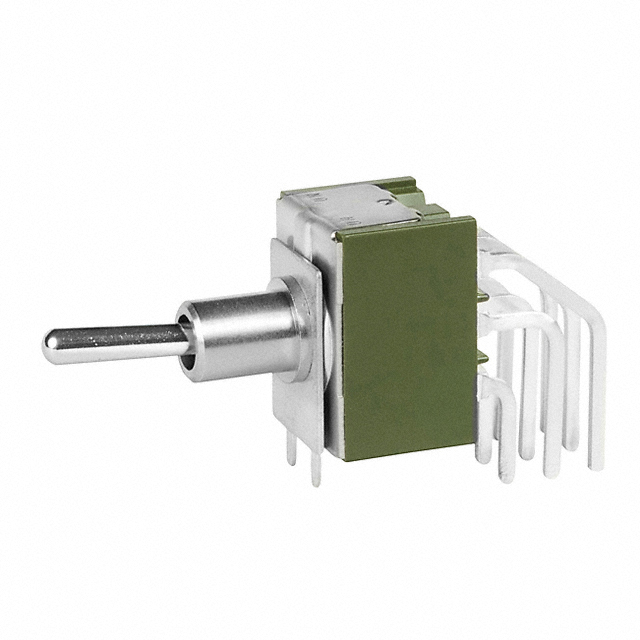

NKK Switches M2032SS2W30	25000 Steps	Brass Chrome Plated	6.5 mm	85 °C	-30 ░C	125 V	30 V	4 A 6 A	Non-Illuminated	Unthreaded	On-On	Standard Round	Right Angle Through Hole	3PDT	Epoxy Sealed Terminals	PC Pin

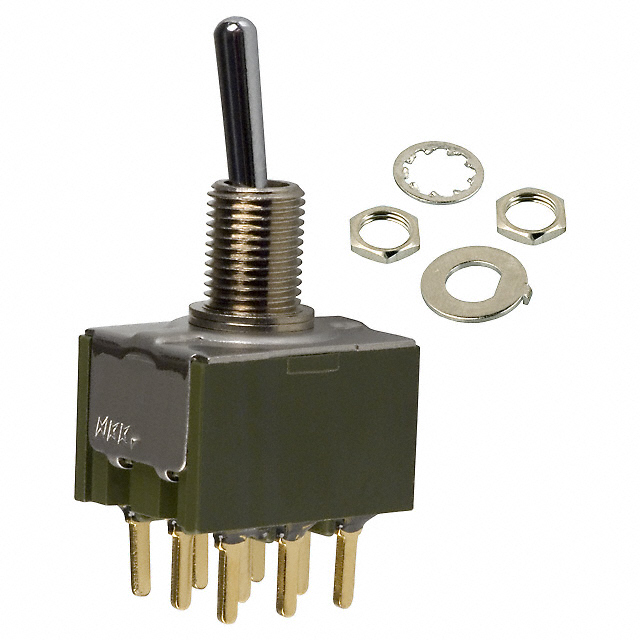

NKK Switches M2032SS1G03	50000 Cycles	Brass Chrome Plated	6.5 mm	85 °C	-30 ░C	28 V	28 V	0.4 VA	Non-Illuminated	1/4-40	On-On	Standard Round	Panel Mount	3PDT	Epoxy Sealed Terminals	PC Pin
NKK Switches M2032SS1W03/CUL	25000 Steps	Brass Chrome Plated	6.5 mm	85 °C	-30 ░C	125 V	30 V	4 A 6 A	Non-Illuminated	1/4-40	On-On	Standard Round	Panel Mount	3PDT	Epoxy Sealed Terminals	PC Pin

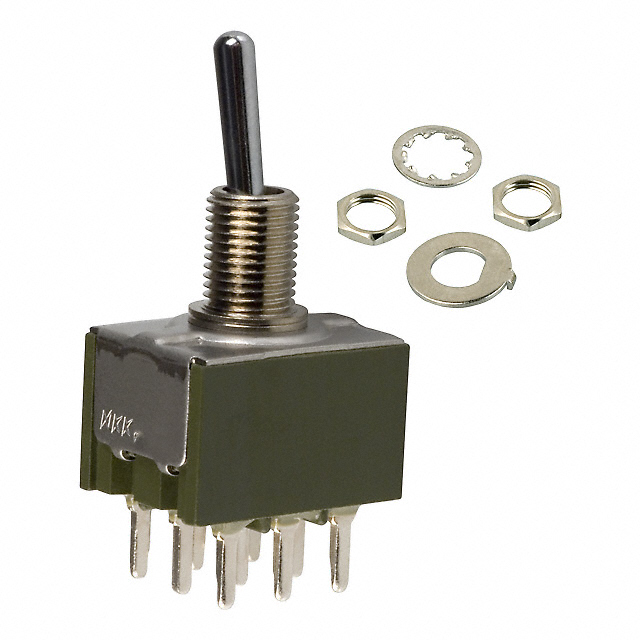

NKK Switches M2032SS1W03	25000 Steps	Brass Chrome Plated	6.5 mm	85 °C	-30 ░C	125 V	30 V	4 A 6 A	Non-Illuminated	1/4-40	On-On	Standard Round	Panel Mount	3PDT	Epoxy Sealed Terminals	PC Pin

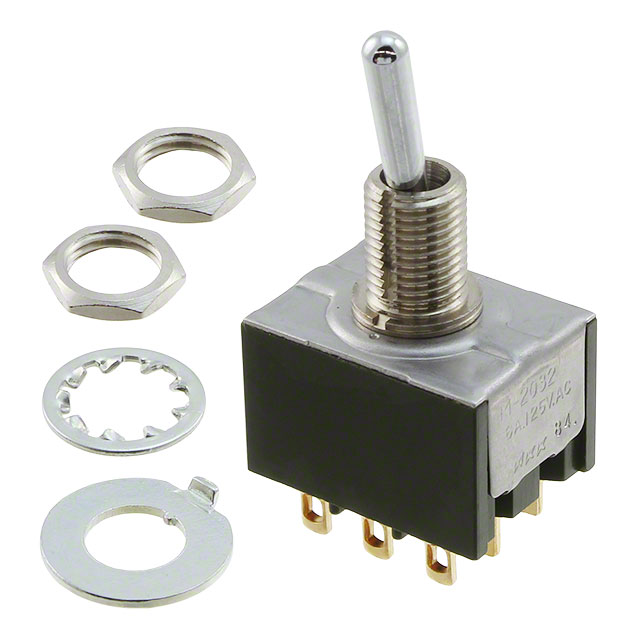

NKK Switches M2032SS1A01	25000 Steps	Brass Chrome Plated	6.5 mm	85 °C	-30 ░C	125 V	30 V	4 A 6 A	Non-Illuminated	1/4-40	On-On	Standard Round	Panel Mount	3PDT	Epoxy Sealed Terminals	Solder Lug
NKK Switches M2032SS4G01	25000 Steps	Brass Chrome Plated	6.5 mm	85 °C	-30 ░C	28 V	28 V	0.4 VA	Non-Illuminated	M6	On-On	Standard Round	Panel Mount	3PDT	Epoxy Sealed Terminals	Solder Lug	0.75

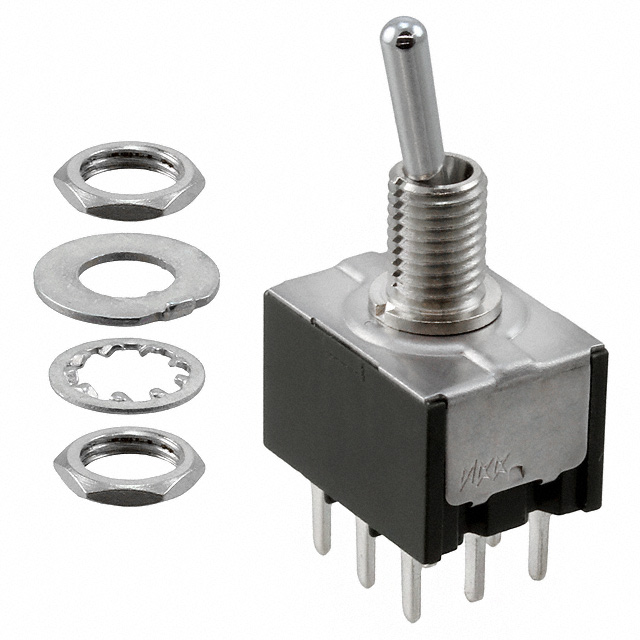

NKK Switches M2032SS4W03	25000 Steps	Brass Chrome Plated	6.5 mm	85 °C	-30 ░C	125 V	30 V	4 A 6 A	Non-Illuminated	M6	On-On	Standard Round	Panel Mount	3PDT	Epoxy Sealed Terminals	PC Pin	0.75

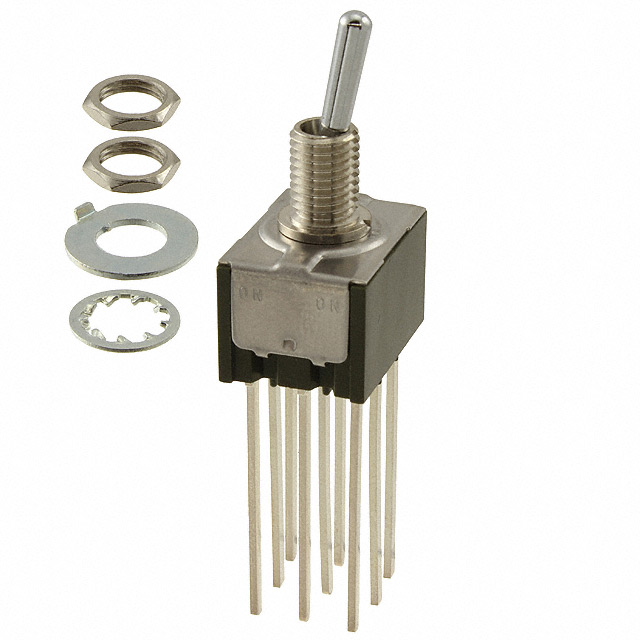

NKK Switches M2032SS4W07	25000 Steps	Brass Chrome Plated	6.5 mm	85 °C	-30 ░C	125 V	30 V	4 A 6 A	Non-Illuminated	M6	On-On	Standard Round	Panel Mount	3PDT	Epoxy Sealed Terminals	Wire Wrap	0.75
NKK Switches M2032SS1G30	50000 Cycles	Brass Chrome Plated	6.5 mm	85 °C	-30 ░C	28 V	28 V	0.4 VA	Non-Illuminated	1/4-40	On-On	Standard Round	Right Angle Through Hole	3PDT	Epoxy Sealed Terminals	PC Pin

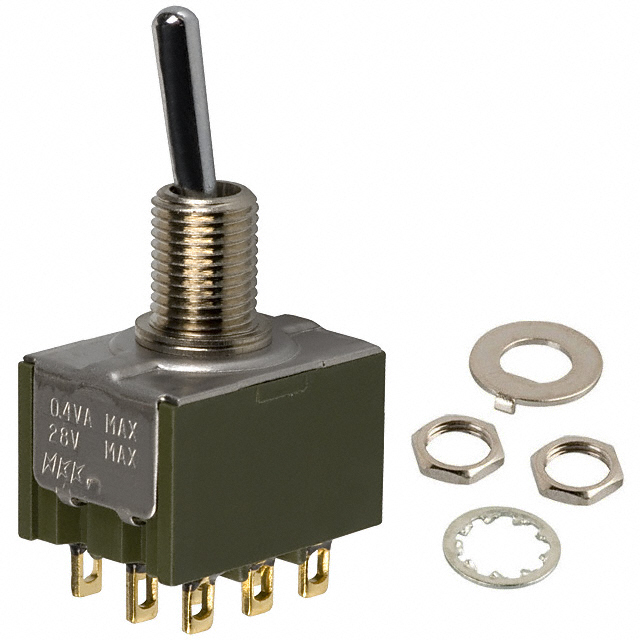

NKK Switches M2032SS1G01	50000 Cycles	Brass Chrome Plated	6.5 mm	85 °C	-30 ░C	28 V	28 V	0.4 VA	Non-Illuminated	1/4-40	On-On	Standard Round	Panel Mount	3PDT	Epoxy Sealed Terminals	Solder Lug
