302-R50 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

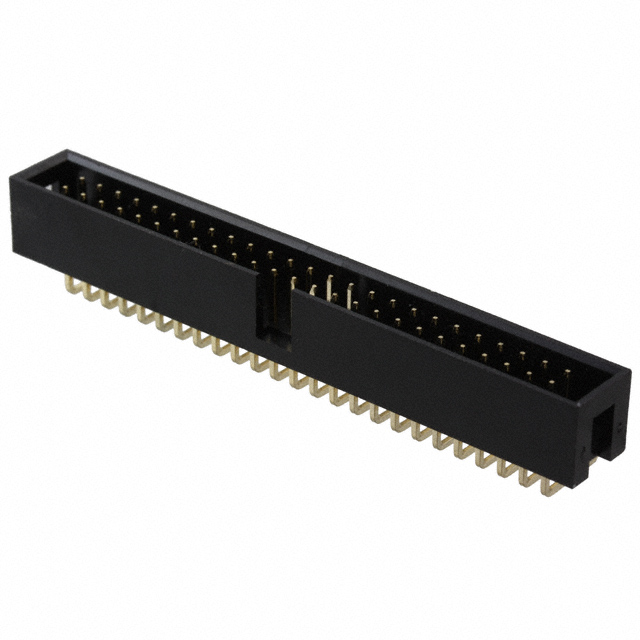

CONN HEADER R/A 50POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Voltage Rating | Pitch - Mating | Pitch - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Fastening Type | Features | Material Flammability Rating | Number of Rows [custom] | Connector Type | Shrouding | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish Thickness - Mating | Current Rating (Amps) | Contact Type | Contact Material | Contact Shape | Style | Number of Positions Loaded | Contact Finish - Post | Number of Positions | Insulation Color | Contact Finish - Mating | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 1.25 µin | 0.032 µm | Right Angle Through Hole | 250 V | 0.1 " | 2.54 mm | 0.122 in | 3.1 mm | Push-Pull | Keying Slot | UL94 V-0 | 2 | Header | Shrouded - 4 Wall | 0.1 in | 2.54 mm | 0.358 " | 9.1 mm | -40 C | 105 ░C | Solder | Flash | 3 A | Male Pin | Brass | Square | Board to Cable/Wire | All | Gold | 50 | Black | Gold | Polyester Glass Filled |
