NSCDRRN Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SENSOR 0.07PSID 0.08" .1575V DIP

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Port Style	Operating Pressure	Operating Pressure	Port Size	Port Size	Port Size	Output [Max]	Maximum Pressure	Maximum Pressure	Accuracy	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Mounting Type	Termination Style	Pressure Type	Output Type	Package / Case	Package / Case	Package / Case	Maximum Pressure [Max]	Maximum Pressure [Max]	Output	Maximum Pressure	Maximum Pressure	Output
Honeywell Sensing and Productivity Solutions NSCDRRN002NDUNV	6.5 V	2.7 V	8-DIP	Barbed	0.5 kPa	0.07 PSI	1.93 mm	Dual Male Tube	0.08 "	157.5 mV	9.76 PSI	67.28 kPa	0.25 %	85 °C	-40 °C	Board Mount	Through Hole	PC Pin	Differential	Wheatstone Bridge	8-DIP Dual Ports Same Side	13.3 mm	0.524 "

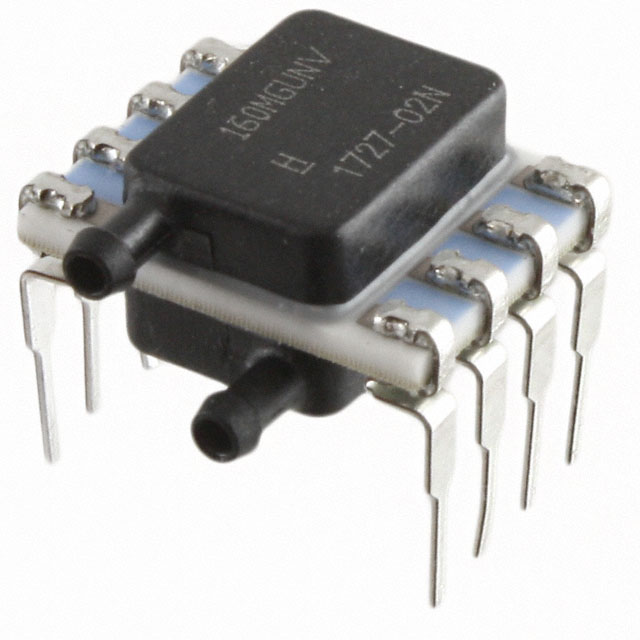

Honeywell Sensing and Productivity Solutions NSCDRRN160MGUNV	12 V	1.5 V	8-DIP	Barbed	15.86 kPa	2.3 PSI	1.93 mm	Dual Male Tube	0.08 "	75.5 mV			0.25 %	85 °C	-40 °C	Board Mount	Through Hole	PC Pin	Vented Gauge	Wheatstone Bridge	8-DIP Dual Ports Same Side	13.3 mm	0.524 "	12.33 PSI	85 kPa

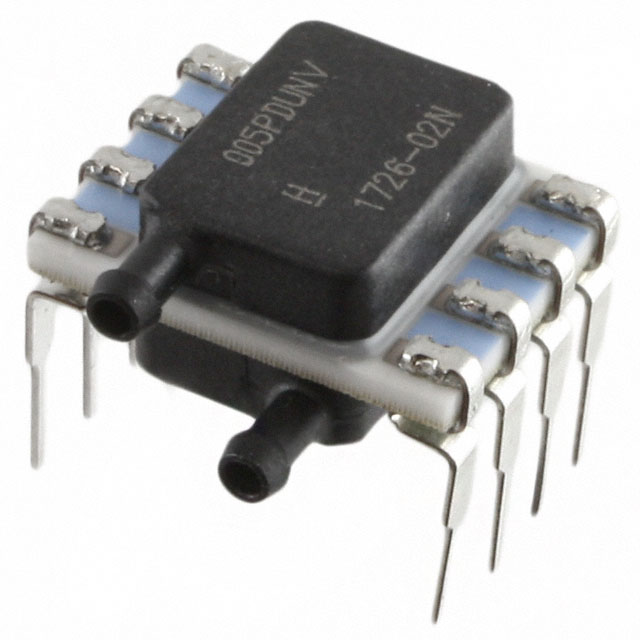

Honeywell Sensing and Productivity Solutions NSCDRRN005PDUNV	12 V	1.5 V	8-DIP	Barbed	34.47 kPa	5 PSI	1.93 mm	Dual Male Tube	0.08 "	150 mV			0.25 %	85 °C	-40 °C	Board Mount	Through Hole	PC Pin	Differential	Wheatstone Bridge	8-DIP Dual Ports Same Side	13.3 mm	0.524 "			(5V)
Honeywell Sensing and Productivity Solutions NSCDRRN001NDUNV	6.5 V	2.7 V	8-DIP	Barbed	0.25 kPa	0.04 PSI	1.93 mm	Dual Male Tube	0.08 "	78.5 mV	9.76 PSI	67.28 kPa	0.25 %	85 °C	-40 °C	Board Mount	Through Hole	PC Pin	Differential	Wheatstone Bridge	8-DIP Dual Ports Same Side	13.3 mm	0.524 "
Honeywell Sensing and Productivity Solutions NSCDRRN015PDUNV	12 V	1.5 V	8-DIP	Barbed	103.42 kPa	15 PSI	1.93 mm	Dual Male Tube	0.08 "	155 mV			0.25 %	85 °C	-40 °C	Board Mount	Through Hole	PC Pin	Differential	Wheatstone Bridge	8-DIP Dual Ports Same Side	13.3 mm	0.524 "				±30PSI	±206.84kPa	5 V
Honeywell Sensing and Productivity Solutions NSCDRRN100PDUNV	12 V	1.5 V	8-DIP	Barbed	689.48 kPa	100 PSI	1.93 mm	Dual Male Tube	0.08 "	172.5 mV	250 PSI	1723.69 kPa	0.25 %	85 °C	-40 °C	Board Mount	Through Hole	PC Pin	Differential	Wheatstone Bridge	8-DIP Dual Ports Same Side	13.3 mm	0.524 "
