ED4101 Series

Catalog

TERM BLK 7POS SIDE ENTRY 5MM PCB

Part	Contact Material - Plating	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Clamp Material - Plating [custom]	Color	Mating Orientation	Wire Gauge [Max]	Wire Gauge [Min]	Features	Pitch	Pitch	Wire Termination	Positions Per Level [custom]	Number of Levels	Voltage	Mounting Type	Current	Positions Per Level
On Shore Technology Inc. ED4101/7-KD	Copper	Polyamide (PA) Nylon	-30 ░C	105 ░C	Stainless Steel	Gray Slate	Horizontal with Board	20 AWG	14 AWG	Interlocking (Side)	0.197 in	5 mm	Screwless - Push Button Clamp	7	1	300 VDC	Through Hole	10 A

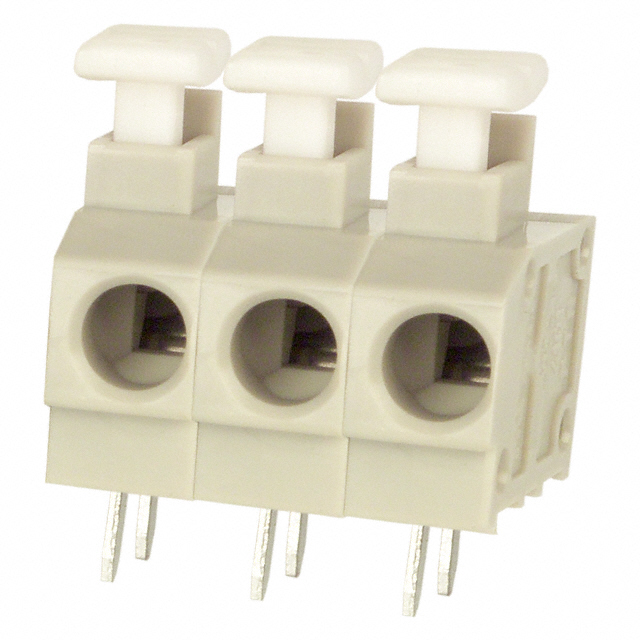

On Shore Technology Inc. ED4101/3-KD	Copper	Polyamide (PA) Nylon	-30 ░C	105 ░C	Stainless Steel	Gray Slate	Horizontal with Board	20 AWG	14 AWG	Interlocking (Side)	0.197 in	5 mm	Screwless - Push Button Clamp		1	300 VDC	Through Hole	10 A	3

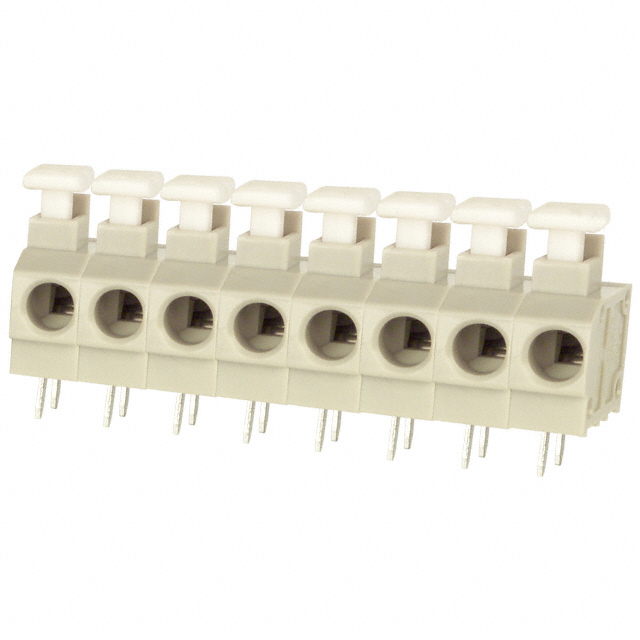

On Shore Technology Inc. ED4101/8-KD	Copper	Polyamide (PA) Nylon	-30 ░C	105 ░C	Stainless Steel	Gray Slate	Horizontal with Board	20 AWG	14 AWG	Interlocking (Side)	0.197 in	5 mm	Screwless - Push Button Clamp		1	300 VDC	Through Hole	10 A	8

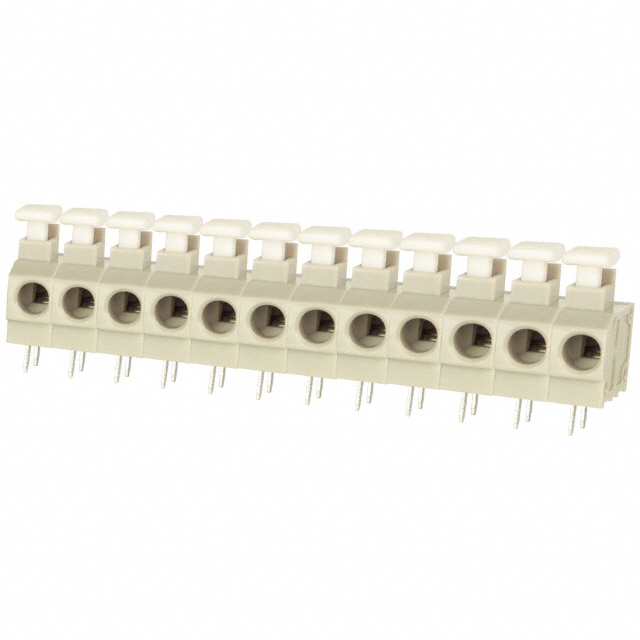

On Shore Technology Inc. ED4101/12-KD	Copper	Polyamide (PA) Nylon	-30 ░C	105 ░C	Stainless Steel	Gray Slate	Horizontal with Board	20 AWG	14 AWG	Interlocking (Side)	0.197 in	5 mm	Screwless - Push Button Clamp		1	300 VDC	Through Hole	10 A	12

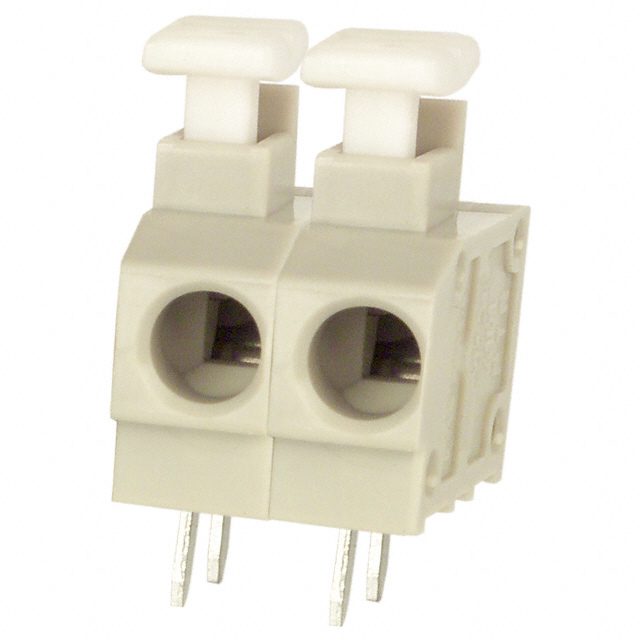

On Shore Technology Inc. ED4101/2-KD	Copper	Polyamide (PA) Nylon	-30 ░C	105 ░C	Stainless Steel	Gray Slate	Horizontal with Board	20 AWG	14 AWG	Interlocking (Side)	0.197 in	5 mm	Screwless - Push Button Clamp		1	300 VDC	Through Hole	10 A	2
