MEZDPD1620 Series

Manufacturer: Monolithic Power Systems Inc.

Catalog

DC DC CONVERTER 2.5V

Part	Mounting Type	Package / Case	Current - Output (Max) [Max]	Efficiency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Applications	Voltage - Output 1	Supplier Device Package	Type	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Features	Operating Temperature [Max]	Operating Temperature [Min]

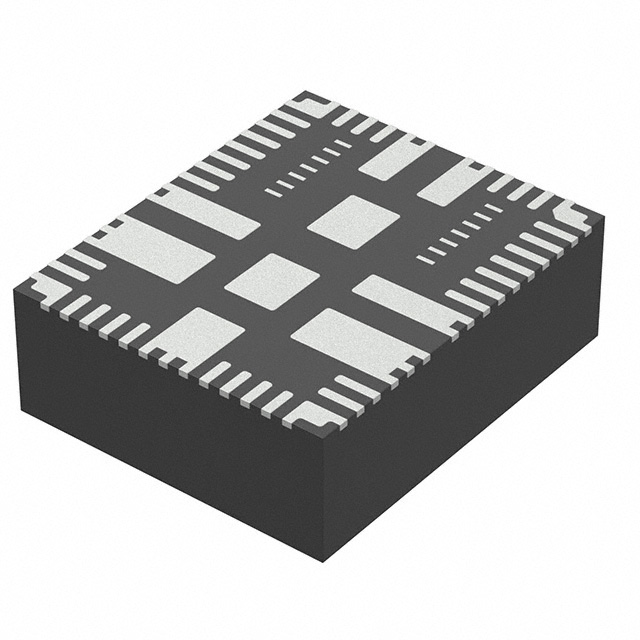

Monolithic Power Systems Inc. MEZDPD1620AS-84DC	Surface Mount	59-PowerBQFN Module	18 A	96 %	0.39 in	10 mm	12 mm	0.16 in	0.47 in	4 mm	1	4 V	10 V	ITE (Commercial)	2.5 V	59-QFN	Non-Isolated PoL Module
Monolithic Power Systems Inc. MEZDPD1620AS-8502	Surface Mount	59-PowerBQFN Module	20 A	96 %	0.39 in	10 mm	12 mm	0.16 in	0.47 in	4 mm	1	4 V	16 V	ITE (Commercial)		59-QFN	Non-Isolated PoL Module	0.6 V	5.5 V	OCP OTP OVP UVLO
Monolithic Power Systems Inc. MEZDPD1620AS-84D1	Surface Mount	59-PowerBQFN Module	15 A	96 %	0.39 in	10 mm	12 mm	0.16 in	0.47 in	4 mm	1	4 V	10 V	ITE (Commercial)	1.2 V	59-QFN	Non-Isolated PoL Module
Monolithic Power Systems Inc. MEZDPD1620AS-84DD	Surface Mount	59-PowerBQFN Module	18 A	96 %	0.39 in	10 mm	12 mm	0.16 in	0.47 in	4 mm	1	4 V	10 V	ITE (Commercial)	3.3 V	59-QFN	Non-Isolated PoL Module
Monolithic Power Systems Inc. MEZDPD1620AS-84D9	Surface Mount	59-PowerBQFN Module	15 A	96 %	0.39 in	10 mm	12 mm	0.16 in	0.47 in	4 mm	1	4 V	16 V	ITE (Commercial)	2.5 V	59-QFN	Non-Isolated PoL Module				125 °C	-40 C
Monolithic Power Systems Inc. MEZDPD1620AS-84D8	Surface Mount	59-PowerBQFN Module	15 A	96 %	0.39 in	10 mm	12 mm	0.16 in	0.47 in	4 mm	1	9 V	15 V	ITE (Commercial)	3.3 V	59-QFN	Non-Isolated PoL Module
