R16119 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

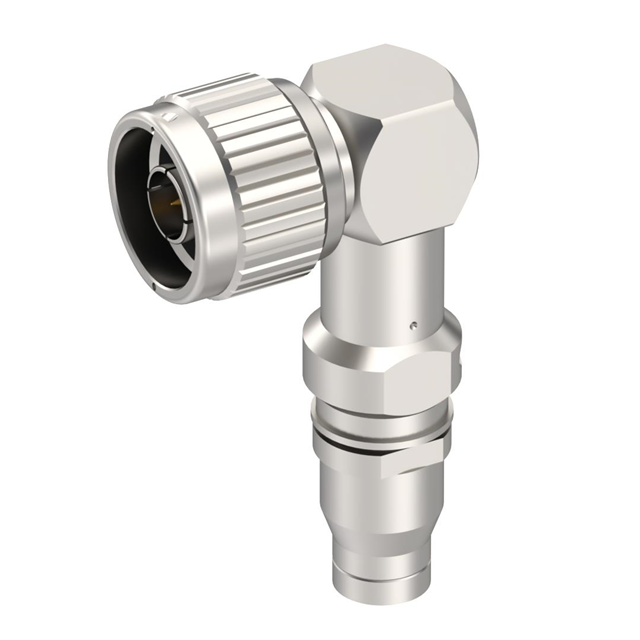

N / PLUG RIGHT ANGLE CRIMP TYPE
| Part | Dielectric Material | Voltage Rating | Center Contact Plating | Body Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Insertion Loss | Connector Style | Fastening Type | Number of Ports | Contact Termination | Housing Color | Impedance | Center Contact Material | Cable Group | Cable Group | Connector Type | Shield Termination | Mounting Type | Frequency - Max [Max] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 1000 VDC | Gold | Brass | Nickel | -65 ░C | 165 °C | 500 | 0.15 dB | N Type | Threaded | 1 | Crimp | Silver | 50 Ohms | Brass | 142 223 400 | RG-58 | Plug Male Pin | Crimp | Free Hanging (In-Line) Right Angle | 3 GHz | IP67 - Dust Tight Waterproof |
