170331 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

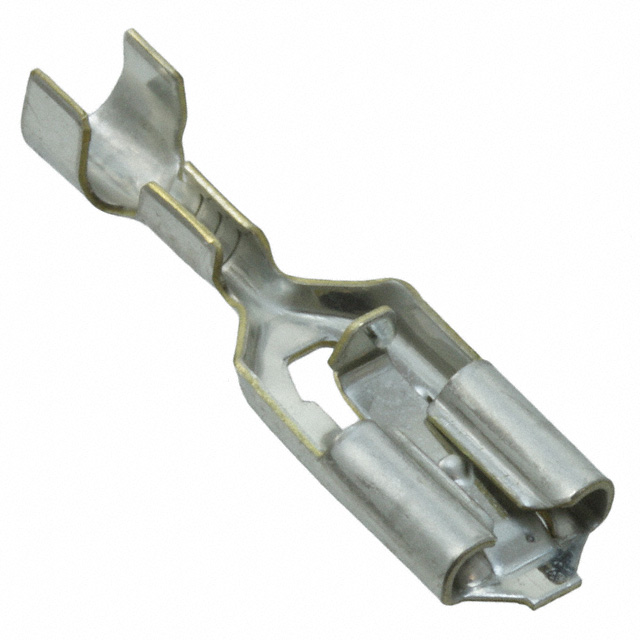

CONN QC RCPT 16-20AWG 0.187
| Part | Mounting Type | Gender | Insulation | Length - Overall [x] | Length - Overall [x] | Insulation Diameter [Max] | Insulation Diameter | Insulation Diameter [Min] | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish | Contact Material | Tab Length | Tab Length | Tab Width | Tab Width | Termination | Tab Thickness | Tab Thickness | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Female | Non-Insulated | 21.59 mm | 0.85 " | 0.134 in | 1.91 mm 3.4 mm | 0.075 in | 16 AWG | 20 AWG | Tin | Brass | 0.236 in | 6 mm | 4.75 mm | 0.187 in | Crimp | 0.02 " | 0.51 mm | Standard |
